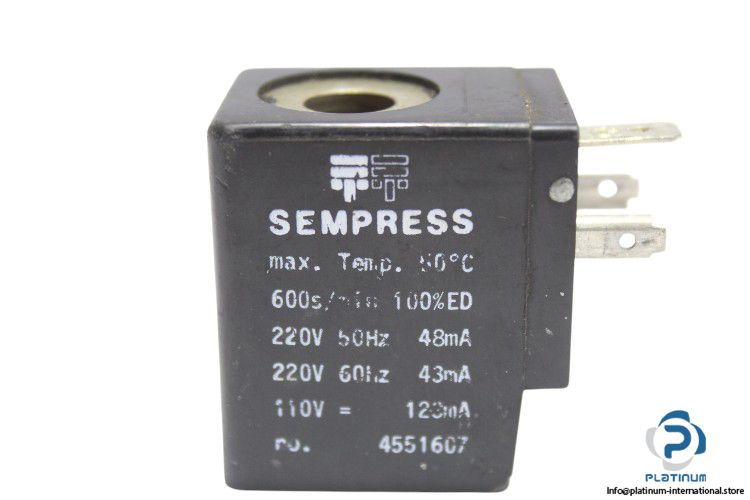

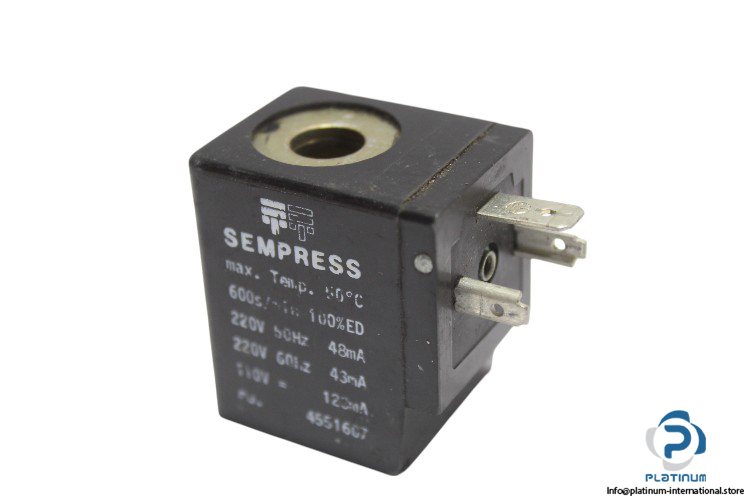

Sempress 4551607 Solenoid Coil
“ Designed for 220 V AC / 110 V DC power, this compact coil supports continuous duty with 3-pin connection, 600 s/min flow rate, and wide temperature tolerance.
Sempress 4551607 Solenoid Coil
The Sempress 4551607 is a high-performance solenoid coil engineered for continuous operation in pneumatic and hydraulic systems. Designed to support both AC and DC power, this coil provides stable and efficient actuation even under demanding industrial conditions.
Manufacturer: Sempress
Type: Solenoid Coil
Part No.: 4551607
| Power Supply | 220 V AC, 110 V DC |
| Frequency | 50/60 Hz |
| Current | 48 mA (AC 50 Hz), 43 mA (AC 60 Hz), 123 mA (DC) |
| Operation | 100% ED (Continuous Duty) |
| Electrical Connection | 3-pin |
| Inner Diameter | 9.5 mm “ 14.3 mm |
| Length | 24.2 mm |
| Flow Rate | 600 s/min |
| Max Ambient Temperature | 50 °C |
More From SEMPRESS

SEMPRESS
Sempress DVG 1 4 OR-0 Double Solenoid Valve
SKU: 1056868
Qty: 1

SEMPRESS

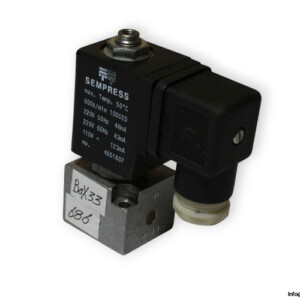

Sempress 4551607 Pneumatic Valve
