Sempress PA-D-O-MAE-O-63/200 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
SEMPRESS ISO Cylinder PA-D-O-MAE-O-63/200 is designed for compressed air applications with a 63 mm bore diameter, 200 mm stroke, and double operation mode. The cylinder features a male piston rod end and square shape for versatile industrial use.3/863AirboreCompressedconnectionCylinderDoubleEndGIndustrialISOmalemmOperationPA-D-O-MAE-O-63/200PistonPneumaticRODSempressShapeSquare
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

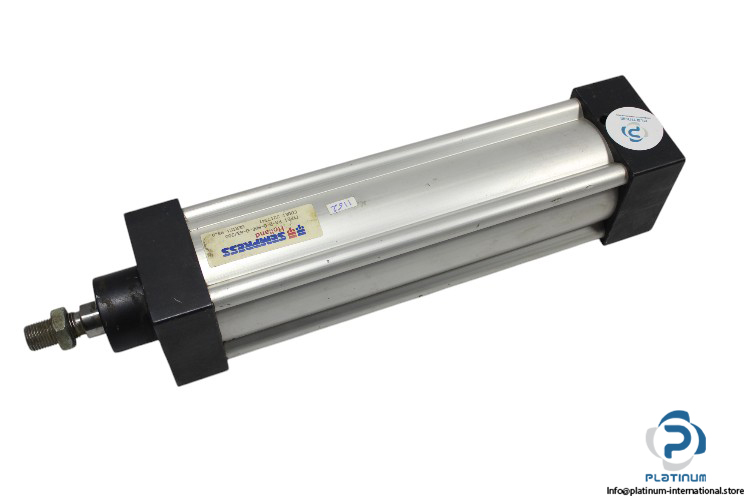

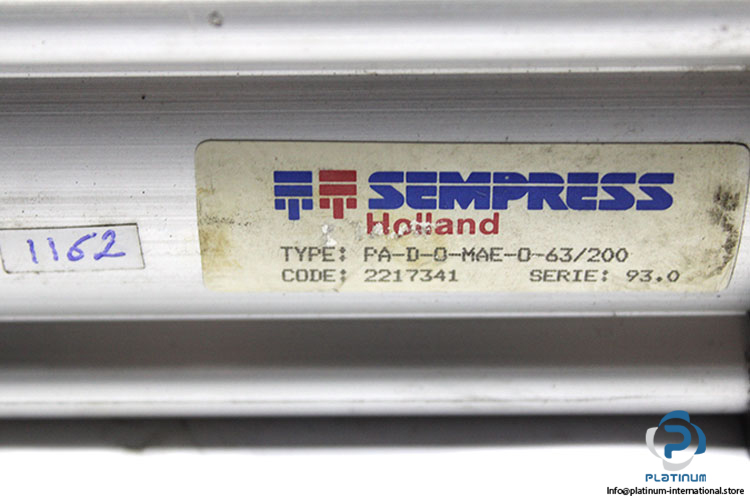

SEMPRESS ISO Cylinder PA-D-O-MAE-O-63/200
The SEMPRESS ISO Cylinder PADOMAEO63/200 is designed for high-performance applications involving compressed air. With a 63 mm bore diameter and 200 mm stroke, this cylinder is built for reliability and durability, offering precision in industrial operations. The square shape and male piston rod end make it suitable for a wide range of applications.
Manufacturer: SEMPRESS
Model: PA-D-O-MAE-O-63/200
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 200 mm
- Bore x Stroke: 63 x 200 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 77 x 353 mm
- Pneumatic Connection: G 3/8
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
