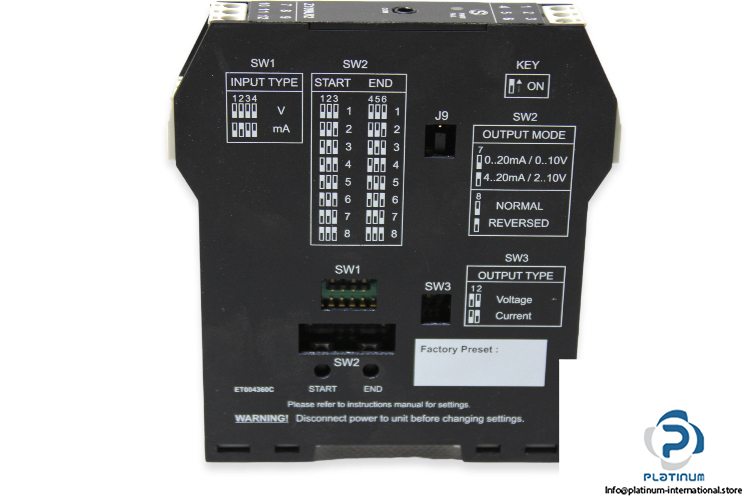

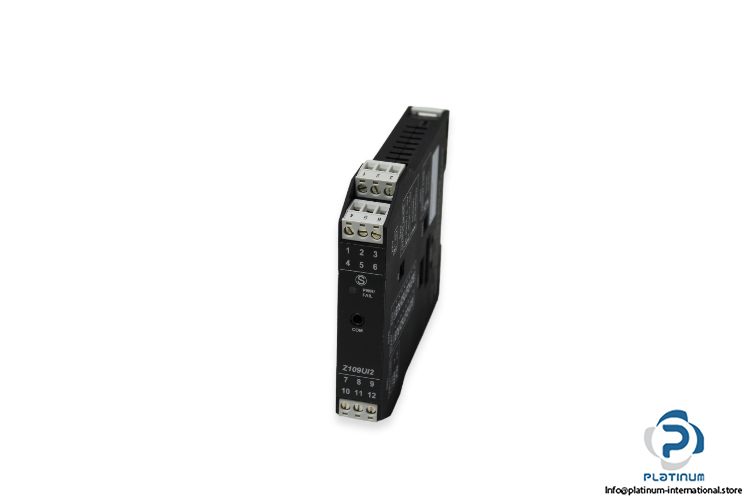

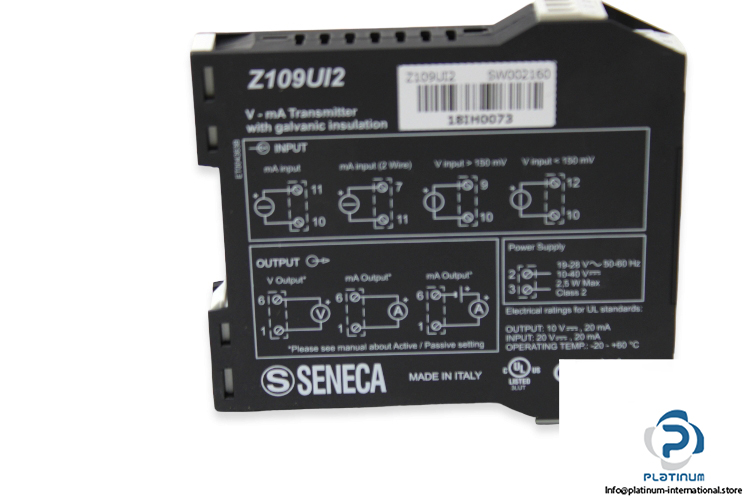

Seneca Z109UI2 Converter Module With Galvanic Insulation

Manufacturer: Seneca

Type: Converter Module with Galvanic Insulation

Model: Z109UI2

Supply voltage: 10 … 40 VDC, 19-28 VAC 50-60 Hz

Power consumption: 2.5 W MAX.

Input voltage: Bipolar from 100 mV up to 20 V in 9 scales, input impedance 1 MΩ

Current input: Bipolar up to 20 mA, input impedance 50Ω

Output: I: 0-20 / 4-20 mA, max load resistance 600Ω

V: 0-10 V / 2-10 V, min load resistance 2 kΩ

USB Interface: Micro USB connector (frontal panel)

Board terminals: Removable 3-way screw terminals: pitch 5.08mm, section 2.5mm2

Operating Temperature: -10 … +60 °C

Degree of Protection: IP20

Case material: PA6

Dimensions: 100 x 112 x 17.5 mm
