Sera R 409.1-150 Diaphragm Pump
Used
In stock1 unitReady to ship
899,99$
DIAPHRAGM PUMP
Sera R 409.1-150 Diaphragm Pump with adjustable flow rate up to 150 l/h³, 8 bar pressure capacity, ATB motor, and IP54 protection for industrial dosing applications.150409.1-1508ATBbarDiaphragmDosingflowFluidhandlingHydraulicIndustrialIP54L/HmotorPrecisionPressurepumpRSera
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

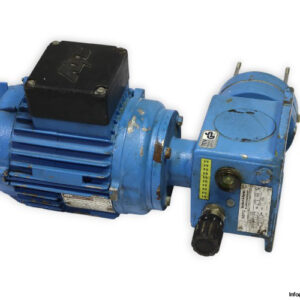

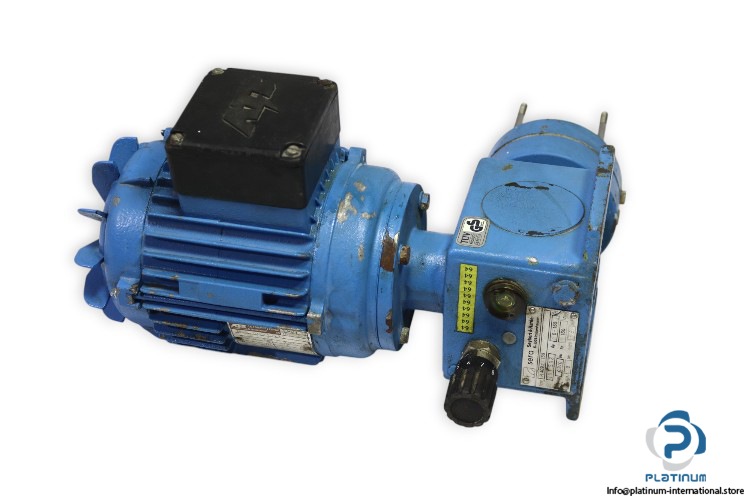

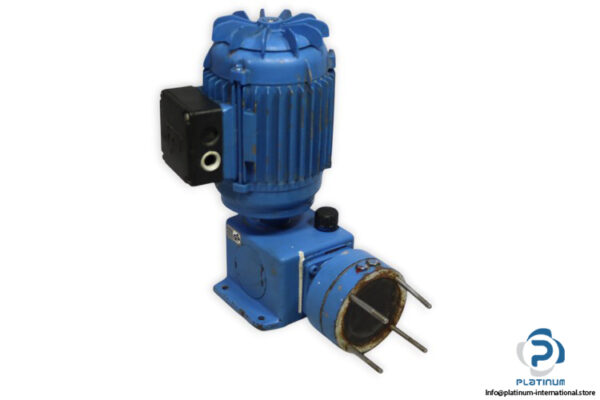

SERA R 409.1-150 DIAPHRAGM PUMP
The Sera R 409.1-150 Diaphragm Pump is a high-precision dosing pump designed for reliable fluid handling in industrial applications. With adjustable flow rates, high pressure capacity, and durable construction, it is suitable for demanding operations requiring consistent performance.

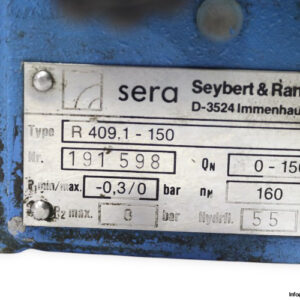

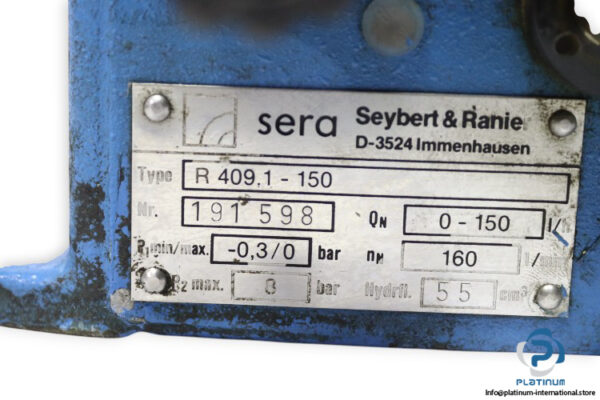

Manufacturer: Sera
Type: Diaphragm Pump
Model: R 409.1-150
Part No.: 191 598
Motor Specifications @ 50 Hz
Motor Specifications @ 60 Hz
| Pressure 1 (Min/Max) | -0.3 / 0 bar |
| Pressure 2 | 8 bar |
| Flow Rate | 0 to 150 l/h³ |
| Speed | 160 rpm |
| Hydraulic Volume | 55 cm³ |

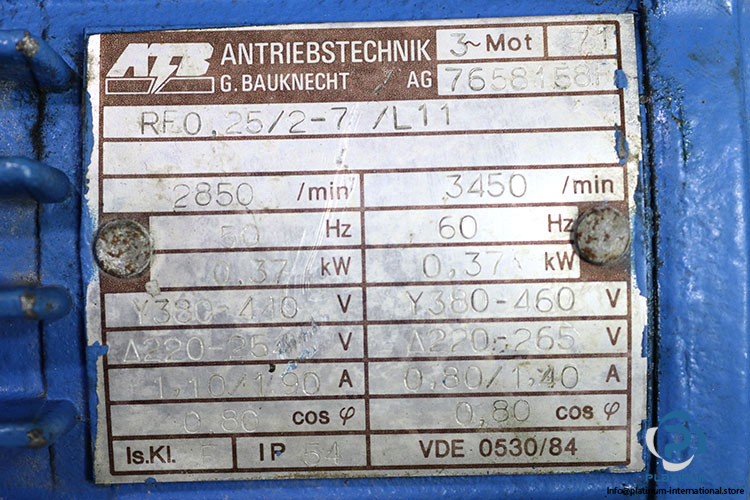

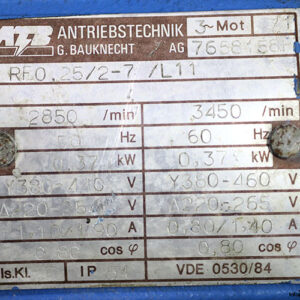

| Attachment | ATB RF0.25/2-7/L11 Motor |
| Attachment Part No. | 7658158H |
| Voltage | 380 to 440 V / 220 to 350 V |
| Current | 1.10 / 1.90 A |
| Power Factor | Cos 0.80 |
| Power | 0.37 kW |
| Speed | 2850 rpm |
| Voltage | 380 to 460 V / 220 to 265 V |
| Current | 0.80 / 1.40 A |
| Power Factor | Cos 0.80 |
| Power | 0.37 kW |
| Speed | 3450 rpm |
| IP Rate | IP54 |
