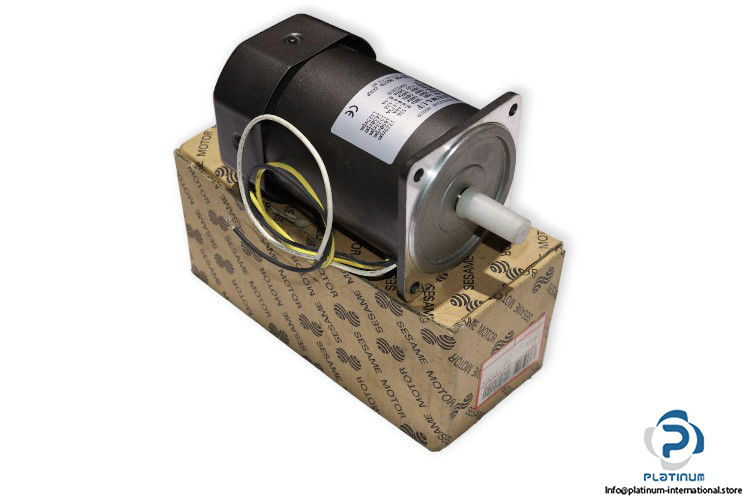

Sesame Motor 5IK90A-UF Induction Motor

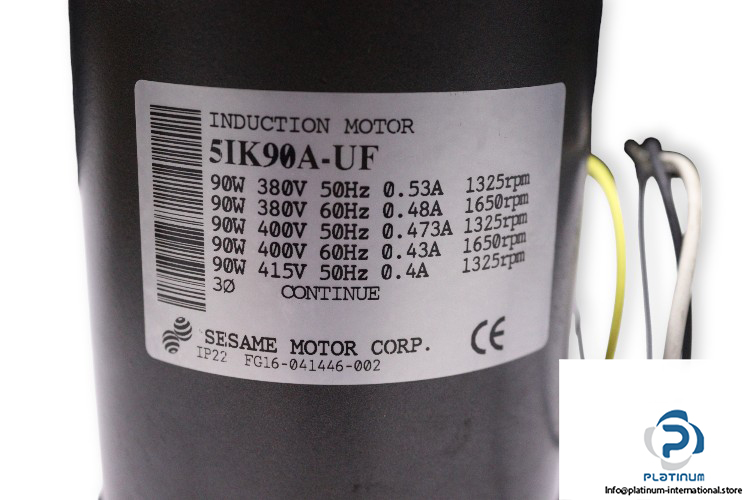

Manufacturer: SESAME MOTOR
Type: 3 phase Induction Motor
Model: 5IK90A-UF

Output Power: 90 W
Rated Time: Continuous
Gear Ratio: 3:200
Horse Power: 1/8 HP
Protection Class: IP 22
number of poles: 4 p
At Voltage 380 V
Frequency: 50-60 Hz
Rated Speed: 1325/1650 rpm
Starting Torque: 23.3/18.14 Kg.cm
Rated Torque: 6.3/5.3 Kg.cm
Rated Current: 0.53/0.48 A
At Voltage 400
Frequency: 50-60 Hz
Current: 0.473/0.43 A
Speed: 1325/1650 rpm
At voltage 415
Frequency: 50 Hz
Current: 0.4 A
Speed: 1325 rpm
