SEW DFT80N4/BMG/EV1A Geared Motor

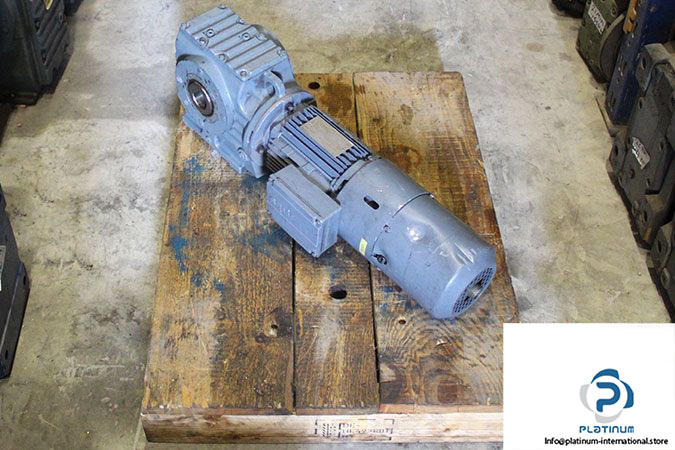

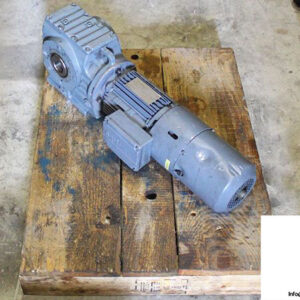

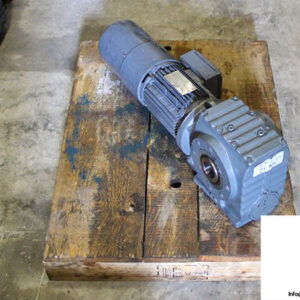

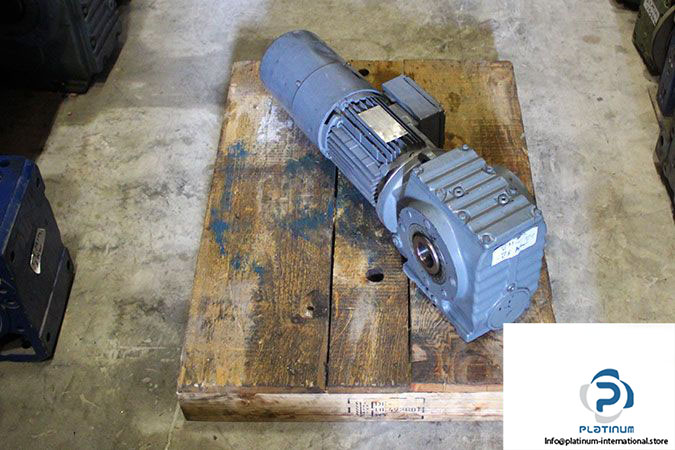

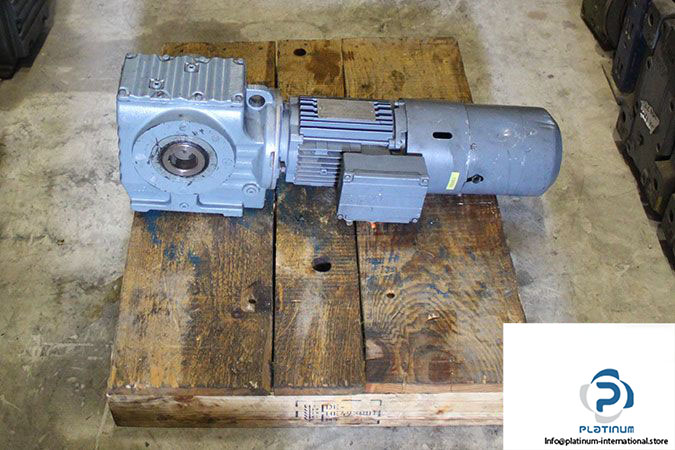

SEW-EURODRIVE DFT80N4/BMG/EV1A GEARED MOTOR WITH ENCODER

This high-efficiency SEW-Eurodrive geared motor is engineered for reliable and continuous operation in industrial environments. Designed with a flange-mounted DFT series motor and integrated RT Electronic I-58-I encoder, it ensures precise feedback, robust performance, and optimized drive control.

Manufacturer: SEW-Eurodrive
Type: Geared Motor
Model: DFT80N4/BMG/EV1A
Part No.: 01.3709948301.0004.04

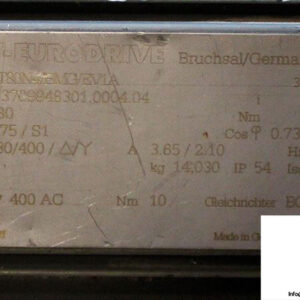

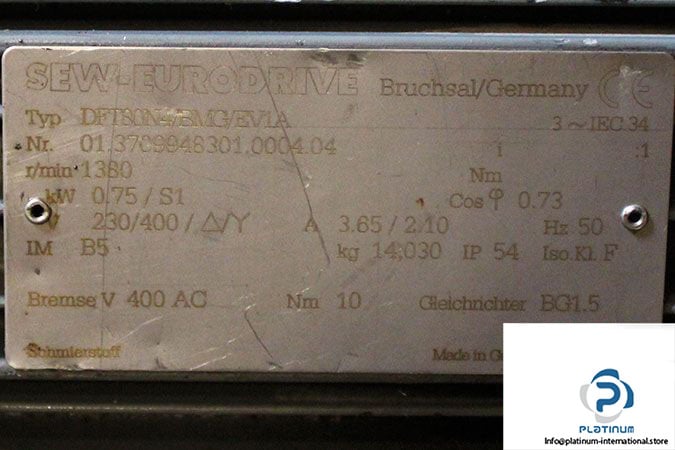

Motor Specifications

• Gear Unit: DFT80N4
• Mounting: Flange-mounted
• No. of Poles: 4
• Hollow Shaft Diameter: 40 mm
• Nominal Voltage (Delta): 230 V
• Nominal Voltage (Star): 400 V
• Rated Current (Delta): 3.65 A
• Rated Current (Star): 2.1 A
• Rated Power: 0.75 kW
• Output Speed: 1380 r/min
• Frequency: 50 Hz
• Power Factor: 0.73
• Operating Mode: S1 (Continuous Duty)
• Insulation Class: F
• Degree of Protection: IP54

Motor Options

• Max. Braking Torque: 10 Nm
• Brake Rectifier: BG1.5
• Braking Voltage: 400 V
• Noise-Reduced Brake

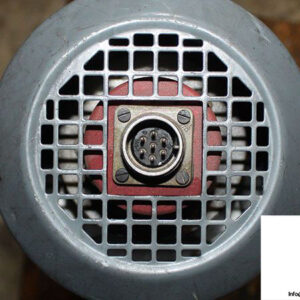

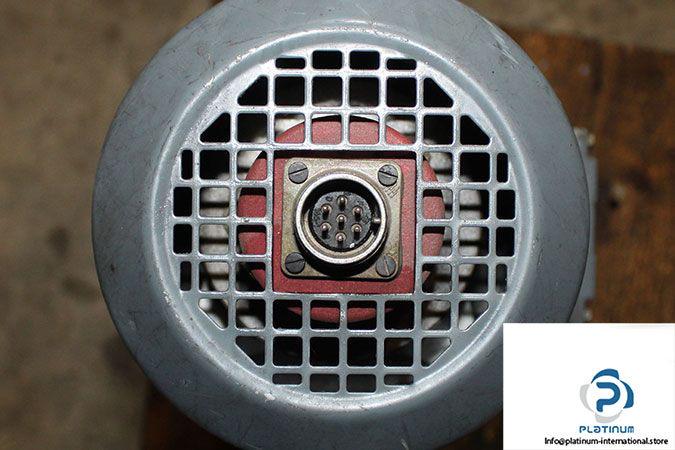

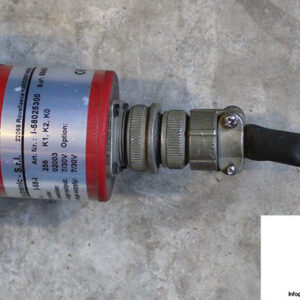

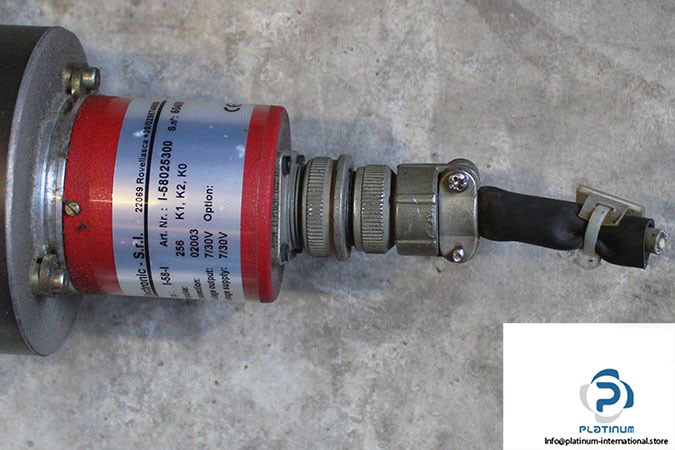

• Incremental Encoder: RT Electronic I-58-I
• All Solid Shafts
• Hardware Less Encoder

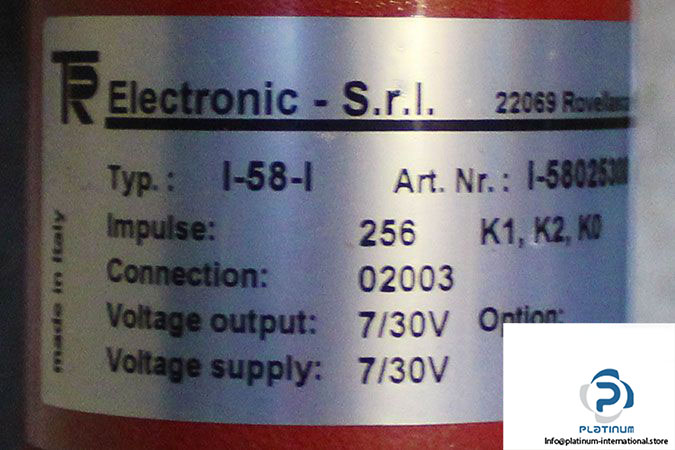

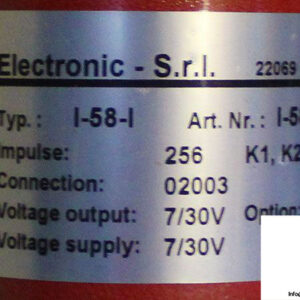

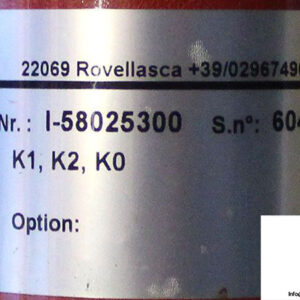

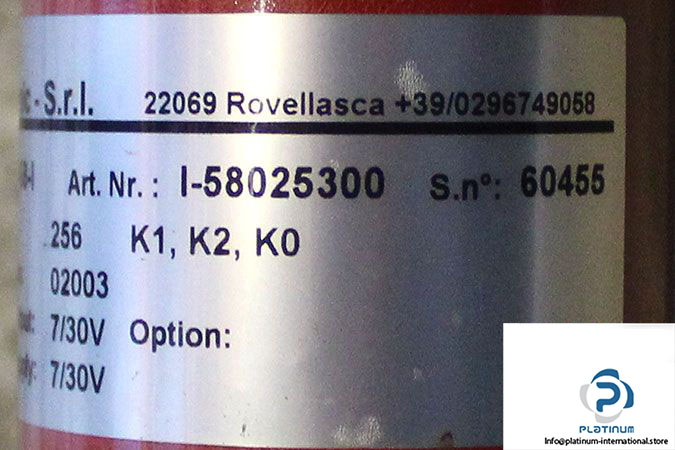

Encoder Specifications

• Manufacturer: RT Electronic
• Model: I-58-I
• Article No.: I-58025300
• Serial No.: 60455
• Impulse: 256
• Connection: 02003
• Voltage Input: 7 / 30 V
• Voltage Output: 7 / 30 V
