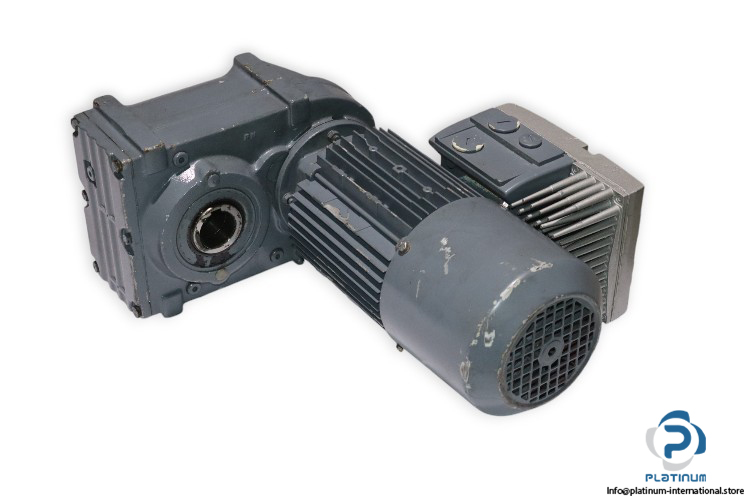

SEW FA47/G DT80K4/BMG/HR/MM05 Parallel-Shaft Helical Gearmotor

SEW Parallel-Shaft Helical Gearmotor FA47/G DT80K4/BMG/HR/MM05

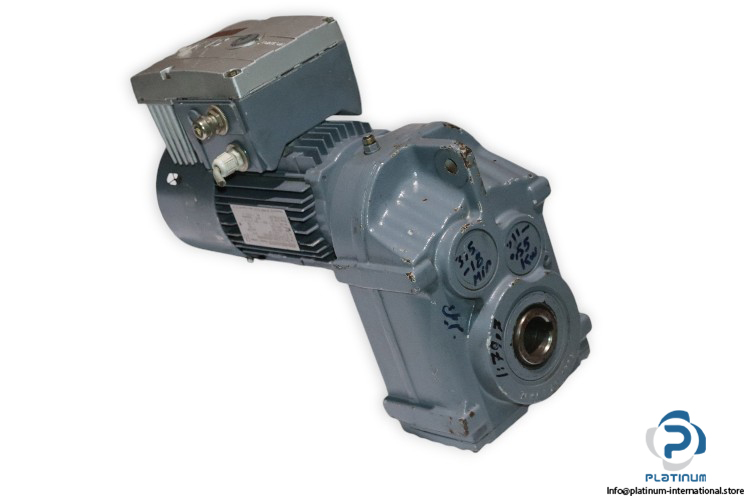

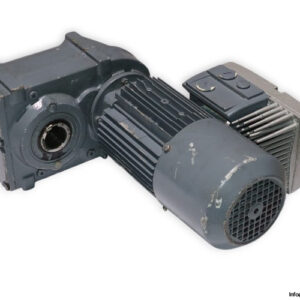

The SEW FA47/G DT80K4/BMG/HR/MM05 is a high-performance parallel-shaft helical gearmotor designed for industrial applications requiring precise torque and speed control. Built with durable materials and an integrated SEW MM05C-503-00 MOVIMOT Inverter Drive, this gearmotor ensures seamless operation and energy efficiency.

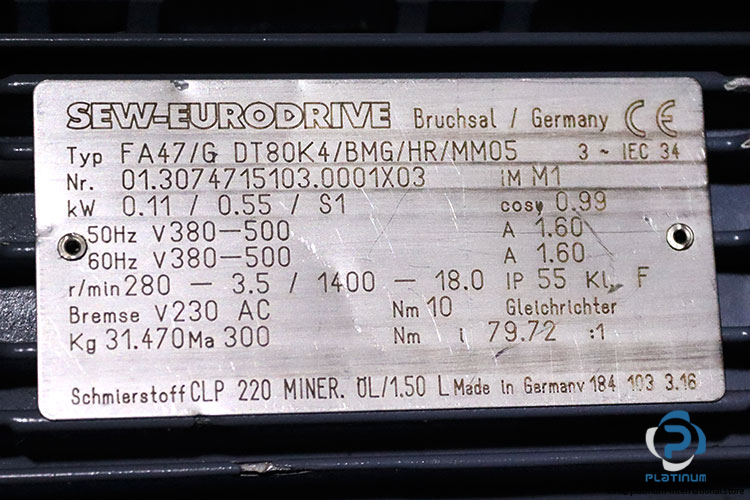

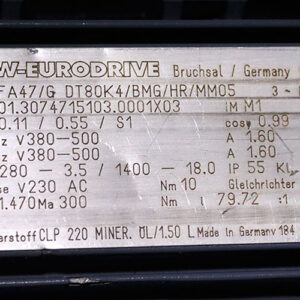

Technical Specifications:

Gear Unit Specifications:

• Model: FA47/G
• Speed (50Hz) [r/min]: 280 – 1400
• Output Speed [r/min]: 3.5 – 18.0
• Total Ratio: 79.72
• Output Torque [Nm]: 300
• Service Factor SEW-FB: 1.35
• Mounting Position: M1
• Lubricant Volume [L]: 1.50
• Hollow Shaft: 35mm
• Design: Hollow Shaft

Motor Specifications:

• Motor Power [kW]: 0.11 / 0.55
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor (S1-S10): S1
• Multi Range Voltage (50Hz) [V]: 380 – 500
• Multi Range Voltage (60Hz) [V]: 380 – 500
• MM Rated Main Current [A]: 1.60
• MM Rated Output Current [A]: 2.00
• Thermal Class / Enclosure [IP]: (F) / 55
• Brake Voltage [V] / Torque [Nm]: 230 AC / 10
• Multi Range Voltage Brake [V]: 230 AC

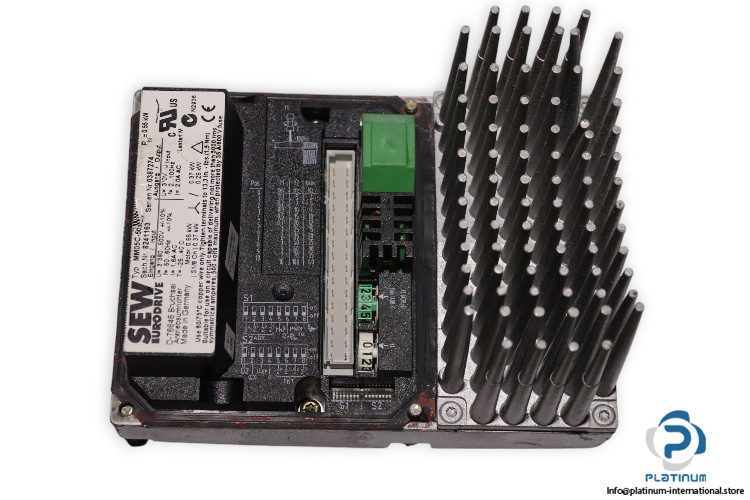

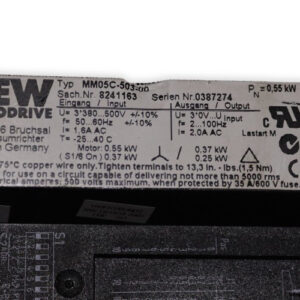

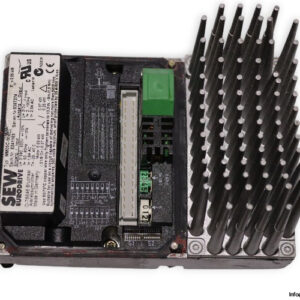

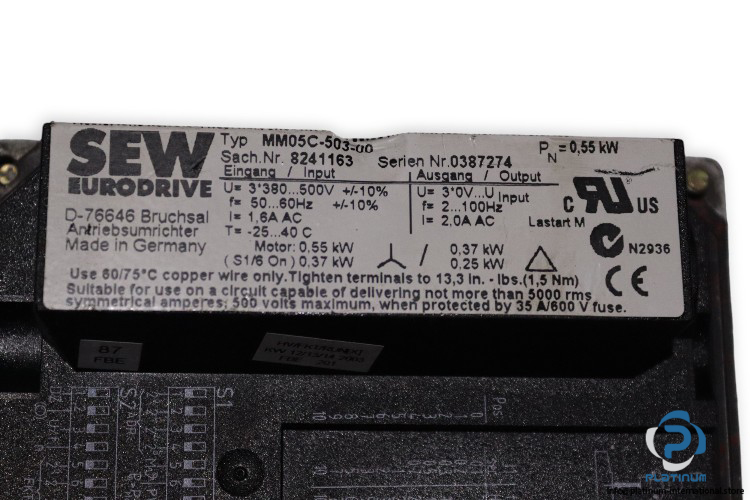

Inverter Drive (SEW MM05C-503-00 MOVIMOT) Specifications:

Input:

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.6 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 2 A
• Frequency Range: 2 to 100 Hz

The SEW FA47/G DT80K4/BMG/HR/MM05 gearmotor, combined with the integrated MOVIM
