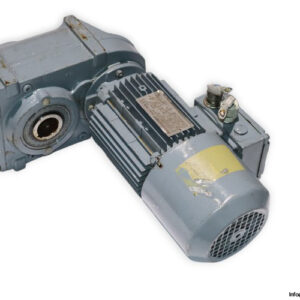

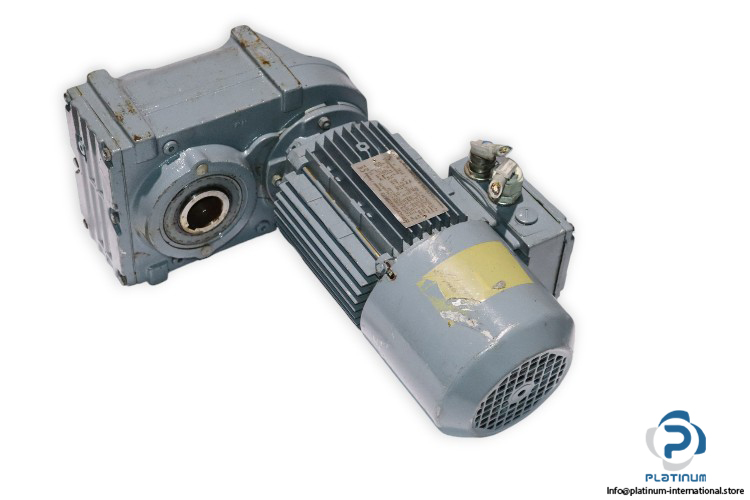

SEW FA47/G DT80K4/BMG/HR/TH Parallel-Shaft Helical Gearmotor

SEW FA47/G DT80K4/BMG/HR/TH PARALLEL-SHAFT HELICAL GEARMOTOR

The SEW FA47/G DT80K4/BMG/HR/TH Parallel-Shaft Helical Gearmotor is a robust and efficient solution for industrial applications. It offers high-performance power transmission with a total ratio of 21.82, 0.55 kW motor power, and 35 mm hollow shaft, designed to meet demanding operational requirements.

Manufacturer: SEW

Type: PARALLEL-SHAFT HELICAL GEARMOTOR

Model: FA47/G DT80K4/BMG/HR/TH

Part No: 01.3074715101.0001.03

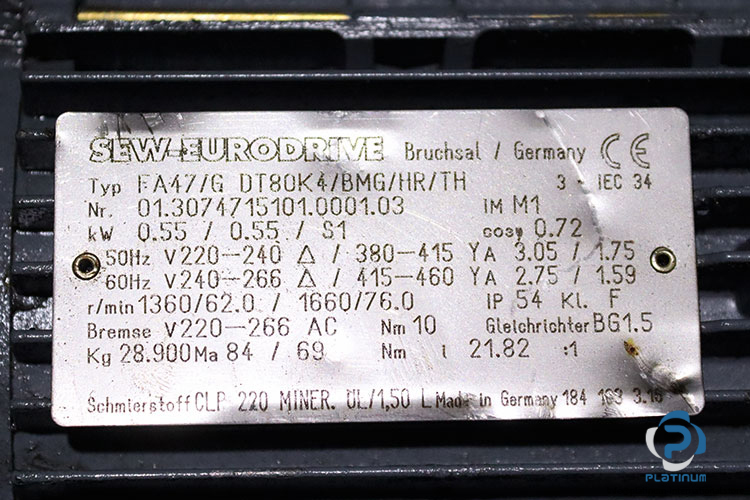

Technical Specifications

• Gear Unit: FA47/G
• Input Speed [r/min]: 1360 / 62.0
• Output Speed [r/min]: 1660 / 76.0
• Total Ratio: 21.82
• Mounting Position: M1
• Output Torque [Nm]: 84 / 69
• Service Factor SEW-FB: 4.70 / 5.80
• Hollow Shaft: 35 mm
• Design: Hollow shaft
• Lubricant Volume [l]: 1.50
• Motor Power [kW]: 0.55 / 0.55
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor S1-S10: S1
• Motor Voltage [V] / Connection Type: 230/400 delta/star
• Multi Range-Voltage 50Hz [V]: 220-240 delta / 380-415 star
• Nominal Current [A]: 3.05 / 1.75
• Multi Range-Voltage 60Hz [V]: 240-266 delta / 415-460 star
• Nominal Current [A]: 2.75 / 1.59
• Thermal Class [°C] / Enclosure [IP]: F / 54
• Brake Voltage [V] / Torque [Nm]: 230 AC / 10
• Multi Range-Voltage Brake [V]: 220-266 AC
• Brake Rectifier: BG1.5
