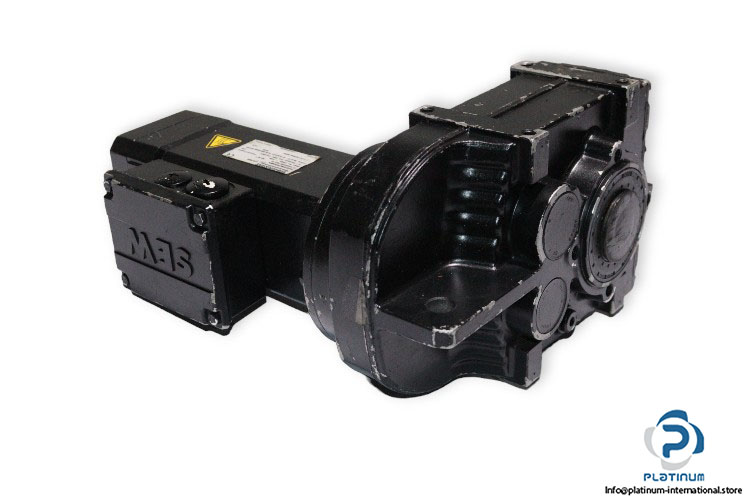

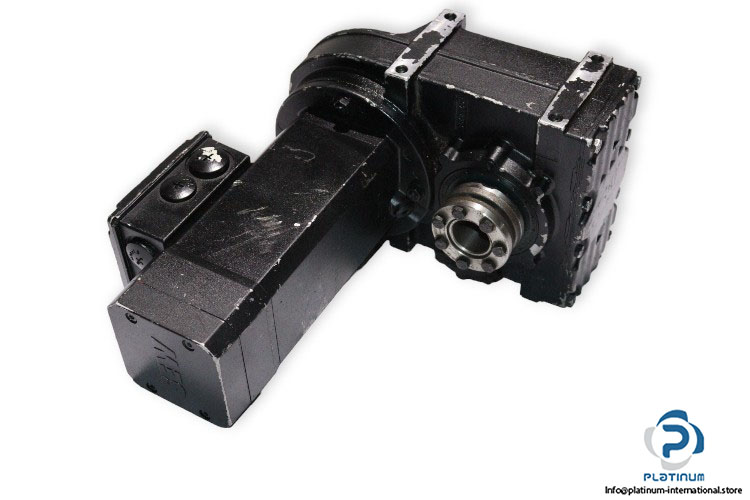

SEW FH27B DS56L/TF/RH1M/KK Parallel Shaft Helical Gear Unit

Sew-Eurodrive FH27B DS56L/TF/RH1M/KK Parallel Shaft Helical Gear Unit

The Sew-Eurodrive FH27B DS56L/TF/RH1M/KK is a high-performance parallel shaft helical gear unit designed for industrial applications requiring robust torque and reliable operation. With a high input speed and output torque, it delivers efficient power transmission and is equipped with a hollow shaft for versatile mounting options.

Manufacturer: Sew-Eurodrive

Type: Parallel Shaft Helical Gear Unit

Model: FH27B DS56L/TF/RH1M/KK

Part No.: 01.1356855002.0001.10

Ref No.: 13339303

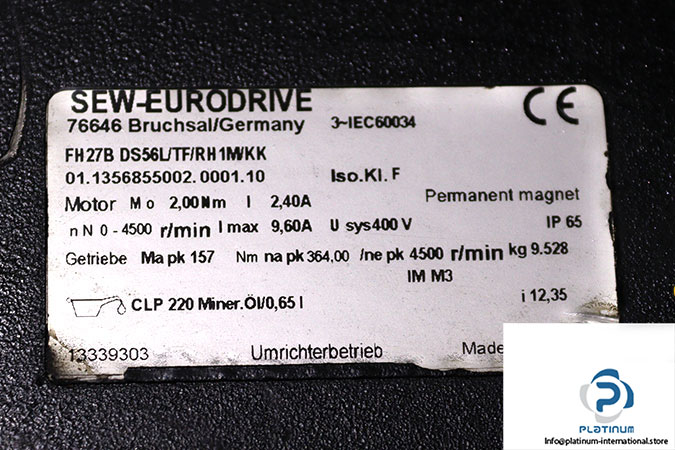

Technical Data:

• Speed [r/min]: 4500 / 364
• Total Ratio [i]: 12,35 / Infinite
• Mounting Position: M3
• Lubricant / Volume [l]: CLP 220 Mineral Oil / 0.65
• Input Speed [nepk]: 4500 rpm
• Output Speed [napk]: 364 min-1
• Output Torque [Mapk]: 157 Nm
• Hollow Shaft: 25 mm
• Design: Foot-mounted version and hollow shaft with shrink disc
• Rated Speed [nN]: 4500 rpm
• Standstill Torque [M0]: 2.00 Nm
• Max. Limit Torque [Mpk]: 7.60 Nm
• I0 Standstill Current [A]: 2.40 A
• Max. Permitted Current [Imax]: 9.60 A
• Cyclic Duration Factor [S1-S10]: S1
• Motor Voltage [V]: 400 V
• Max. Permitted Frequency [Hz]: 225 Hz
• Thermal Class / Enclosure [IP]: F / 65
