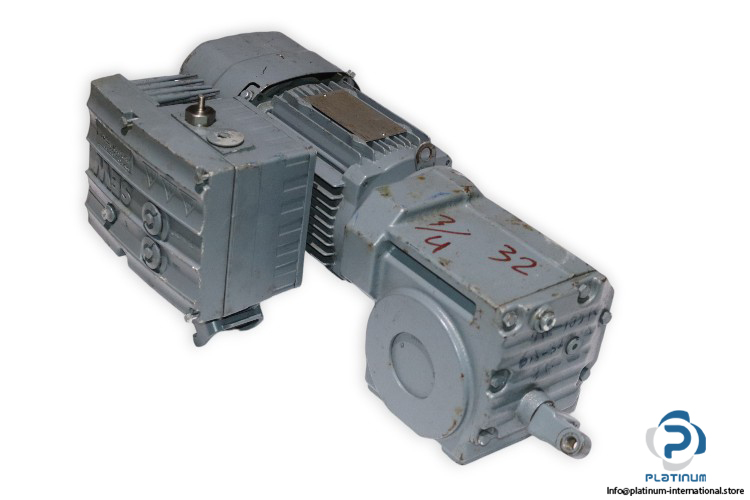

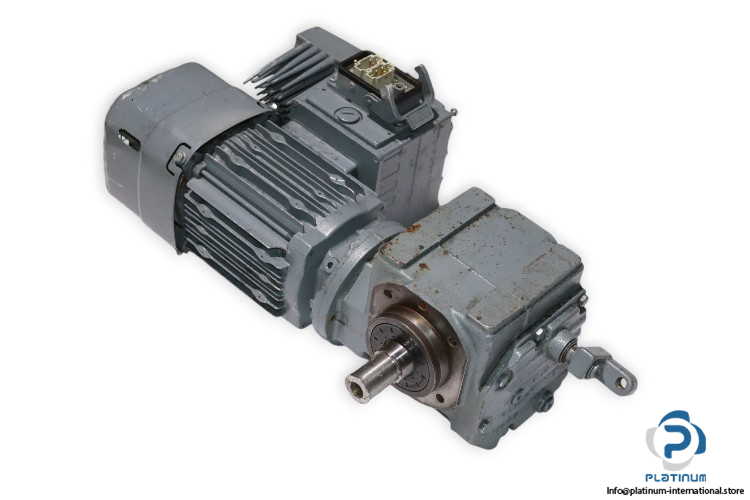

SEW HS41 DRS71M4BE1_MM05_AMA6 Gear Motor

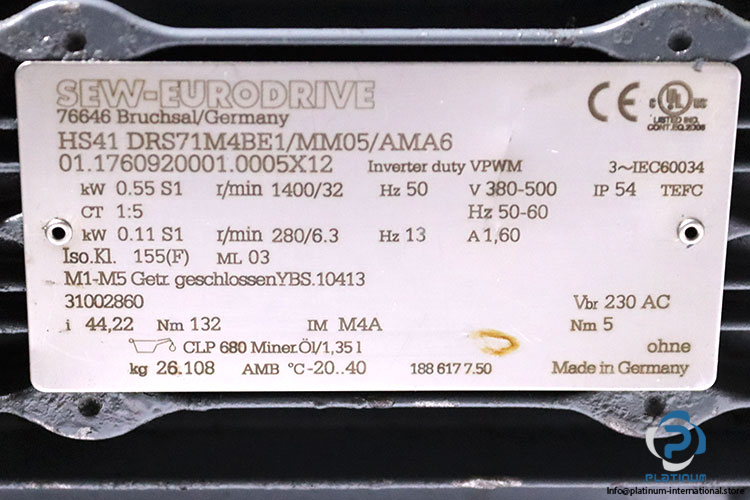

Model: HS41 DRS71M4BE1/MM05/AMA6
Manufacturer: Sew-Eurodrive
Type: Gear Motor
Model: HS41 DRS71M4BE1/MM05/AMA6
Part Number: 01.1760920001.0005X12
Inverter Type: MM05C-503-00
Gear Unit: HS41
Input Speed (r/min): 1400-280
Output Speed (r/min): 32-6,3
Total Ratio (i): 44,22
Output Torque (Nm): 132
Service Factor SEW-FB: 1,35
Mounting Position: M4A
Lubricant / -Volume (l): CLP 680 Miner.Oil / 1,35
Motor Power (kW): 0,55/0,11
Motor Frequency (Hz): 50
Cyclic Duration Factor: S1
Setting range (CT): 1:5
Motor frequency min. [Hz]: 13
Motor Voltage (V): 380-500
MM Rated Main Current (A): 1,6
MM Rated OP Current (A): 2,0
Thermal class/Enclosure (IP): 155(F)/54
Brak: BE1
Brake voltage [V]/-torque [Nm]: 230 AC / 5
Brake rectifier: without

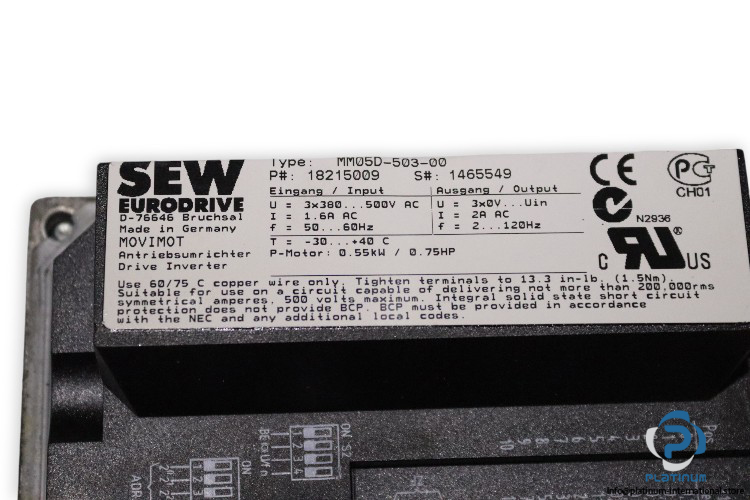

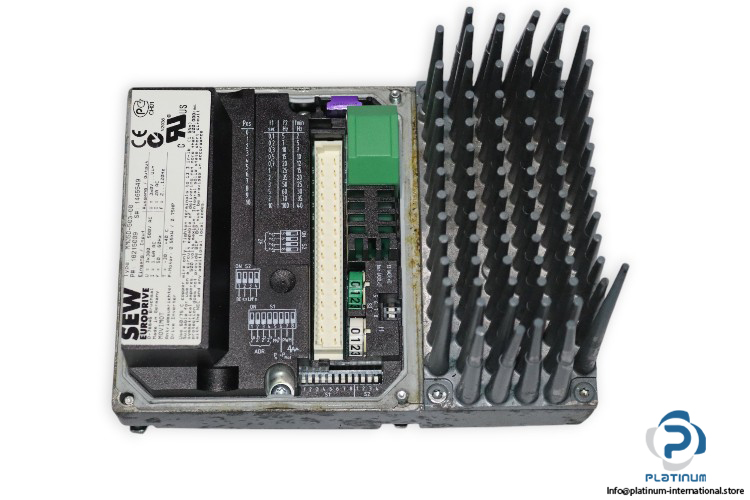

Inverter Type: MM05D-503-00
System: FREQUENCY INVERTER
Motor Power (Kw): 0.55
Rated Voltage Input (V): 3X380-500 +/-10%
Rated Current Input (A): 1.6
Frequency Input (Hz): 50-60
Ambient Temperature Inverter (°C): -30 – 40
Rated Voltage Output (V): 3×0 – U input
Rated Current Output (A): 2
Frequency Output (Hz): 2-120
