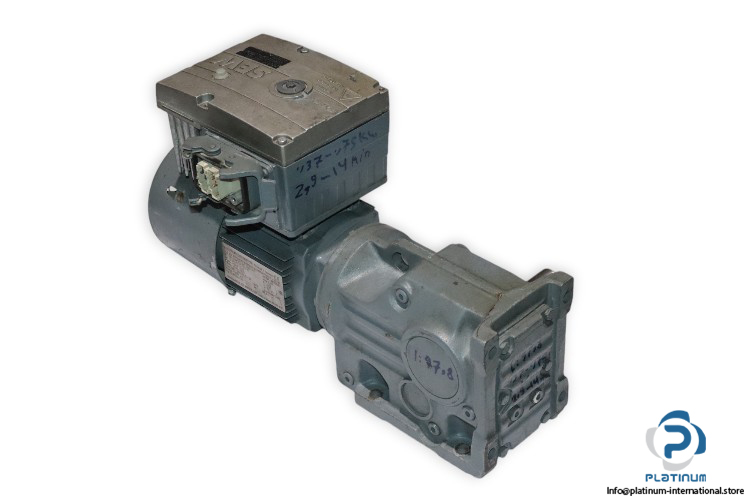

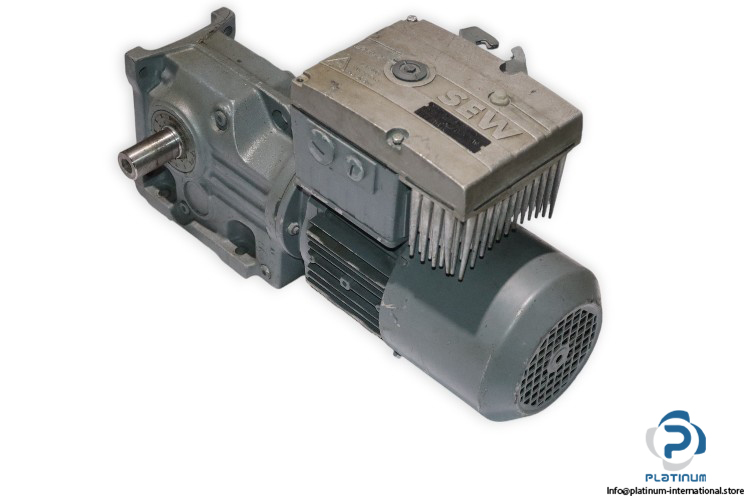

SEW K37 DT71D4/BMG/HR/MM03/RE1A/AMA6/AVR1/AX Helical- Bevel Gearmotor

In stock1 unitReady to ship

helical-bevel gearmotor

The SEW K37 DT71D4/BMG/HR/MM03/RE1A/AMA6/AVR1/AX Helical-Bevel Gearmotor provides precise power transmission with a 97.81 ratio, 245 Nm output torque, and a foot-mounted design for efficient operation in industrial applications.

Manufacturer
SEW
SKU
1054720
Category
Gear Motors
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

SEW K37 DT71D4/BMG/HR/MM03/RE1A/AMA6/AVR1/AX HELICAL-BEVEL GEARMOTOR

The SEW K37 DT71D4/BMG/HR/MM03/RE1A/AMA6/AVR1/AX Helical-Bevel Gearmotor is designed for high-performance applications, combining reliable power transmission with efficient operation. This gearmotor features a total ratio of 97.81 and an output torque of 245 Nm, making it ideal for demanding industrial environments.

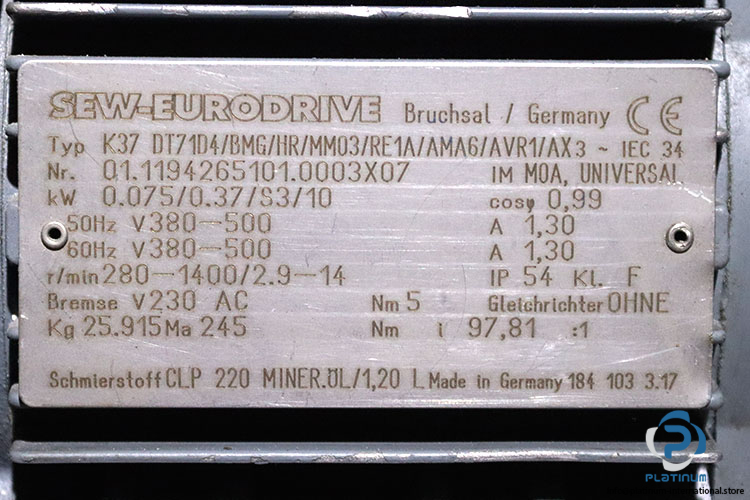

Manufacturer: SEW

Type: HELICAL-BEVEL GEARMOTOR

Model: K37 DT71D4/BMG/HR/MM03/RE1A/AMA6/AVR1/AX

Part No: 01.1194265101.0003X07

Technical Specifications

  • Gear Unit: K37
  • Input Speed [r/min]: 280 – 1400
  • Output Speed [r/min]: 2.9 – 14
  • Total Ratio: 97.81
  • Mounting Position: M0A
  • Output Torque [Nm]: 245
  • Service Factor SEW-FB: 0.80
  • Output Shaft End: Part no. 00455091, 28×50 shaft material 42CrMoS4+QT
  • Design: Foot-mounted version
  • Motor Power [kW]: 0.075 / 0.37
  • Motor Frequency [Hz]: 50
  • Cyclic Duration Factor S1-S10: S3/10
  • Multi Range-Voltage 50Hz [V]: 380-500
  • MM Rated Main Current [A]: 1.30
  • Multi Range-Voltage 60Hz [V]: 380-500
  • MM Rated O/P Current [A]: 1.60
  • Thermal Class [°C] / Enclosure [IP]: F / 54
  • Brake Voltage [V] / Torque [Nm]: 230 AC / 5

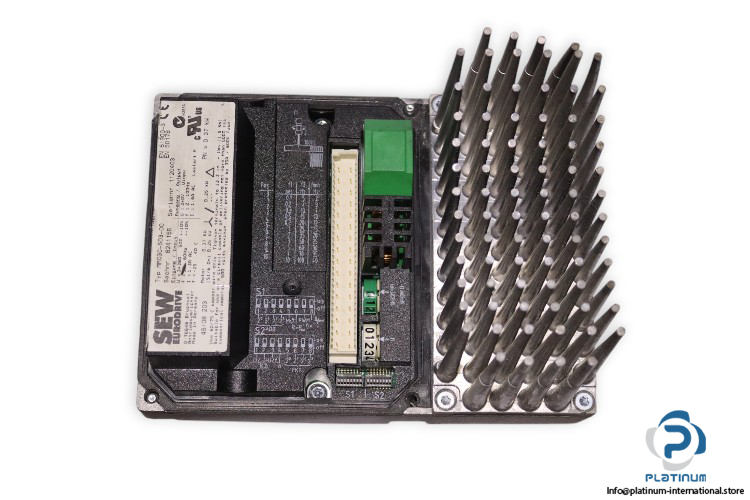

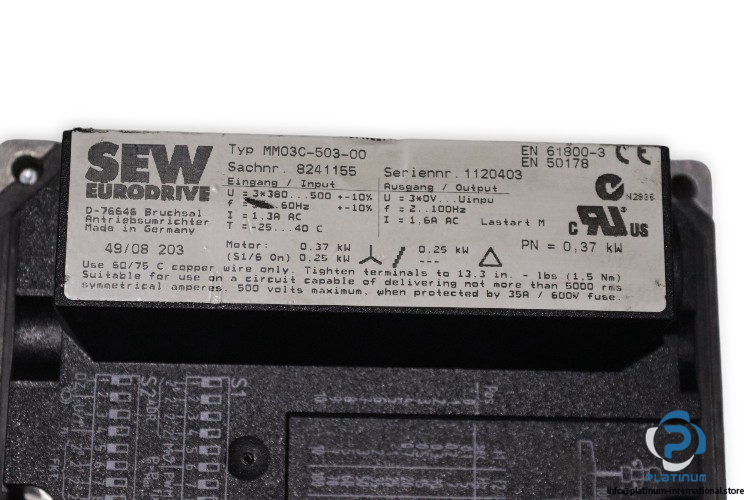

Attached with: SEW MM03C-503-00 MOVIMOT INVERTER DRIVE

Input Specifications:

  • Supply Voltage: 3-Phase 380 to 500 V AC
  • Rated Current: 1.3 A
  • Frequency: 50 / 60 Hz

Output Specifications:

  • Rated Voltage: 3-Phase 0 / 380 to 500 V AC
  • Rated Current: 1.6 A
  • Frequency: 2 / 100 Hz
