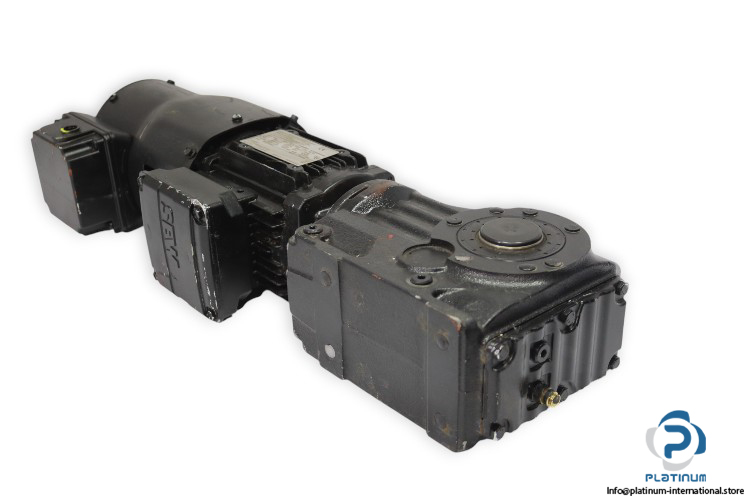

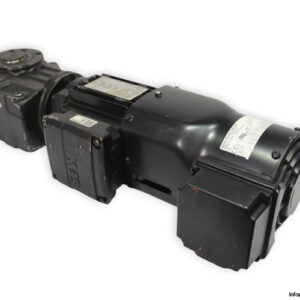

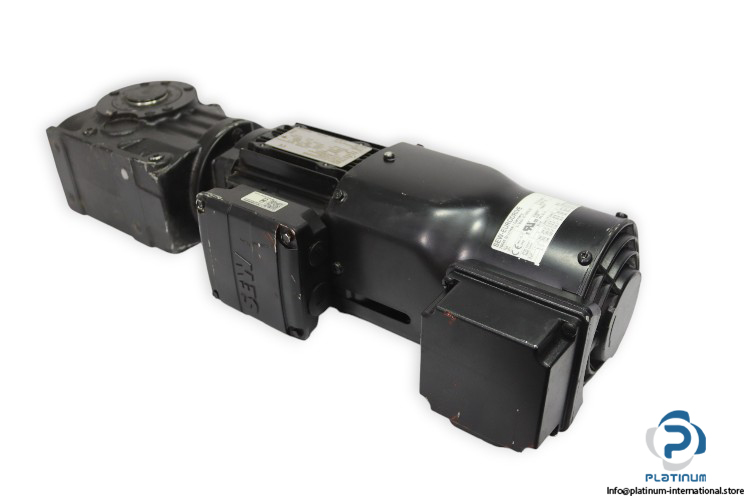

SEW KA37 DRL71M4/TH/ES7S/V Bevel-Helical Gearmotor
1 099,99$
GEARMOTOR
SEW KA37 DRL71M4/TH/ES7S/V bevel-helical gearmotor with 230 Nm output torque, 58.60 ratio, 400 V supply, 7 A current, IP66 protection, and continuous duty rating.SEW KA37 DRL71M4/TH/ES7S/V Bevel-Helical Gearmotor
The SEW KA37 DRL71M4/TH/ES7S/V is a high-performance bevel-helical gearmotor designed for demanding industrial applications. With robust torque output, reliable thermal protection, and durable construction, it ensures efficient and precise power transmission. Integrated with SEW-EURODRIVE cooling fan and mineral oil lubrication, it is built for long-term operation under continuous duty.
Manufacturer: SEW
Type: Bevel-helical Gearmotor
Model: KA37 DRL71M4/TH/ES7S/V
Part No.: 01.8038310004.0001X21
Code: 188 507 3 DE / 30146091
Motor Data
Speeds
Torque
Brake
Lubrication
Mounting & Temperature
Attachment

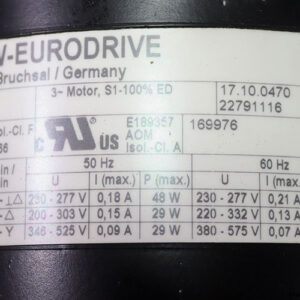

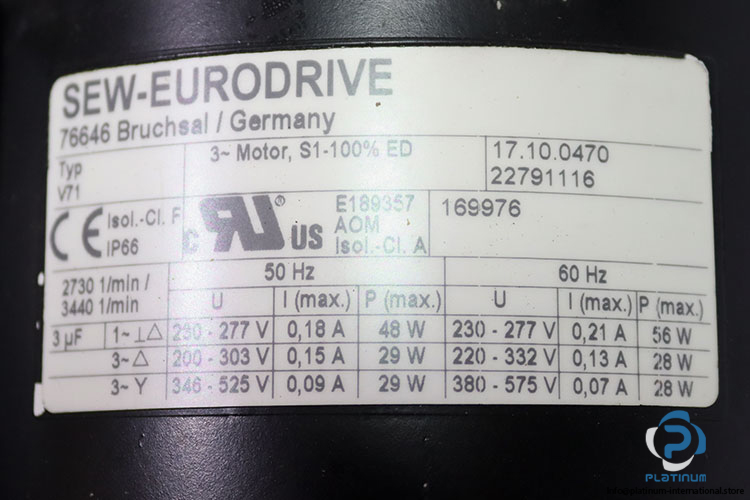

SEW-EURODRIVE V71 Cooling Fan (3-phase)
Speed
Operating Voltage / Power
@ 50 Hz:
1~ Delta 230“277 V, 0.18 A, 48 W
3~ Delta 200“303 V, 0.15 A, 29 W
3~ Star 346“525 V, 0.09 A, 29 W
@ 60 Hz:
1~ Delta 230“277 V, 0.21 A, 56 W
3~ Delta 220“332 V, 0.13 A, 28 W
3~ Star 380“575 V, 0.07 A, 28 W

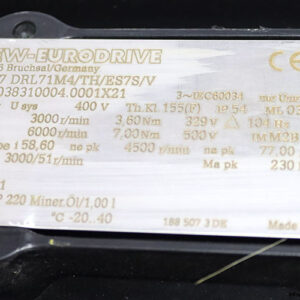

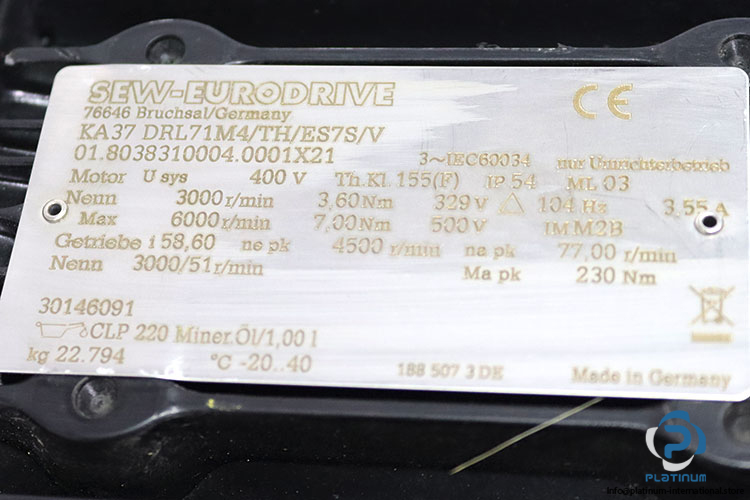

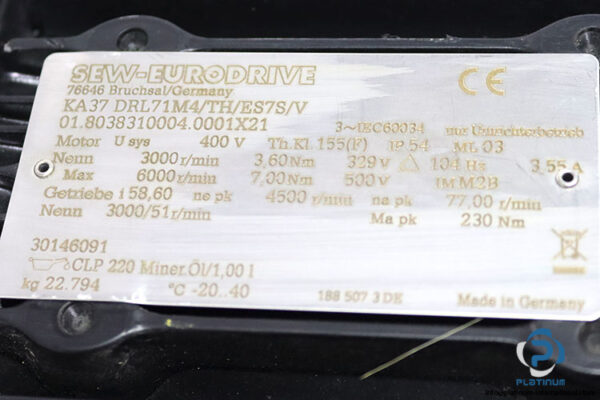

Other Data
| Voltage | 400 V / 329,500 V |
| Current | 3.55 A |
| Frequency | 104 Hz |
| Thermal Class | 155 (F) |
| Protection | IP54 |
| Motor Speed | 3000 rpm |
| Max Motor Speed | 6000 rpm |
| Gearbox Speed | 3000 / 51 rpm |
| Ratio | 58.60 |
| Nominal | 3.60 Nm |
| Maximum | 7.00 Nm |
| Output Torque | 230 Nm |
| Gearbox Input Speed Limit | 4500 rpm |
| Volume | 1 L |
| Mounting | IMM2B |
| Operating Temperature | -20 °C to +40 °C |
| Codes | 17.10.0470 / 22791116 / 169976 |
| 50 Hz | 2730 rpm |
| 60 Hz | 3440 rpm |
| Insulation Class | F |
| Protection | IP66 |
| Duty | S1 “ 100% ED |
