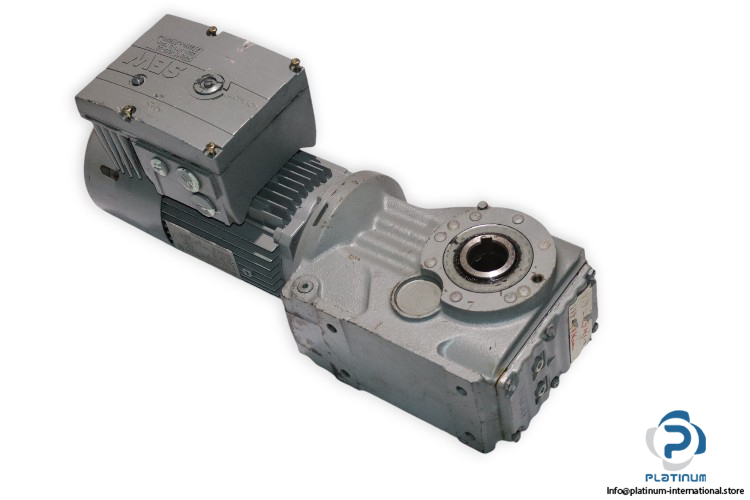

SEW KA47/T DT80N4/BMG/HR/TH/MM07 Bevel-Helical Gear Motor

SEW KA47/T DT80N4/BMG/HR/TH/MM07 BEVEL-HELICAL GEAR MOTOR

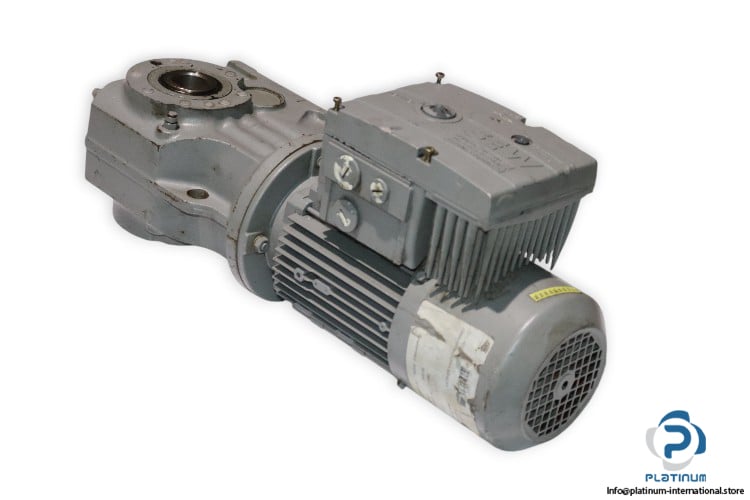

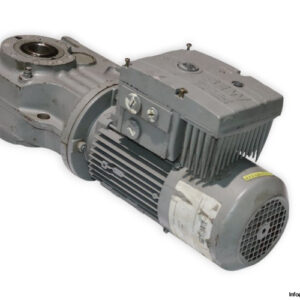

The SEW KA47/T DT80N4/BMG/HR/TH/MM07 Bevel-Helical Gear Motor is a high-performance solution designed for industrial applications. With a 56.83 total ratio and output torque of 290 Nm, this gear motor ensures efficient power transmission. It comes with the SEW MM07C-503-00 MOVIMOT Inverter Drive for versatile speed and control adjustments.

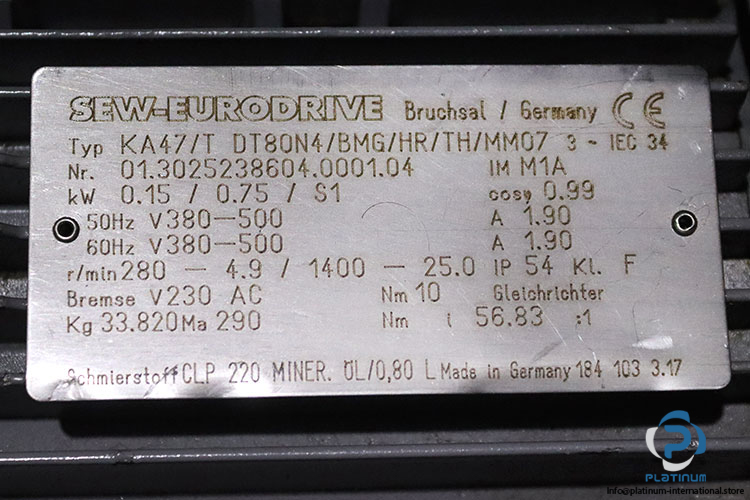

Manufacturer: SEW

Type: Bevel-helical Gear Motor

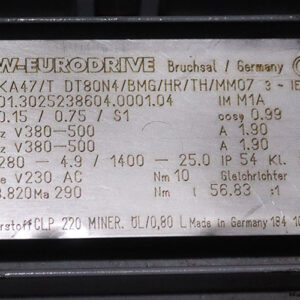

Model: KA47/T DT80N4/BMG/HR/TH/MM07

Part No.: 01.3025238604.0001.04

Technical Specifications

• Gear Unit: KA47/T
• Input Speed (r/min): 280-1400
• Output Speed (r/min): 4.9-25
• Total Ratio (i): 56.83
• Output Torque (Nm): 290
• Service Factor SEW-FB: 1.4
• Mounting Position: M1A
• Lubricant / Volume (l): CLP 220 0.8
• Hollow Shaft (mm): 35
• Design: Hollow Shaft
• Motor Power (kW): 0.15 / 0.75
• Motor Frequency (Hz): 50
• Cyclic Duration Factor: S1
• Motor Voltage 50Hz (V): 380-500
• Motor Voltage 60Hz (V): 380-500
• MM Rated Main Current (A): 1.9
• MM Rated OP Current (A): 2.5
• Thermal Class/Enclosure (IP): F/54
• International Efficiency Class: IEC34-1
• Ambient Temperature Motor (°C): -25 BIS +40
• Acc. feat. brake/brake release: BMG / HR manual brake release self-reengaging
• Brake Voltage [V] / Torque (Nm): 230 AC / 10

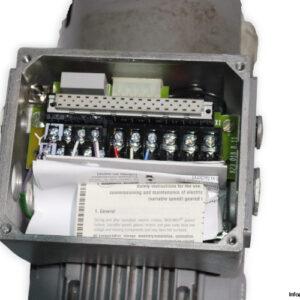

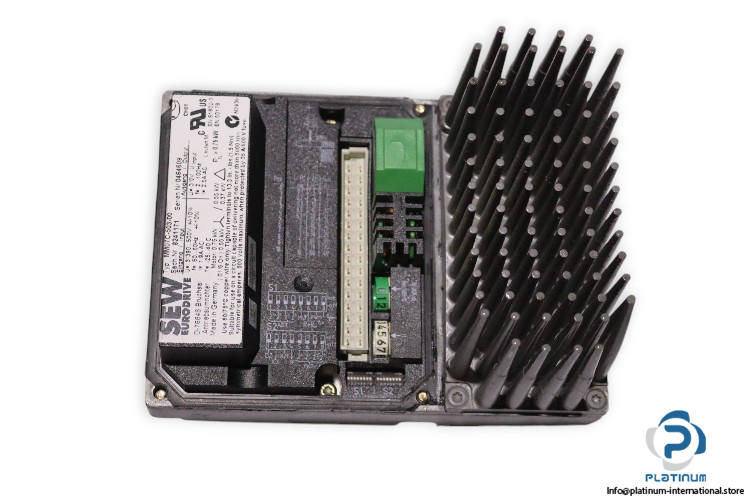

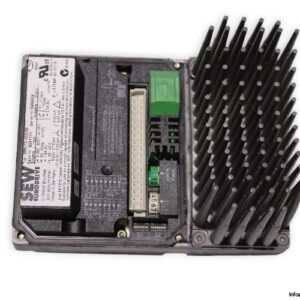

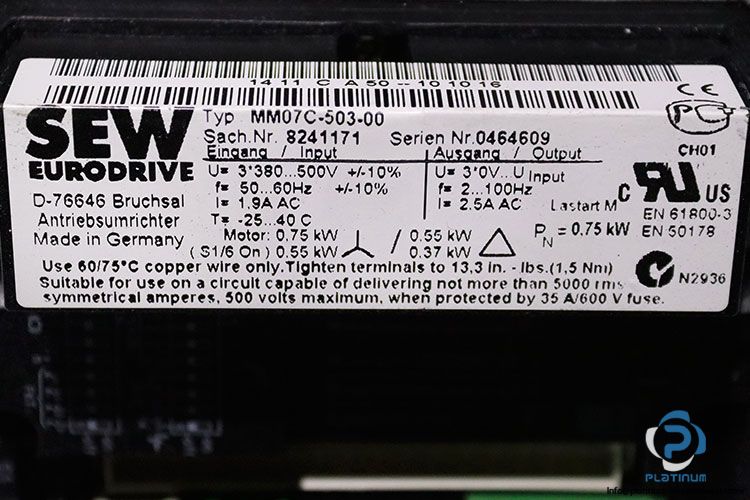

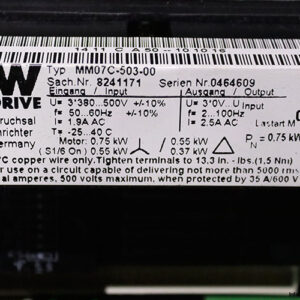

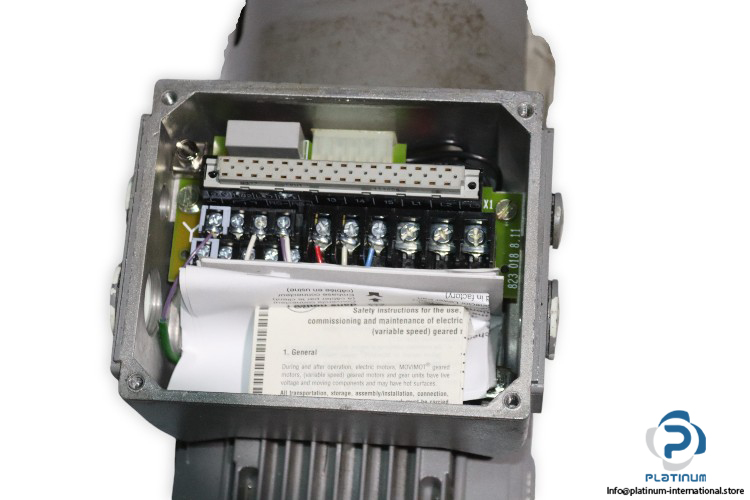

Attached with: SEW MM07C-503-00 MOVIMOT INVERTER DRIVE

• Input:
  • Supply Voltage: 3-Phase 380 / 500 V AC
  • Rated Current: 1.9 A
  • Frequency: 50 / 60 Hz
• Output:
  • Rated Voltage: 3-Phase 0 / 380 “ 500 V AC
  • Rated Current:
