SEW KH37/T CMP71M/BP/PK EK1H/SB1 Bevel Helical Servo Gearmotor

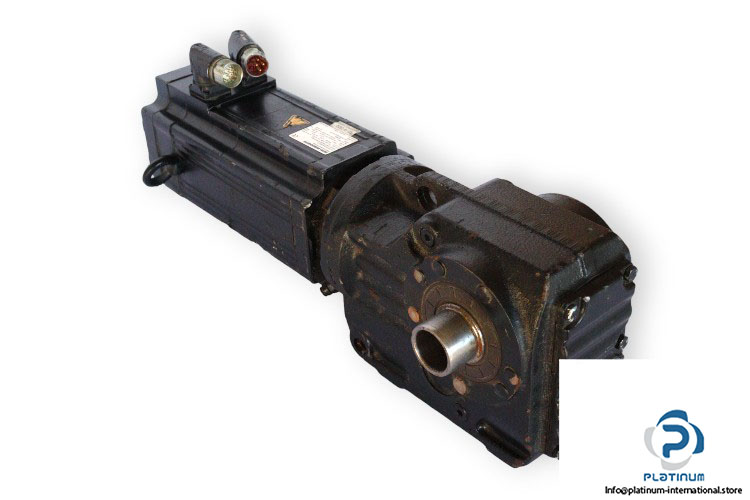

SEW KH37/T Bevel Helical Servo Gearmotor

The SEW KH37/T Bevel Helical Servo Gearmotor is designed for precise and efficient motion control in industrial applications. With a robust motor size of 71 and high output torque, it provides reliable performance for demanding systems. Featuring a hollow shaft design with shrink disc and a high-quality encoder, this gearmotor ensures optimized operation in various mounting positions and is suitable for a range of applications requiring precision and power.

Manufacturer: SEW

Type: Bevel Helical Servo Gearmotor

Model: KH37/T CMP71M/BP/PK EK1H/SB1

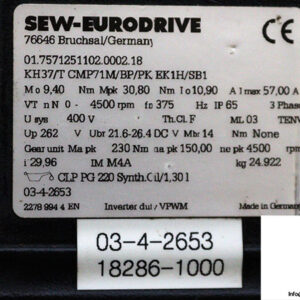

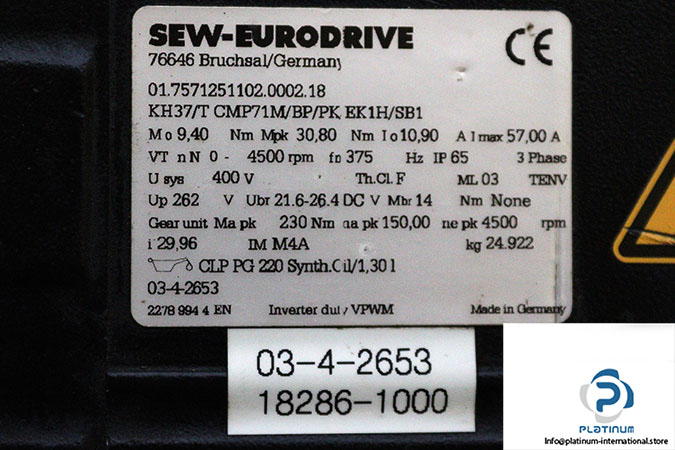

Nr: 01.7571251102.0002.18

Technical Data:

• Gear Unit: KH37/T
• Motor Size: 71
• Speed [r/min]: 4500 / 150
• Total Ratio [i]: 29.96 / infinite
• Mounting Position: M4A
• Term. Box Position [°] / Cable Entry: 270 / variable position
• Lubricant / Volume [l]: CLP PG 220 Synth. Oil / 1.30
• Input Speed nepk [rpm]: 4500
• Output Speed napk [min-1]: 150.00
• Output Torque Mapk [Nm]: 230
• Hollow Shaft: 30mm
• Design: Hollow shaft with shrink disc
• Output Oil Seal Material: FKM
• Motor: CMP71M/BP/PK/EK1H/SB1
• Motor Output Oil Seal Material: FKM
• Rated Speed nN [rpm]: 4500
• Standstill Torque M0 [Nm]: 9.40
• Max. Limit Torque Mpk [Nm]: 30.80
• I0 Standstill Current [A]: 10.90
• Max. Permitt. Current Imax [A]: 57.00
• Cyclic Duration Factor S1-S10: S1
• Motor Voltage [V]: 400
• Thermal Class/Enclosure [IP]: F / 65
• Encoder: EK1H, Single Term Hiperface

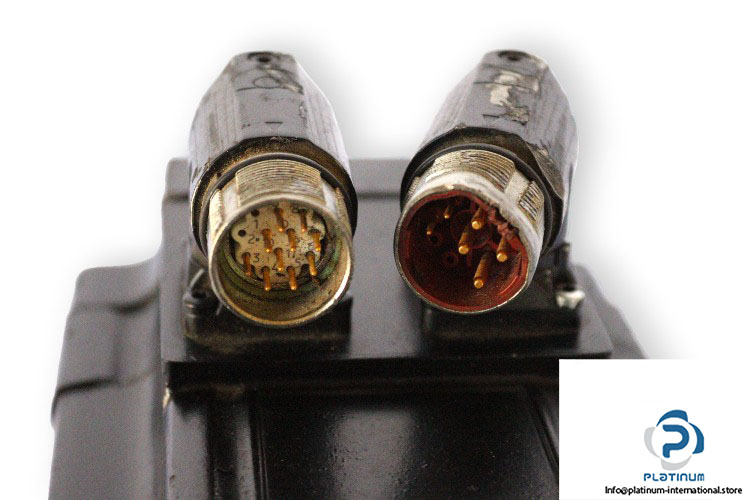

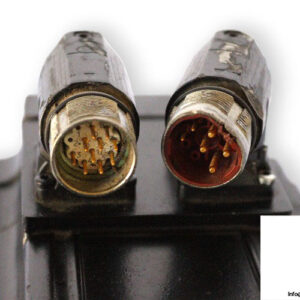

• Plug Connector: SB1
