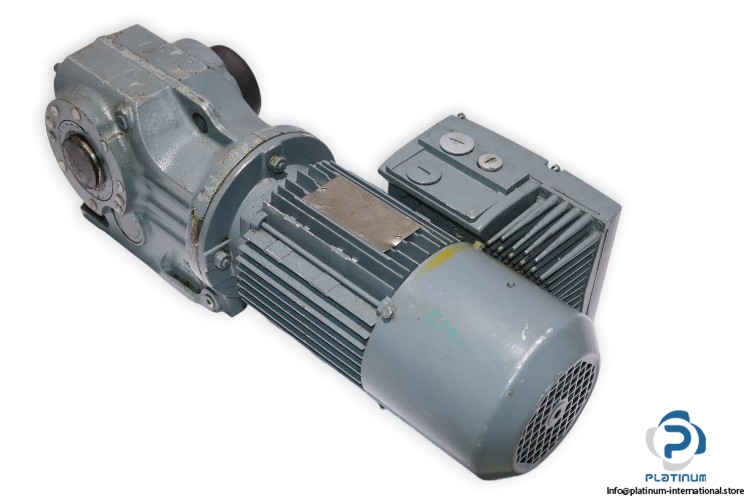

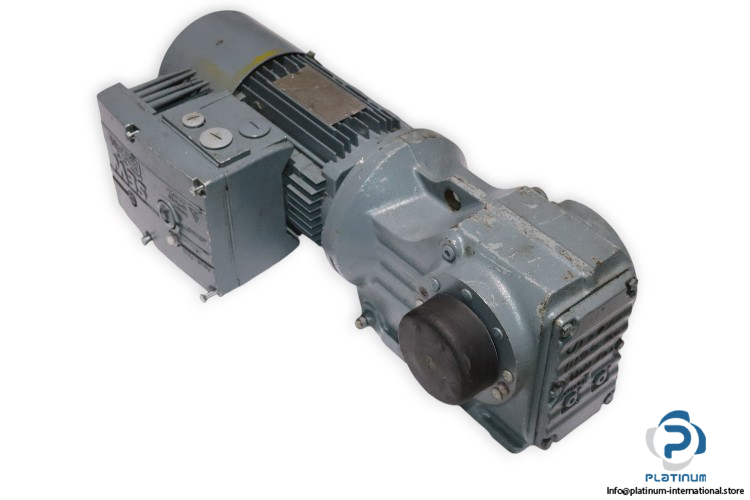

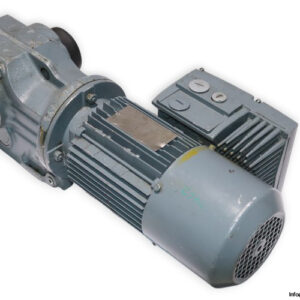

SEW KH47/T DT80K4/BMG/MM05/AVSK Helical- Bevel Gearmotor

SEW KH47/T DT80K4/BMG/MM05/AVSK HELICAL-BEVEL GEARMOTOR

The SEW KH47/T DT80K4/BMG/MM05/AVSK Helical-Bevel Gearmotor offers high efficiency and precision for industrial applications, providing reliable performance with a total ratio of 63.30, a 235 Nm output torque, and a wide range of speeds.

Manufacturer: SEW

Type: HELICAL-BEVEL GEARMOTOR

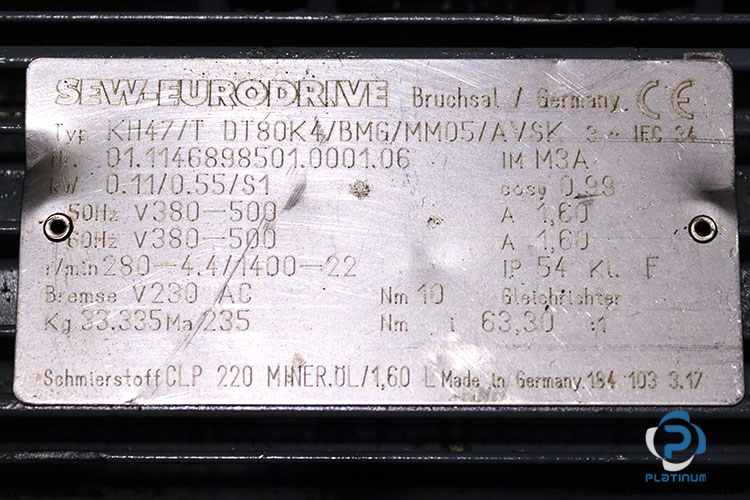

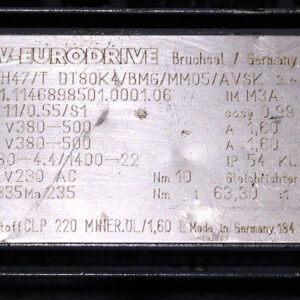

Model: KH47/T DT80K4/BMG/MM05/AVSK

Part No: 01.1146898501.0001.06

Technical Specifications

• Gear Unit: KH47/T
• Input Speed [r/min]: 280 – 1400
• Output Speed [r/min]: 4.4 – 22
• Total Ratio: 63.30
• Mounting Position: M3A
• Output Torque [Nm]: 235
• Service Factor SEW-FB: 1.70
• Lubricant / Volume [l]: CLP 220 Miner.Oil / 1.60
• Hollow Shaft: 35 mm
• Design: Hollow shaft with shrink disc
• Motor Power [kW]: 0.11 / 0.55
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor S1-S10: S1
• Multi Range-Voltage 50Hz [V]: 380-500
• MM Rated Main Current [A]: 1.60
• Multi Range-Voltage 60Hz [V]: 380-500
• MM Rated O/P Current [A]: 2.00
• Thermal Class [°C] / Enclosure [IP]: F / 54
• Brake Voltage [V] / Torque [Nm]: 230 AC / 10

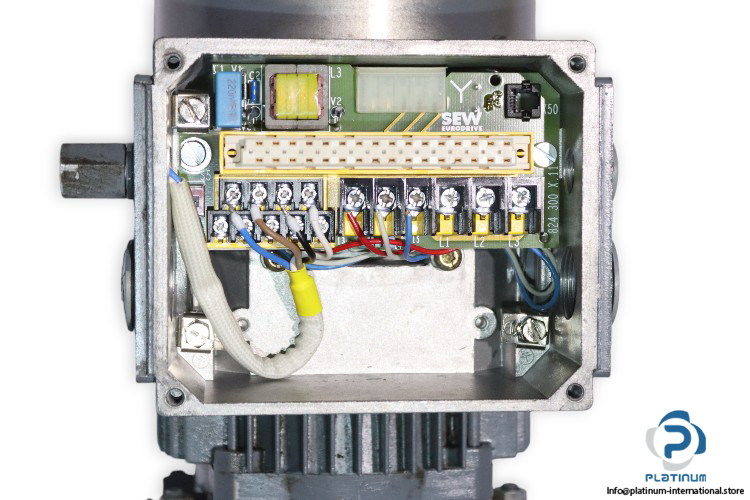

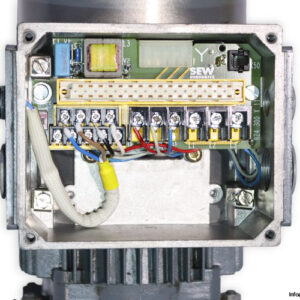

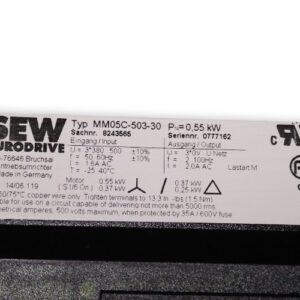

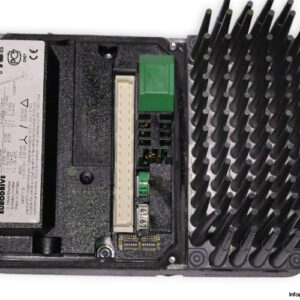

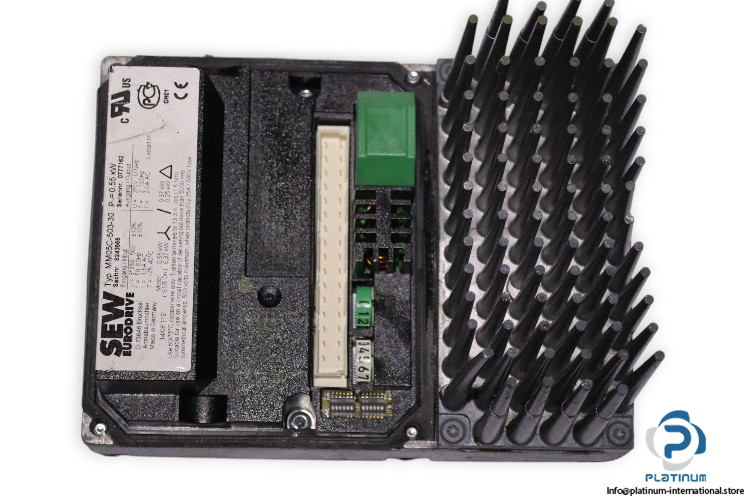

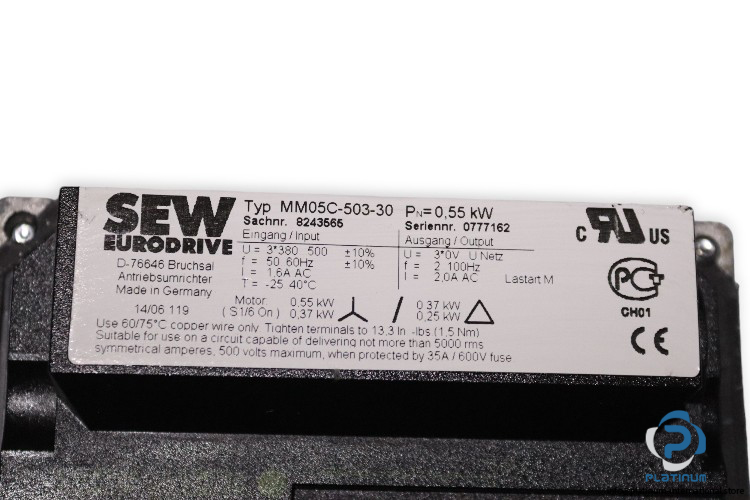

Attached with: SEW MM05C-503-30 MOVIMOT INVERTER DRIVE

Input:

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.6 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 2.0 A
• Frequency: 2 to 100 Hz
