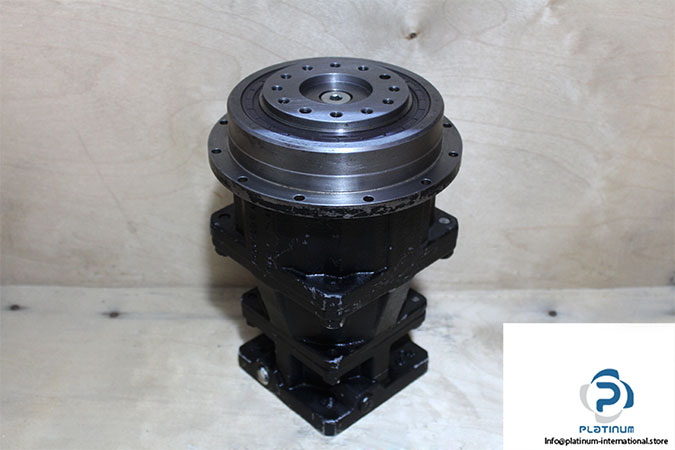

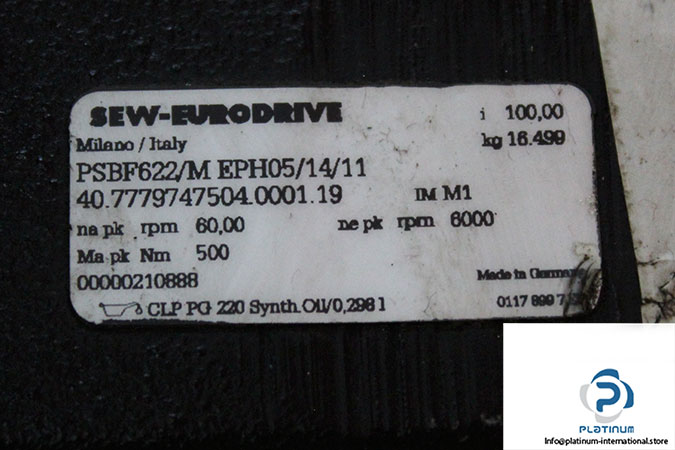

SEW PSBF622/M EPH05/14/11 Planetary Servo Gear Unit

Manufacturer: Sew-Eurodrive

Type: Planetary Servo Gear Units

Model: PSBF622/M EPH05/14/11

Part Nr.: 40.7779747504.0001.19

Speed [r/min]: 3000 / 30

Total Ratio [i]: 100,00 / Finite

No. of Teeth Nom./Denominator: 100/1

Input Speed [rpm]: 6000

Output Speed [min-1]: 60,00

Output Torque [Nm]: 500

Mounting Position: M1

Lubricant / -Volume [l]: CLP PG 220 Synth.Oil / 0,298

Gear Unit: PSBF622/M

Output Shaft End: Flange Block Shaft, A 80

Design: Flange-Mounted Version

Flange: Centering Shoulder 150mm, Hole Circle Through Holes 168mm

Input Flange: Centering Diameter 95mm, Hole Circle 115mm, Thread Diameter: M8

Shaft Flange [mm]: 50-100

Flange Diameter [mm]: 119

Bore on Input Side [mm]: 19
