SEW PSK CZ 222 CMP50S/BP/KY/RH1M/SB1 Planetary servo gear unit
Used
Available on request
PLANETARY SERVO GEAR UNIT
SEW-Eurodrive PSK CZ 222 CMP50S/BP/KY/RH1M/SB1 is a compact and powerful planetary servo gear unit offering a 21:1 ratio, 40 Nm output torque, 400 V motor input, and advanced sensor feedback”ideal for motion control applications.222400VAutomationB14CMP50SControlCZDriveFlangeGearGearmotorHighIndustrialMotionmotorPlanetaryPSKServoSEW-EurodriveTorqueUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

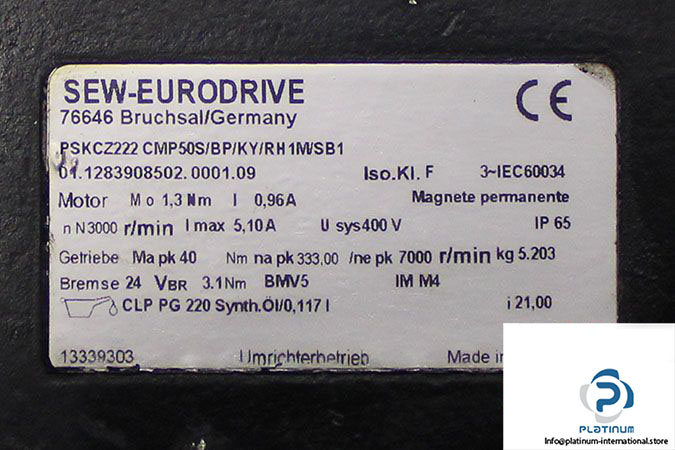

SEW-EURODRIVE PSK CZ 222 CMP50S/BP/KY/RH1M/SB1 PLANETARY SERVO GEAR UNIT
This advanced planetary servo gear unit from SEW-Eurodrive delivers precise performance and high torque transmission, engineered for demanding motion control systems. It combines a robust mechanical design with high-efficiency operation and compact form, ideal for automation and drive solutions.
Manufacturer: SEW-Eurodrive
Type: Planetary Servo Gear Unit
Model: PSK CZ 222 CMP50S/BP/KY/RH1M/SB1
Part No.: 01.1283908502.0001.09
Gear Unit: PSK CZ 222
| Speed [r/min] | 3000 / 143 |
| Total Ratio [i] | 21.00 / finite |
| No. of Teeth Nom./Denominator | 21/1 |
| Mounting Position | M4 |
| Oil Manufacturer Designation | KLÃœBERSYNTH GH 6-220 |
| Lubricant / Volume [l] | CLP PG 220 Synth. Oil / 0.117 |
| Input Speed nepk [rpm] | 7000 |
| Output Speed napk [min-1] | 333.00 |
| Output Torque Mapk [Nm] | 40 |
| Max. Torque | 5.2 Nm |
| Output Shaft End | 16x28 mm with keyway |
| Design | B14 Flange Design |
| Flange | Centering shoulder 52 mm, threaded hole circle 62 mm |
| Rated Speed nN [rpm] | 3000 |
| Standstill Torque M0 [Nm] | 1.30 |
| Max. Limit Torque Mpk [Nm] | 5.20 |
| Standstill Current I0 [A] | 0.96 |
| Max. Permitted Current Imax [A] | 5.10 |
| Cyclic Duration Factor | S1 |
| Motor Voltage [V] | 400 |
| Max. Permitted Frequency [Hz] | 150 |
| Thermal Class / Enclosure [IP] | F / IP65 |
| Brake Voltage / Torque | 24 V DC / 3.1 Nm |
| Brake Rectifier | BMV5 |
| Temperature Measuring | KY = KTY84-130 Sensor |
| Additional Encoder | RH1M Resolver 2-Pole |
| Documentation No. A | 11413409 |
| Shaft Diameter | 17 mm |
| Flange Motor Size | 50 “ Short |
