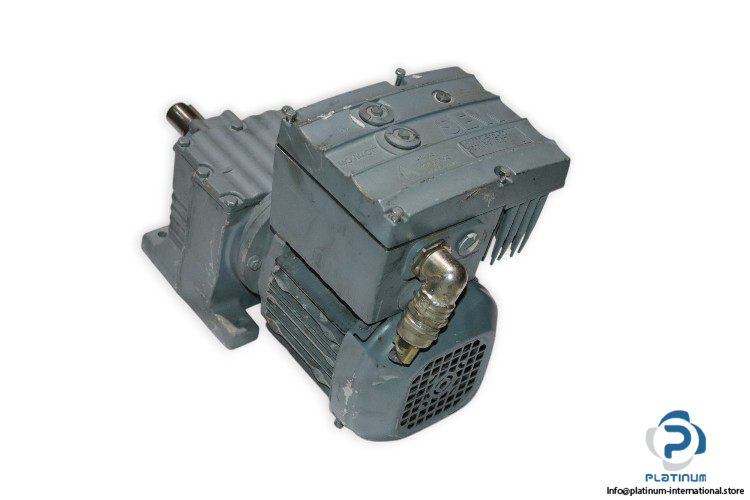

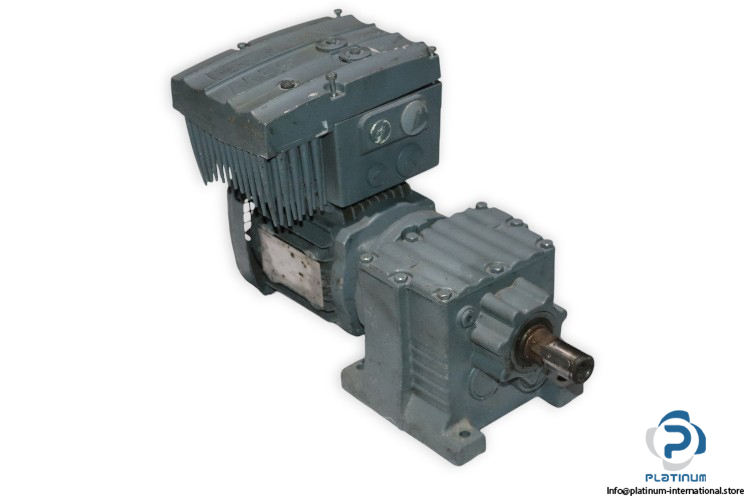

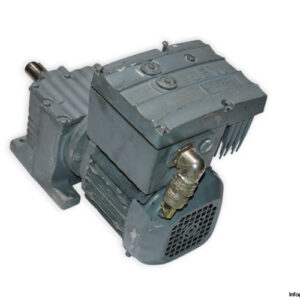

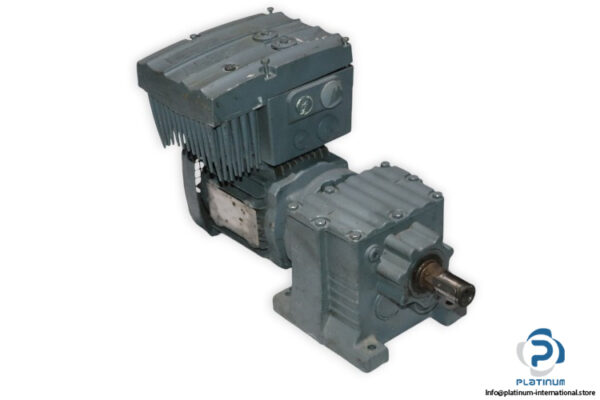

SEW R27 DRS71S4/MM03 Helical-Gearmotor

SEW R27 DRS71S4/MM03 HELICAL-GEARMOTOR

The SEW R27 DRS71S4/MM03 Helical-Geared Motor is designed for reliable and efficient power transmission in industrial applications. Featuring an input speed of 1400 r/min, output speed of 38 r/min, and a total ratio of 36.79, it ensures smooth operation with a robust output torque of 93 Nm.

Manufacturer: SEW

Type: Helical-gearmotor

Model: R27 DRS71S4/MM03

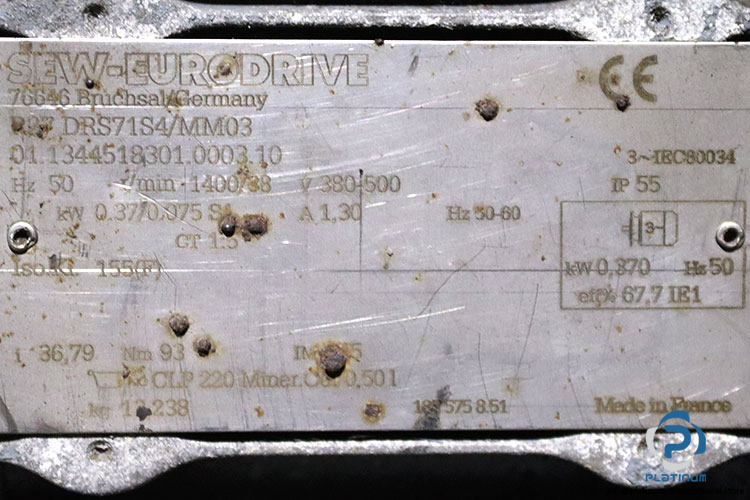

Part No.: 01.1344518301.0003.10

Technical Specifications

• Gear Unit: R27
• Input Speed [r/min]: 1400
• Output Speed [r/min]: 38
• Total Ratio: 36.79 / Infinite
• Output Torque [Nm]: 93
• Service Factor SEW-FB: 1.40
• Mounting Position: M5
• Lubricant / Volume [l]: CLP 220 Miner.Oil / 0.50
• Output Shaft End: 25x50mm lg.
• Motor Power [kW]: 0.37 / 0.075
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor S1-S10: S1
• Motor Voltage [V]: 380-500
• Motor Supply Frequency [Hz]: 50
• MM Rated Main Current [A]: 1.30
• MM Rated O/P Current [A]: 1.60
• Thermal Class [°C] / Enclosure [IP]: 155(F) / 55

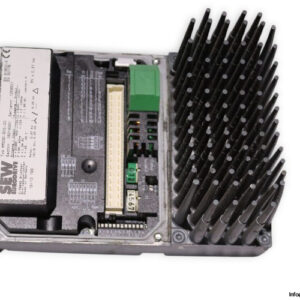

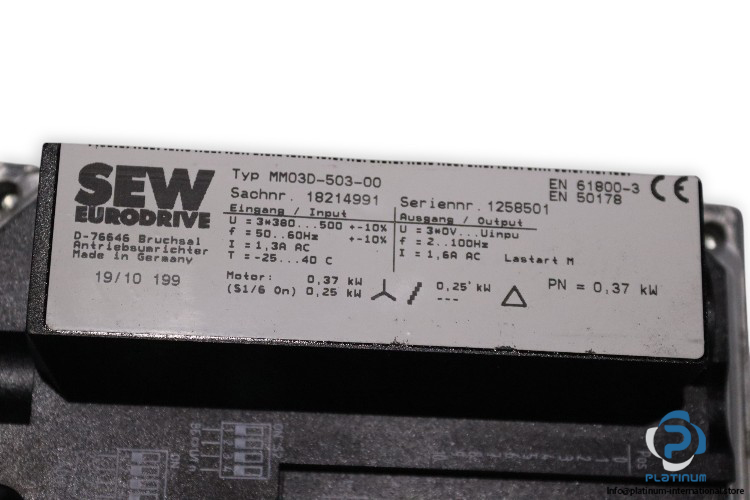

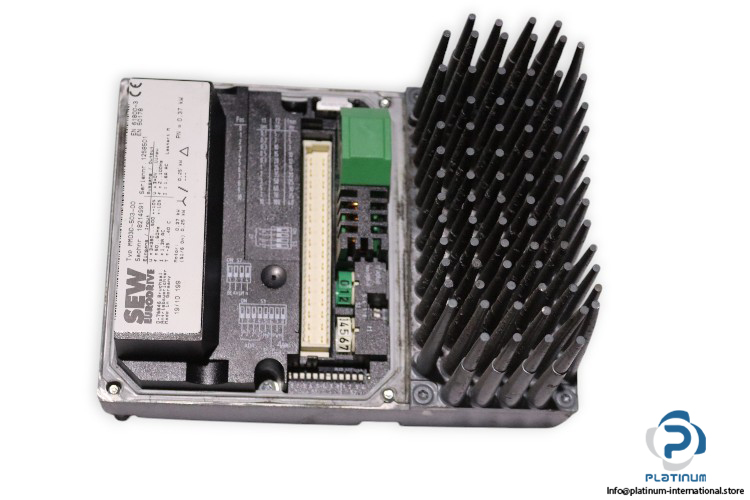

Attached with: SEW MM03D-503-00 MOVIMOT INVERTER DRIVE

Input:

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.3 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 1.6 A
• Frequency: 2 to 100 Hz
