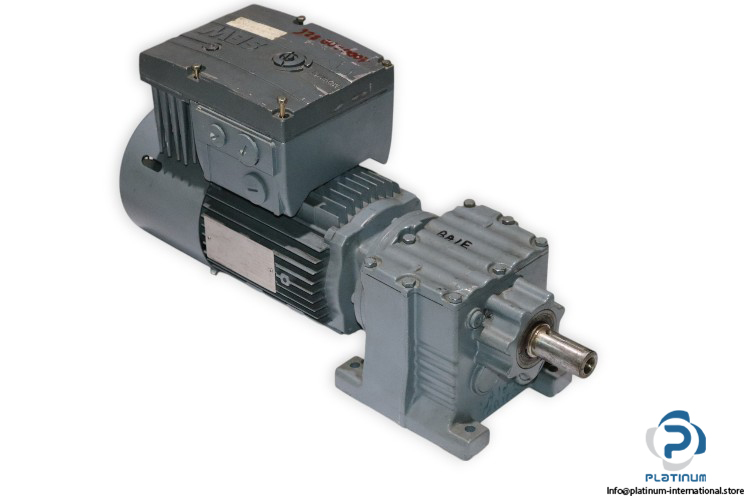

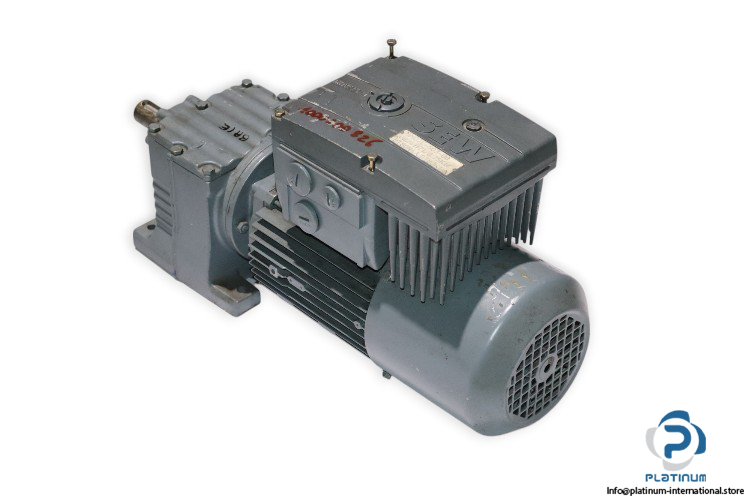

SEW R27 DT80N4/BMG/MM07 Helical-Gearmotor

SEW R27 DT80N4/BMG/MM07 HELICAL-GEARMOTOR

The SEW R27 DT80N4/BMG/MM07 Helical-Geared Motor offers efficient and reliable power transmission in industrial applications. With a wide output speed range of 21.0 to 105.0 r/min and a total ratio of 13.28, this motor delivers optimal performance. Equipped with a 0.15 to 0.75 kW motor, it is perfect for a variety of tasks requiring precision and robustness.

Manufacturer: SEW

Type: Helical-gearmotor

Model: R27 DT80N4/BMG/MM07

Part no: 01.3373782402.0001.03

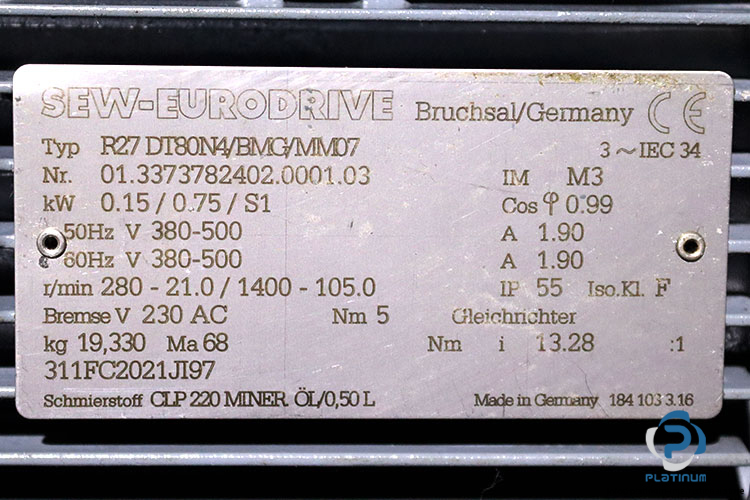

Technical Specifications

• Gear unit: R27
• Speed 50Hz [r/min]: 280 – 1400
• Output speed [r/min]: 21.0 – 105.0
• Total ratio: 13,28
• Output torque [Nm]: 68
• Service factor SEW-FB: 1,90
• Mounting position: M3
• Lubricant / volume [l]: CLP 220 / 0,50
• Output shaft end: 25x50mm lg.
• Motor power [kW]: 0.15 / 0.75
• Motor frequency [Hz]: 50
• Cyclic duration factor S1-S10: S1
• Multi range-voltage 50Hz [V]: 380-500
• Multi range-voltage 60Hz [V]: 380-500
• MM rated main current [A]: 1,90
• MM rated O/P current [A]: 2,50
• Thermal cl.[°C]/Enclosure[IP]: (F) / 55
• Brake voltage [V]/-torque [Nm]: 230 AC / 5
• Multi range-voltage brake [V]: 230 AC

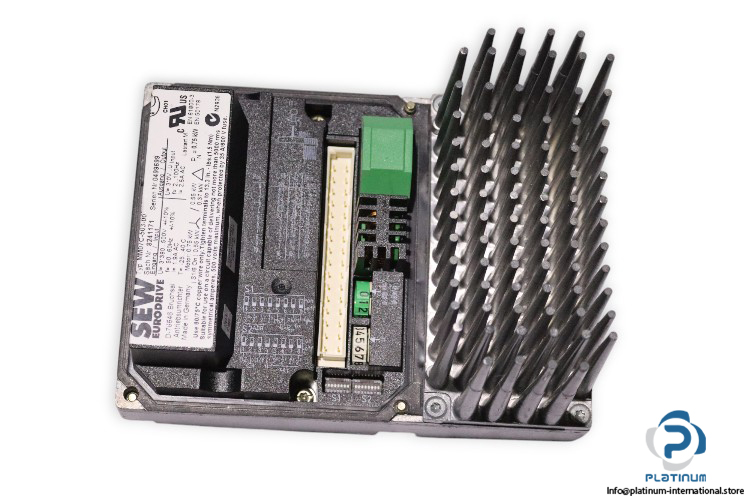

• Attached with: SEW MM07C-503-00 MOVIMOT INVERTER DRIVE

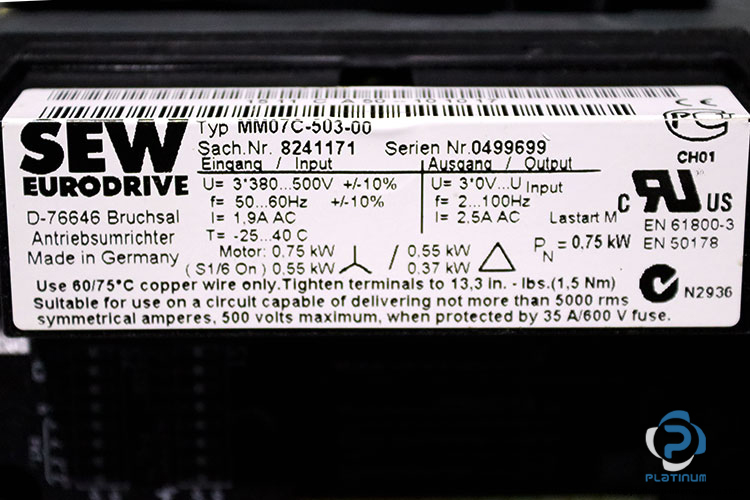

Input Specifications

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.9 A
• Frequency: 50 / 60 Hz

Output Specifications

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 2.5 A
• Frequency: 2 to 100 Hz
