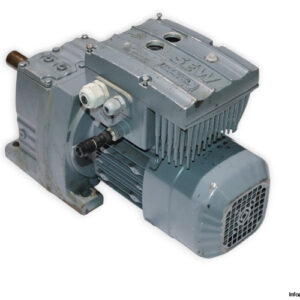

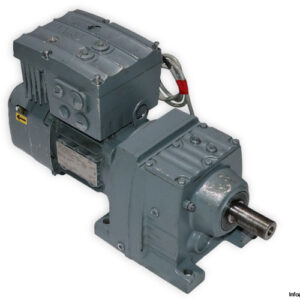

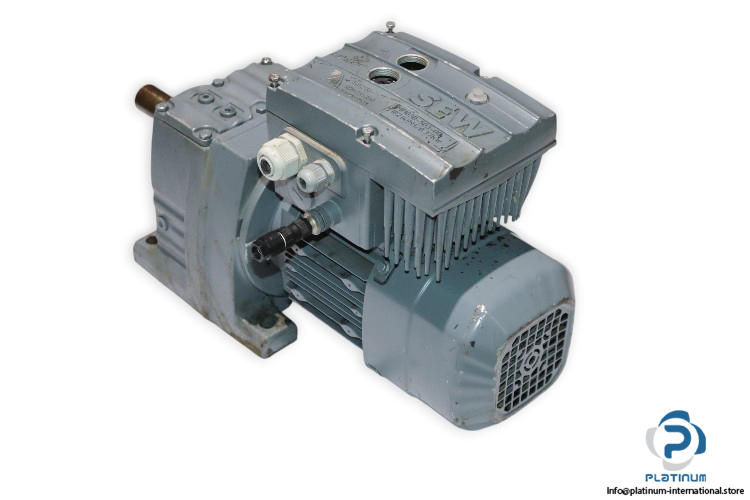

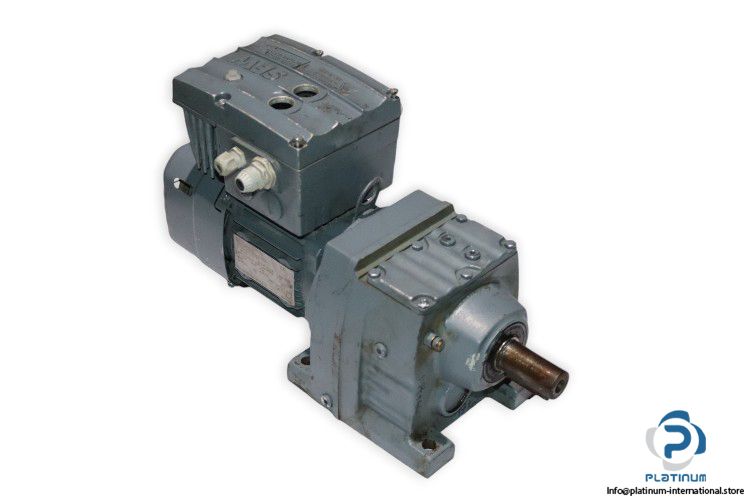

SEW R47 DRS71S4BE05HR/MM03/EI7C Helical- Gearmotor

SEW R47 DRS71S4BE05HR HELICAL GEAR MOTOR

The SEW R47 DRS71S4BE05HR Helical Gearmotor offers precision and efficiency for industrial applications. This gearmotor combines high output torque with a total ratio of 14.56 / infinite, ensuring reliable performance in demanding environments. Equipped with the SEW MM03D-503-00 MOVIMOT Inverter Drive, it provides excellent control over motor speed and power distribution.

Manufacturer: SEW

Type: HELICAL GEAR MOTOR

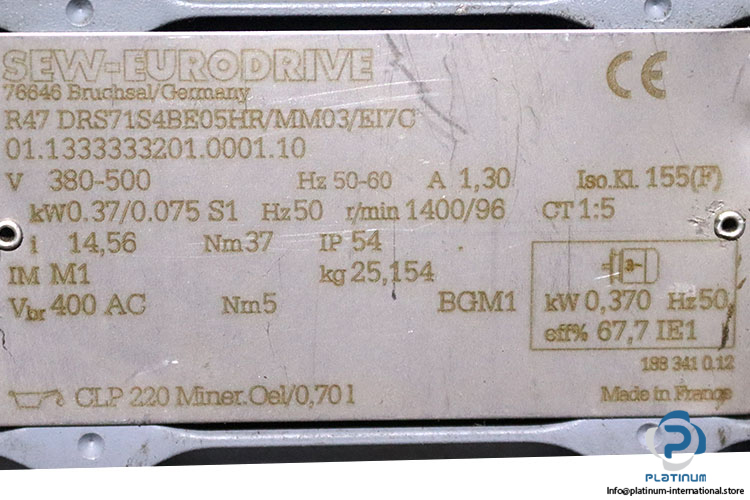

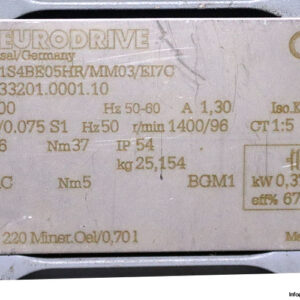

Model: R47 DRS71S4BE05HR/MM03/EI7C

Part No: 01.1333333201.0001.10

Technical Specifications

• Gear Unit: R47
• Speed [r/min]: 1400 / 96
• Total Ratio: 14.56 / infinite
• Output Torque [Nm]: 37
• Service Factor SEW-FB: 7.20
• Mounting Position: M1
• Lubricant / Volume [l]: CLP 220 Miner.Oil / 0.70
• Output Shaft End: 30x60mm lg.
• Motor Power [kW]: 0.37 / 0.075
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor S1-S10: S1
• Motor Voltage [V]: 380-500
• Motor Supply Frequency [Hz]: 50
• MM Rated Main Current [A]: 1.30
• MM Rated O/P Current [A]: 1.60
• Brake Voltage [V] / Torque [Nm]: 400 AC / 5
• Brake Rectifier: BGM1

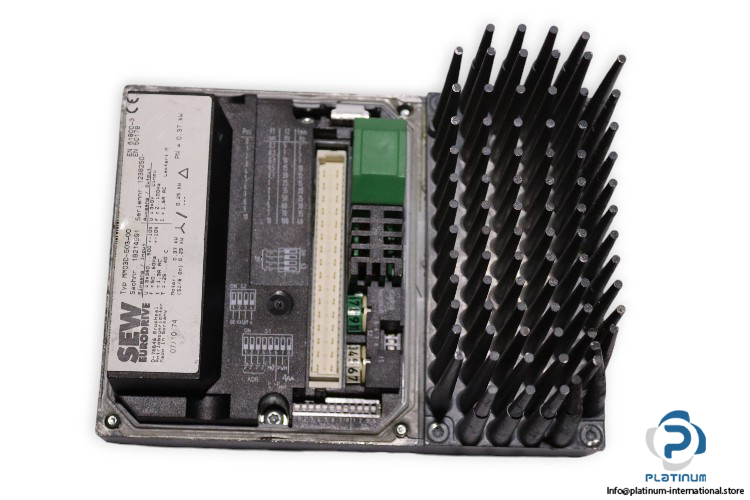

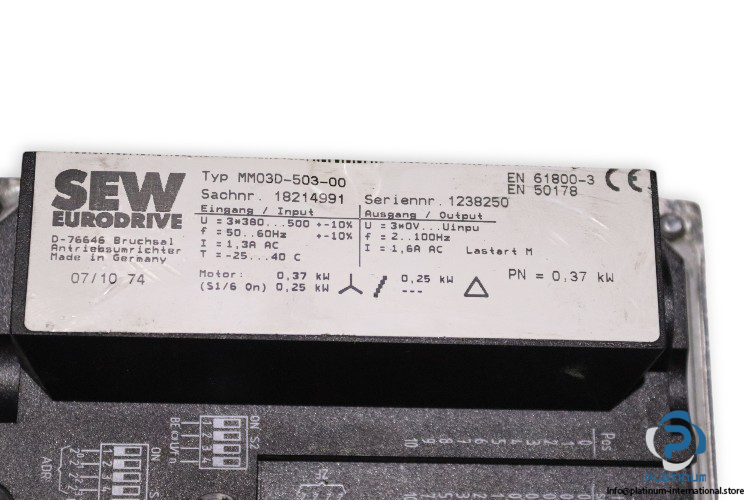

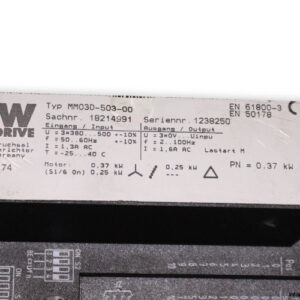

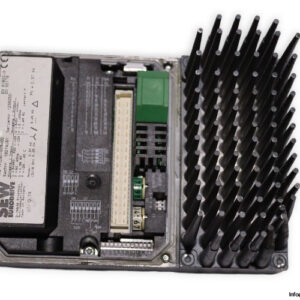

Attached with: SEW MM03D-503-00 MOVIMOT INVERTER DRIVE

• Input: 3-Phase 380 to 500 V AC, Rated Current: 1.3 A, Frequency: 50 / 60 Hz
• Output: Rated Voltage: 3-Phase 0 / 380 to 500 V AC, Rated Current: 1.6 A, Frequency: 2 to 100 Hz
