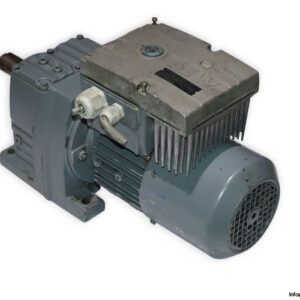

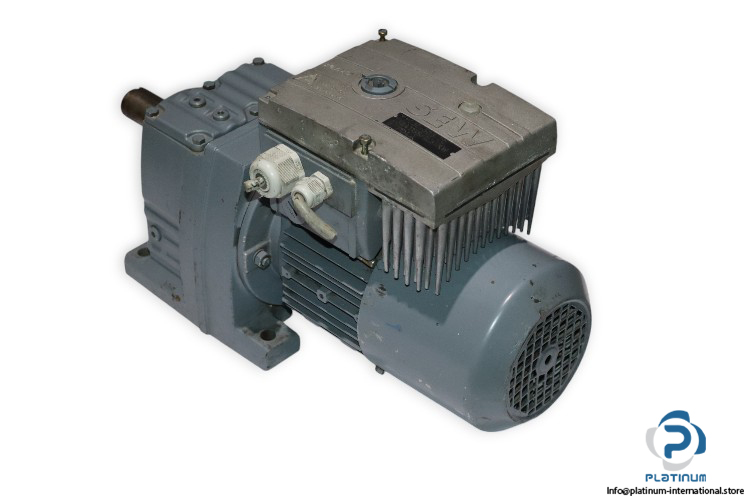

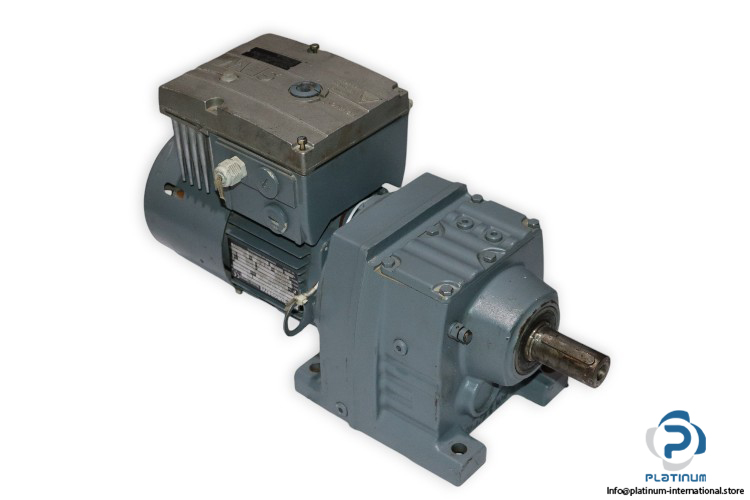

SEW R47 DT71D-4/BMG/HR/MM03 Helical Gearmotor

In stock1 unitReady to ship

helical gearmotor

The SEW R47 DT71D-4/BMG/HR/MM03 Helical Gearmotor provides high torque output of 37 Nm with a 14.56 total ratio, ensuring precise and reliable performance in industrial power transmission applications.

Manufacturer
SEW
SKU
1054745
Category
Gear Motors
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

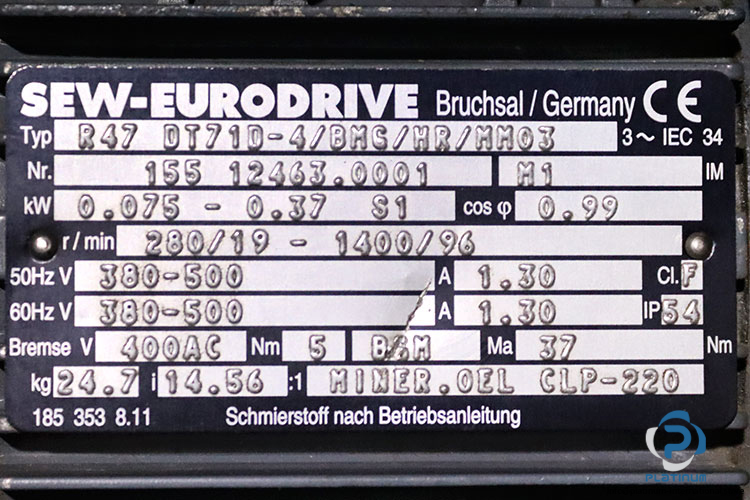

SEW R47 DT71D-4/BMG/HR/MM03 HELICAL GEARMOTOR

The SEW R47 DT71D-4/BMG/HR/MM03 Helical Gearmotor is a high-performance solution designed for precise and reliable power transmission in industrial applications. With a total ratio of 14.56, it offers high torque output and efficiency, making it ideal for various power transmission needs.

Manufacturer: SEW

Type: HELICAL GEARMOTOR

Model: R47 DT71D-4/BMG/HR/MM03

Part No: 155 12463.0001

Technical Specifications

  • Gear unit: R47
  • Input speed [r/min]: 280 – 1400
  • Output speed [r/min]: 19.0 – 96
  • Total ratio: 14.56
  • Mounting position: M1
  • Output torque [Nm]: 37
  • Lubricant: MINER.OEL CLP 220
  • Motor power [kW]: 0.075 / 0.37
  • Cyclic duration factor S1-S10: S1
  • COS PHI: 0.99
  • Multi range-voltage 50Hz [V]: 380-500
  • Multi range-voltage 60Hz [V]: 380-500
  • MM rated main current [A]: 1.30
  • MM rated O/P current [A]: 1.30
  • Thermal cl. [°C] / Enclosure [IP]: (F) / 45
  • Brake voltage [V] / Torque [Nm]: 400 / 5

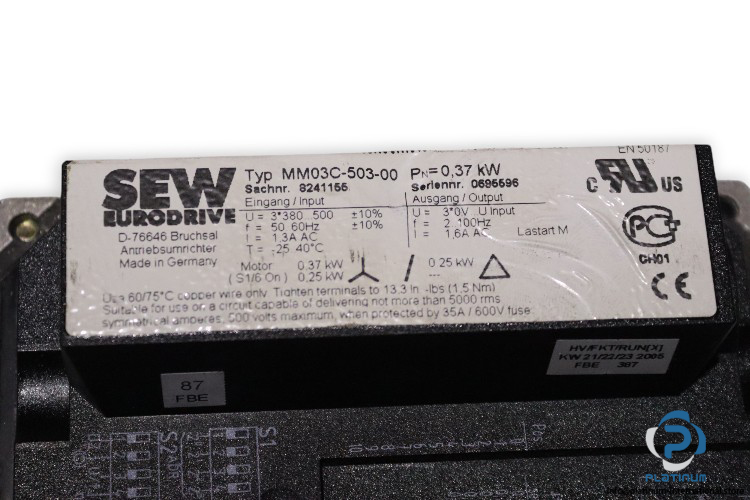

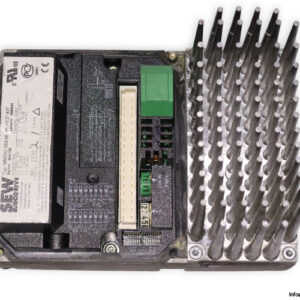

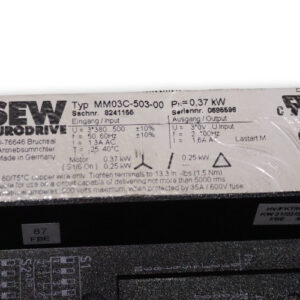

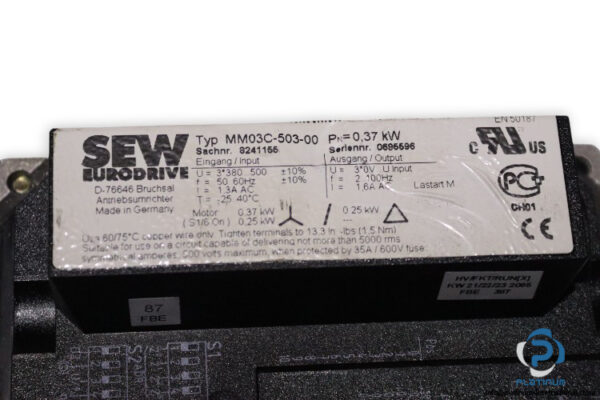

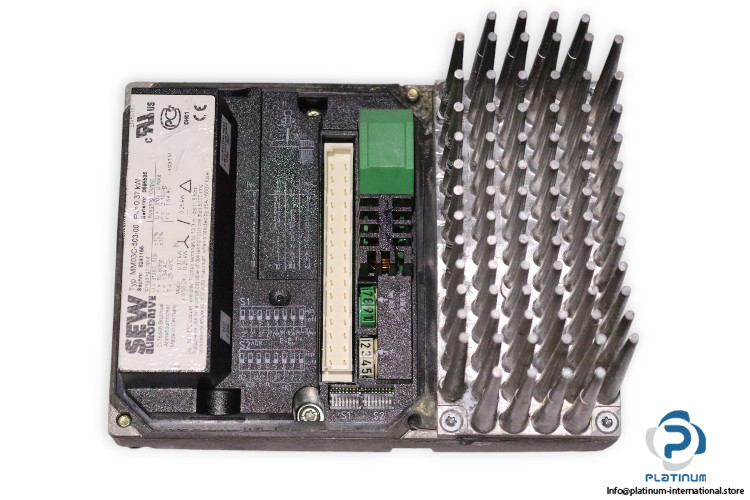

  • Attached with: SEW MM03C-503-00 MOVIMOT INVERTER DRIVE

Input Specifications

  • Supply Voltage: 3-Phase 380 to 500 V AC
  • Rated Current: 1.3 A
  • Frequency: 50 / 60 Hz

Output Specifications

  • Rated Voltage: 3-Phase 0 / 380 to 500 V AC
  • Rated Current: 1.6 A
  • Frequency: 2 / 100 Hz
