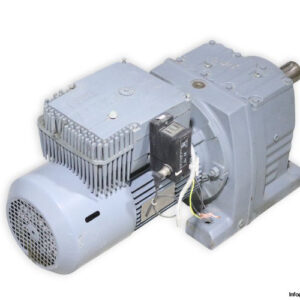

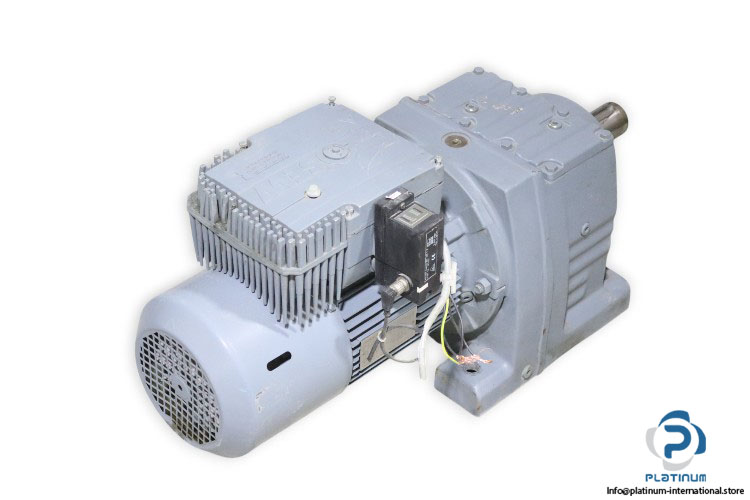

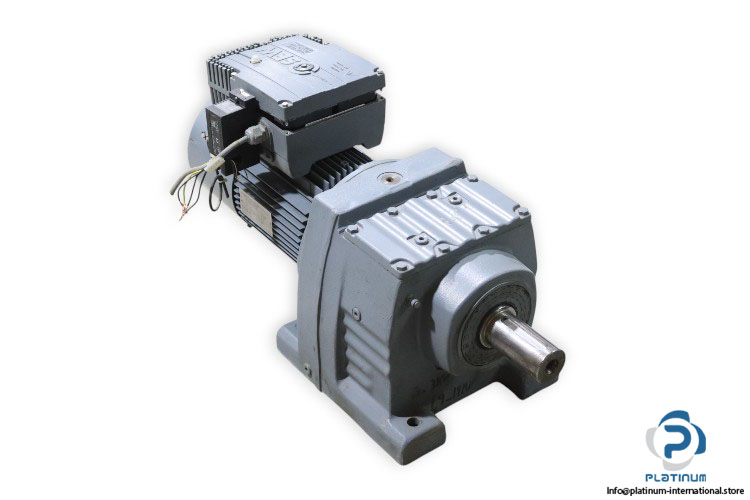

SEW R87 DV100M4/BMG/MM30 (0003) Helical Gearmotor
Helical Gearmotor
High-efficiency SEW-Eurodrive R87DV100M4/BMG/MM30 helical gearmotor with integrated frequency inverter and braking system. 380-500 V three-phase AC input, 155.34:1 ratio, 40 Nm torque, and IP54 protection for reliable industrial automation.SEW-Eurodrive R87DV100M4/BMG/MM30 Helical Gearmotor
The SEW-Eurodrive R87DV100M4/BMG/MM30 is a high-performance helical gearmotor engineered for precise motion control and continuous industrial operation. Combining robust mechanical design with advanced integrated electronics, it ensures superior torque, efficiency, and adaptability in demanding environments. Perfect for conveyor systems, packaging machinery, lifting mechanisms, and automated production lines.

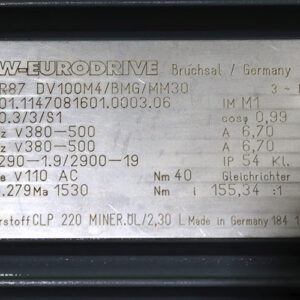

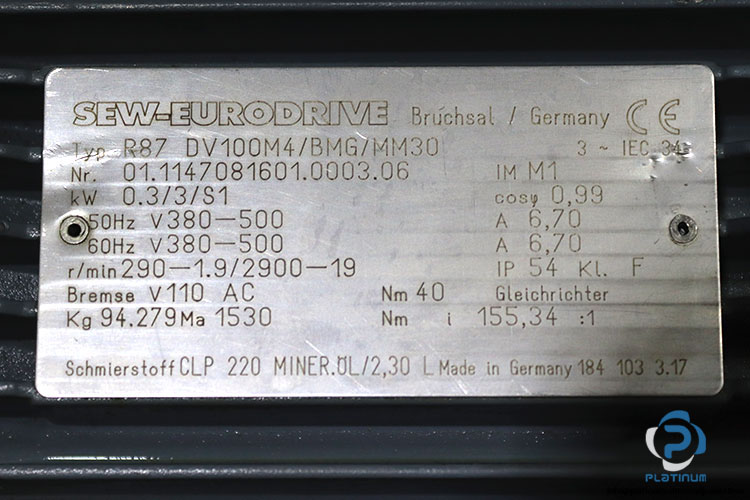

Manufacturer: SEW-Eurodrive
Type: Helical Gearmotor
Model: R87DV100M4/BMG/MM30
Part No.: 01.1147081601.0003.06
Gear Unit Specifications
- Gear Unit Type: R87 “ Helical Gear Reducer
- Gear Ratio (i): 155.34:1
- Output Speed: 50 Hz: 290 / 1.9 rpm | 60 Hz: 2900 / 19 rpm
- Rated Current: 6.7 A (50/60 Hz)
- Nominal Torque: 40 Nm
- Lubrication: CLP 220 Mineral Oil (2.3 L capacity)
- Mounting Position: IM M1 (horizontal foot-mounted)
- Shaft Type: Solid output shaft
- Protection Class: IP54
Motor Information
- Motor Type: DV100M4/BMG
- Rated Power: 0.37 kW
- Poles: 4 (4-pole asynchronous motor)
- Duty Type: S1 (Continuous Duty)
- Rated Voltage: 380-500 V (3-phase AC)
- Rated Current: 6.7 A
- Rated Speed: 2900 rpm
- Frequency: 50 / 60 Hz
- Power Factor (cos φ): 0.99
- Enclosure: Totally enclosed fan-cooled (TEFC)
- Insulation Class: F
Brake Details
- Brake Voltage: 110 V AC
- Type: Spring-applied, electrically released brake
- Operation: Holding and emergency stop functionality
- Rectifier: Integrated brake rectifier

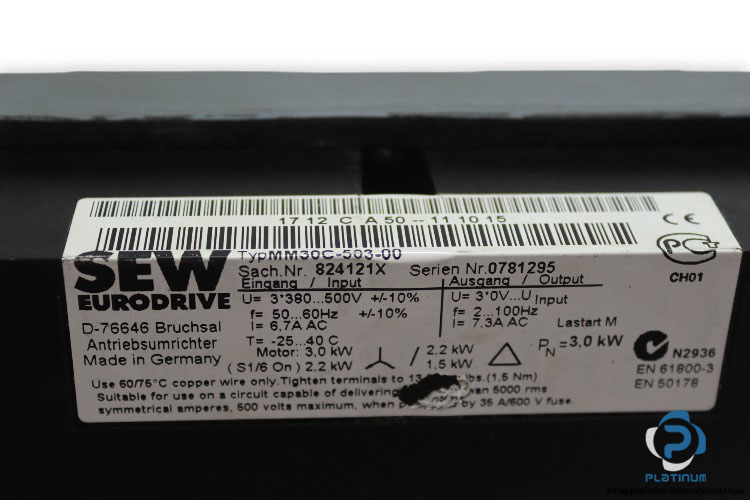

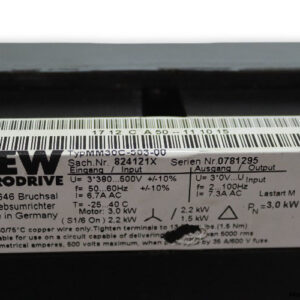

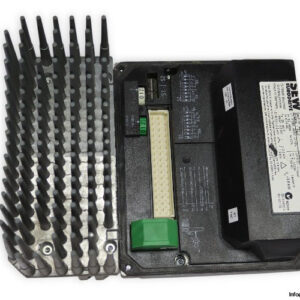

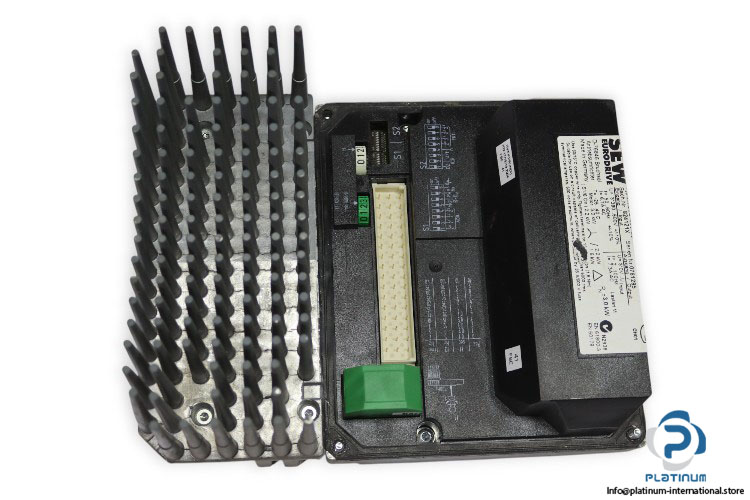

Integrated Frequency Inverter (MM30C-503-00)
- Manufacturer: SEW-Eurodrive
- Type: MM30C-503-00
- Part No.: 824121X
- Serial No.: 0781295
- Input Supply: 3 × 380 to 500 V ±10 %, 50/60 Hz, 6.7 A
- Output Supply: 3 × 0 to 380 to 500 V, variable frequency 2 to 100 Hz
- Rated Output Current: 7.3 A
- Rated Power: 3.0 kW
- Cooling Type: Convection-cooled with integrated aluminum heat sink
- Ambient Temperature: -25 / +40 °C
- Protection Class: IP54
- Digital/Analog I/O: Configurable via parameter interface
- Communication Interface: RS485 / Fieldbus compatible
- Compliance Standards: EN 50178 / EN 61800-3 / N2936, CE

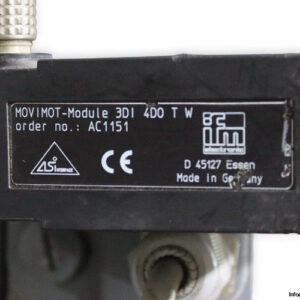

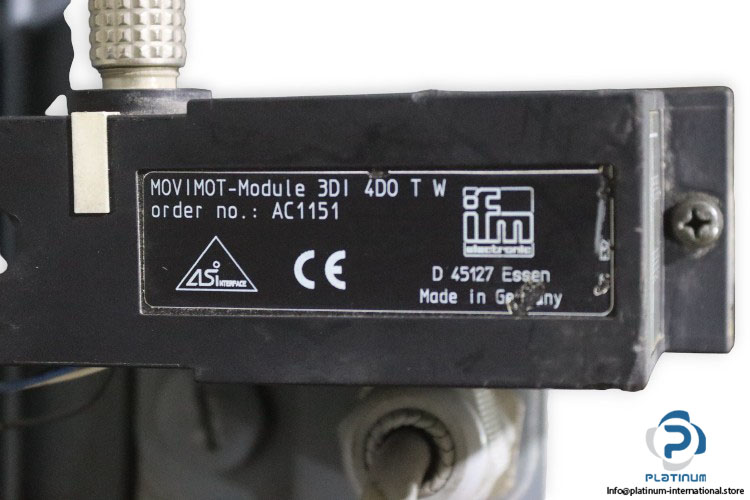

MOVIMOT Communication Interface Module
- Manufacturer: IFM Electronic
- Model: MOVIMOT-Module 3DI 4DO T W
- Order No.: AC1151
- Type: Communication and I/O expansion module
- Inputs: 3 digital inputs
- Outputs: 4 digital transistor outputs
- Fieldbus Interface: AS-Interface (AS-i bus system)
- Protection Class: IP65
- Mounting: Direct integration on MOVIMOT unit
This SEW-Eurodrive helical gearmotor provides exceptional precision, quiet operation, and long service life. The integrated inverter enables flexible speed control and energy-efficient performance, while the high protection class ensures reliability even in harsh industrial environments. Ideal for industries requiring dependable power transmission with smart communication integration.
