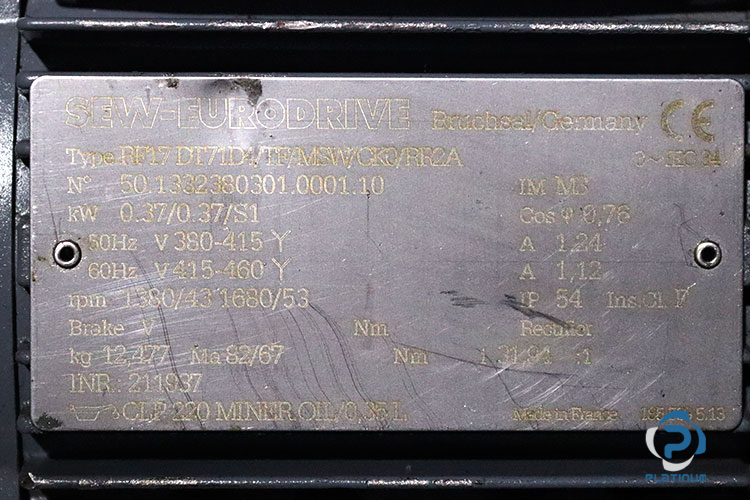

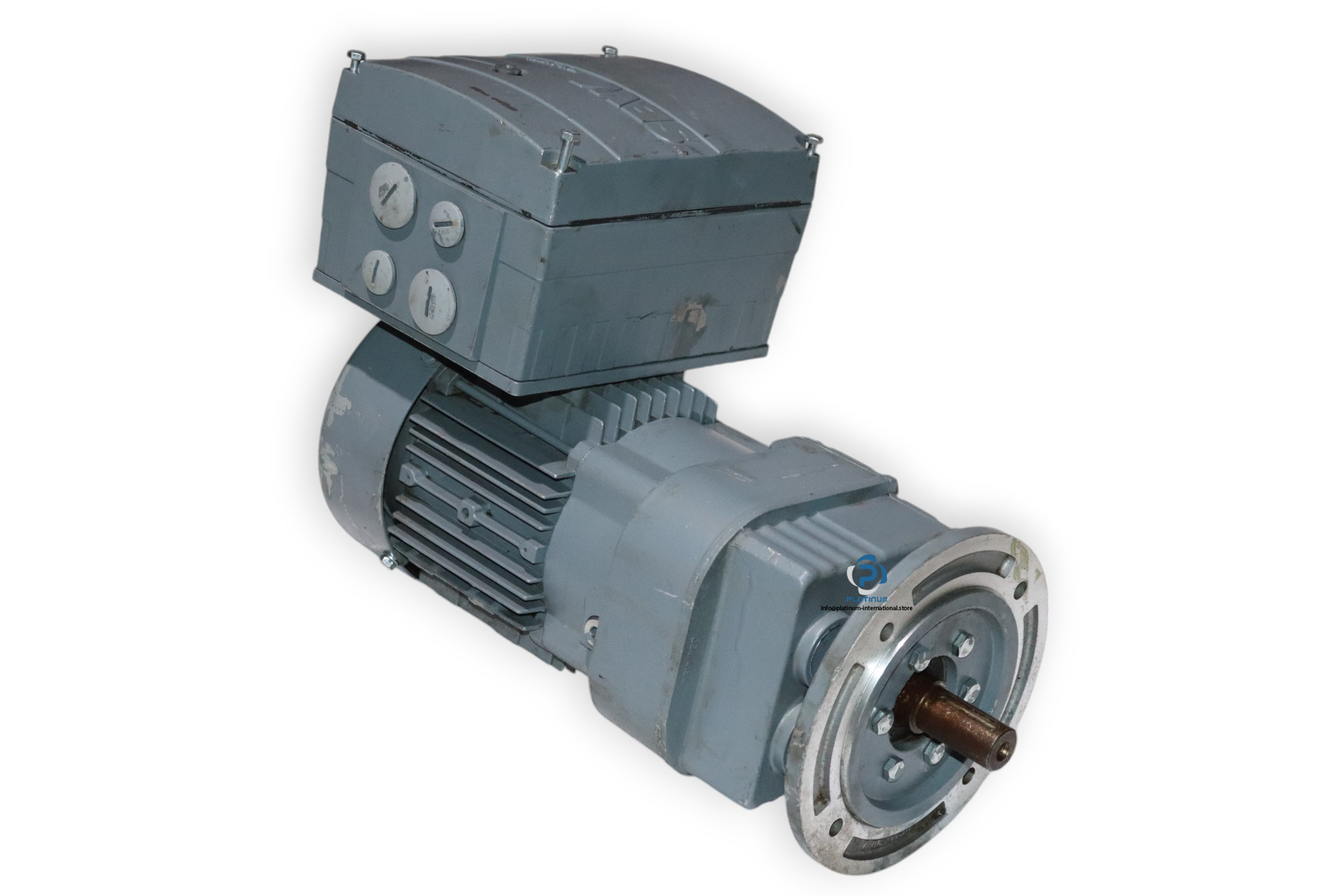

SEW RF17 DT71D4_TF_MSW_CK0_RR2A 3 Phase Motor
Part Number: 50.1332380301.0001.10
Manufacturer: Sew-Eurodrive
Type: 3 phase Motor
Model: RF17 DT71D4/TF/MSW/CK0/RR2A
Part Number: 50.1332380301.0001.10

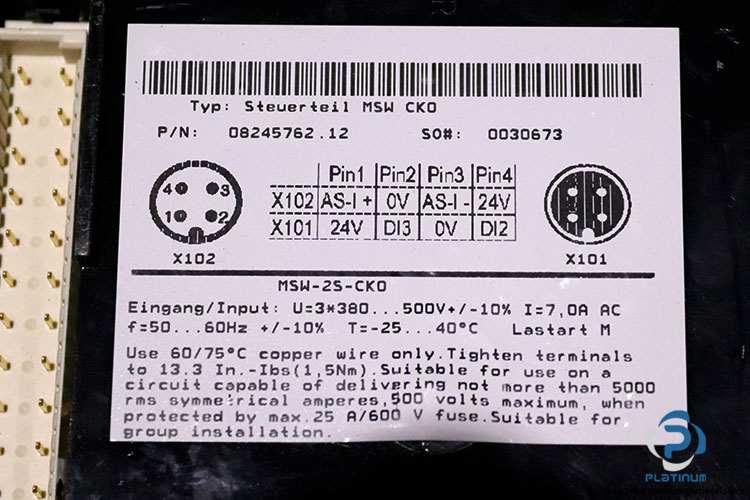

Movi-Switch: MSW-2S-CK0
Speed 50Hz (r/min):1380/43
Speed 60Hz (r/min): 1680/53
Total Ratio (i): 31,94
Ma Max (Nm):85
Output Torque 50Hz (Nm): 82
Output Torque 60Hz (Nm): 67
Service Factor SEW-FB: 1,05-1,25
Mounting Position: M3
Lubricant / -Volume (l): CLP 220 Miner.Oil/0,35
Motor Power (kW): 0.37/0.37
Motor Frequency (Hz): 50/60
Cyclic Duration Factor: S1
Motor Voltage 50Hz (V): 380-415 star
Nominal Current (A): 1,24
Motor Voltage 60Hz (V): 415-460 star
Nominal Current (A): 1,12
cos phi: 0,76
Thermal Class/Enclosure (IP): F/54
Access. Feature Motor Protec: TF temperature sensor

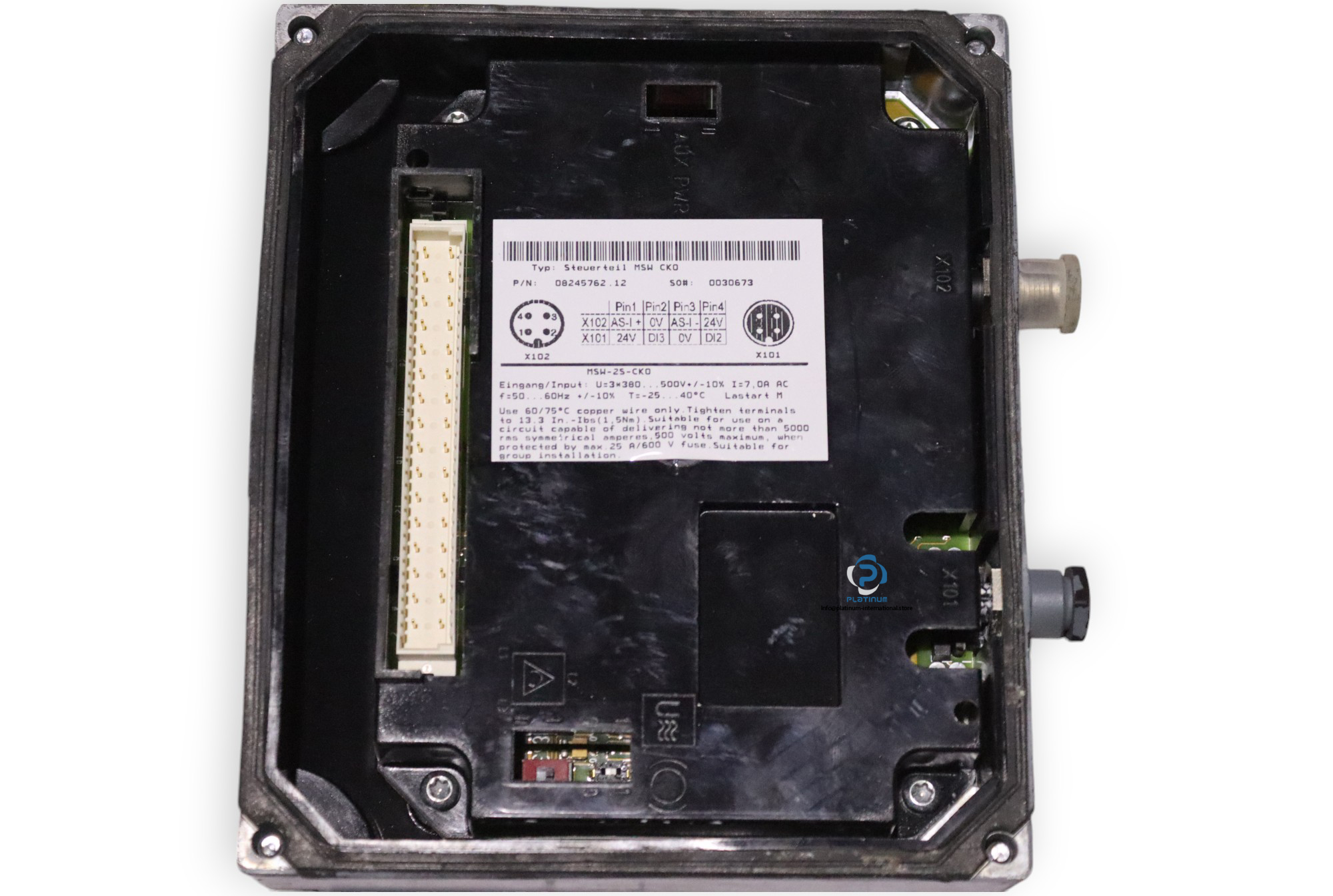

Add. feat. MOVIMOT/-SWITCH: MOVI-SWITCH-2S/CK0 (control via AS-Interface)
Rated Voltage Input (V): 3X380-500 +/-10%
Rated Current Input (A): 7
Frequency Input (Hz): 50-60
Ambient Temperature Inverter (°C): -25 – +40
