SEW RF27 DS56L/TF/RH1M/SM10 Helical Gear Motor

In stock1 unitReady to ship

helical gear motor

The SEW RF27 DS56L/TF/RH1M/SM10 Helical Gear Motor offers 136 Nm output torque, a 48.17 ratio, and reliable performance in industrial applications with IP65 protection class.

Manufacturer
SEW
SKU
1054631
Category
Gear Motors
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

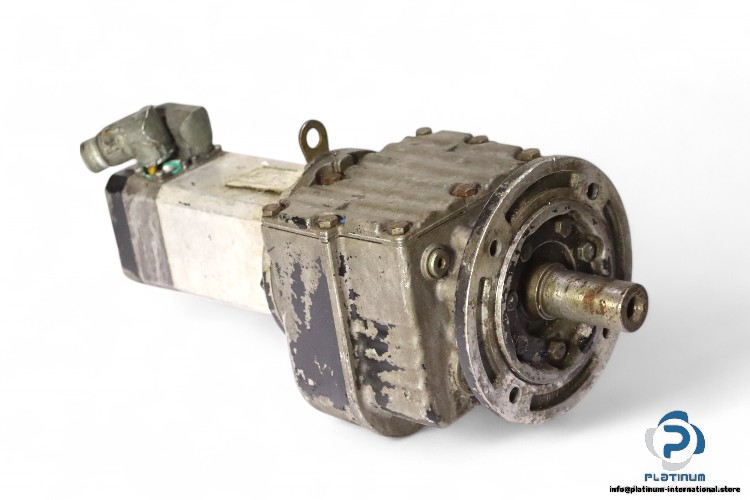

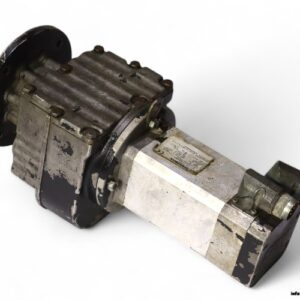

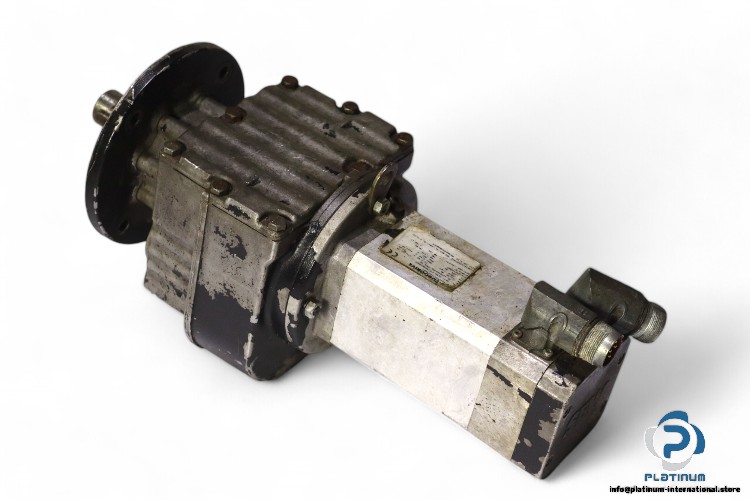

SEW RF27 DS56L/TF/RH1M/SM10 HELICAL GEAR MOTOR

The SEW RF27 DS56L/TF/RH1M/SM10 Helical Gear Motor is engineered for efficient power transmission and high-performance operation. With a 48.17 ratio, 4500 rpm input speed, and 136 Nm output torque, it provides reliable performance across various industrial applications. This motor is designed with high protection standards, offering IP65 protection class and a maximum frequency of 225 Hz.

Manufacturer: SEW

Type: HELICAL GEAR MOTOR

Model: RF27 DS56L/TF/RH1M/SM10

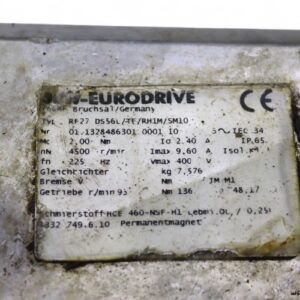

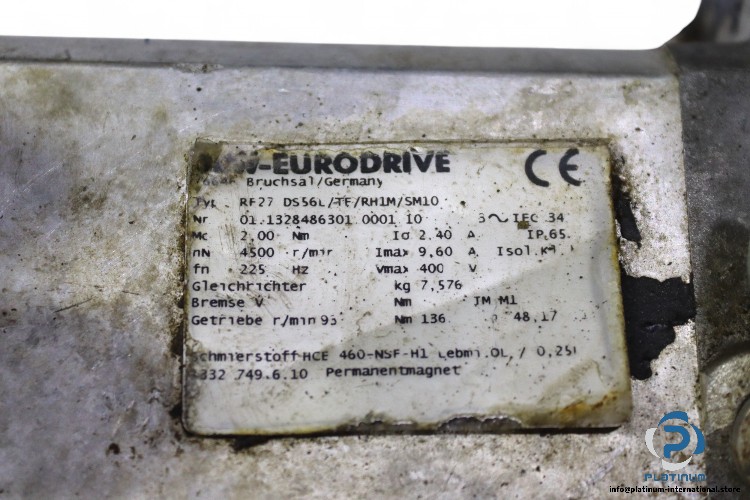

ID No.: 01.1328486301 0001 10

Technical Specifications

  • Ratio [i]: 48.17
  • Input speed nepk [rpm]: 4500
  • Output speed napk [min-1]: 93.00
  • Output torque Mapk [Nm]: 136
  • Output shaft end: 25x50mm lg.
  • Flange: 140 mm
  • Motor voltage [V]: 400
  • Max. permitted frequency: 225 Hz
  • Rated Current [A]: 9.6
  • Stall Current [A]: 2.4
  • Max. limit torque Mpk [Nm]: 7.60
  • Rated Torque [Nm]: 2
  • Protection Class: IP65
  • Mounting position: M1
  • Lubricant / volume [l]: HCE 460-NSF-H1 Oil f.Food / 0.25
  • Attached with: RF27 Helical gear
