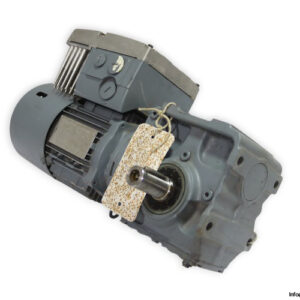

SEW S47 DT71D4/BMG/MM03 Helical-Worm Gearmotor

SEW S47 DT71D4/BMG/MM03 Parallel-Shaft Helical Gearmotor with Inverter

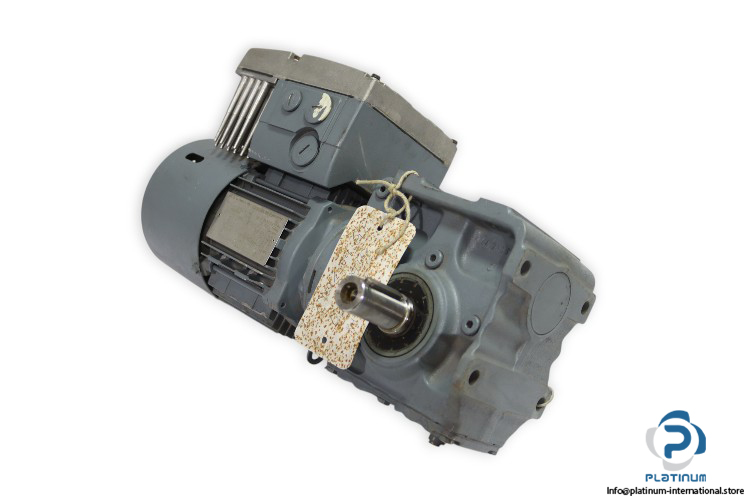

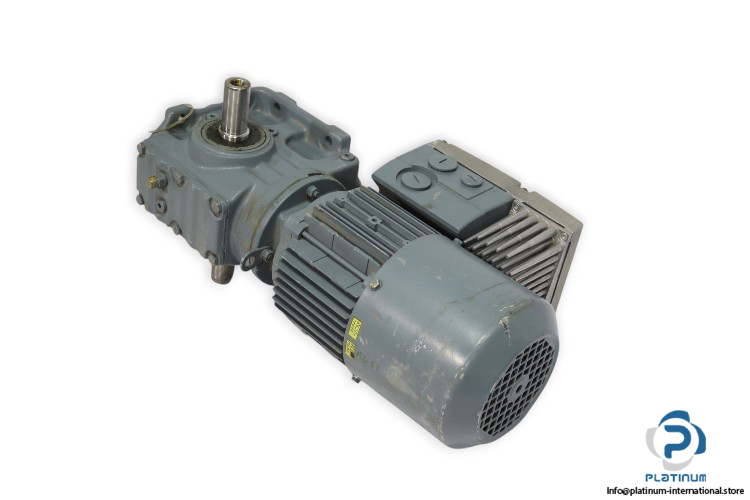

The SEW S47 DT71D4/BMG/MM03 is a high-quality parallel-shaft helical gearmotor designed for reliable performance in industrial applications. With robust construction, precise speed control, and energy-efficient operation, it ensures durability and versatility. This unit comes complete with an SEW-EURODRIVE MM03C-503-00 inverter for advanced motor control.

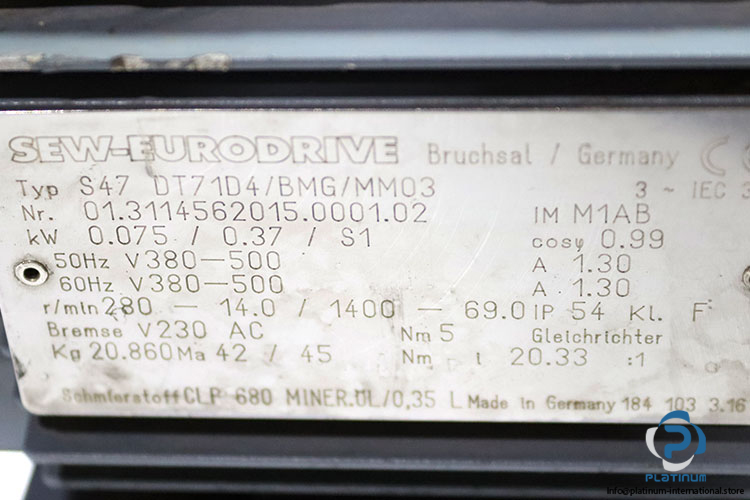

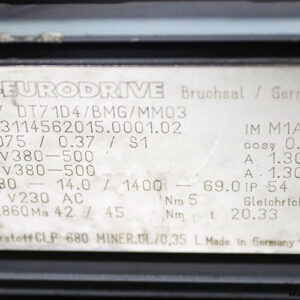

Manufacturer: SEW
Type: Parallel-Shaft Helical Gearmotor
Model: S47 DT71D4/BMG/MM03
Part No.: 01.3114562015.0001.02

Technical information (Gearmotor)

• Rated Power: 0.075 / 0.37 kW
• Voltage / Frequency: 380“500 V, 50/60 Hz
• Current: 1.30 A
• Speed (Input): 1400 rpm
• Speed (Output): 280 / 14.0 / 1400 / 69 rpm
• Gear Ratio (i): 20.33:1
• Brake: V 230 AC, 5 Nm
• Insulation Class: F
• Protection Class: IP54
• cos φ (Power Factor): 0.99
• Lubrication: CLP 680 Mineral Oil, 0.35 L
• Duty Cycle: Continuous (S1)
• Mounting: IM M1AB

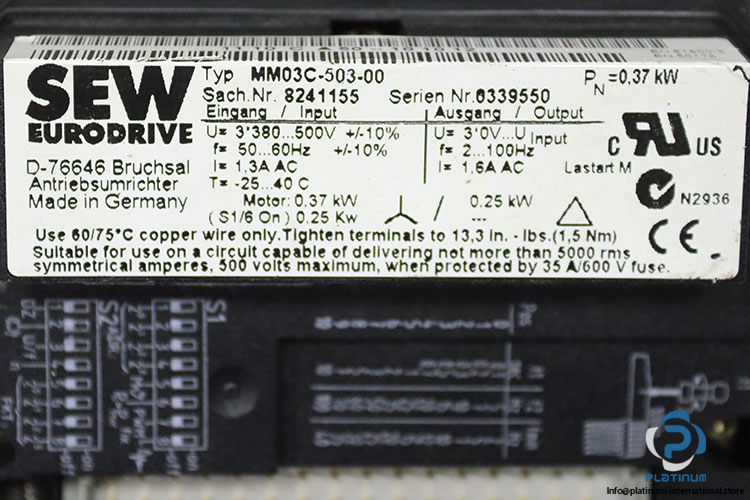

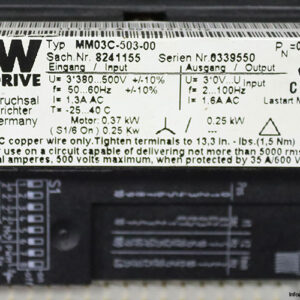

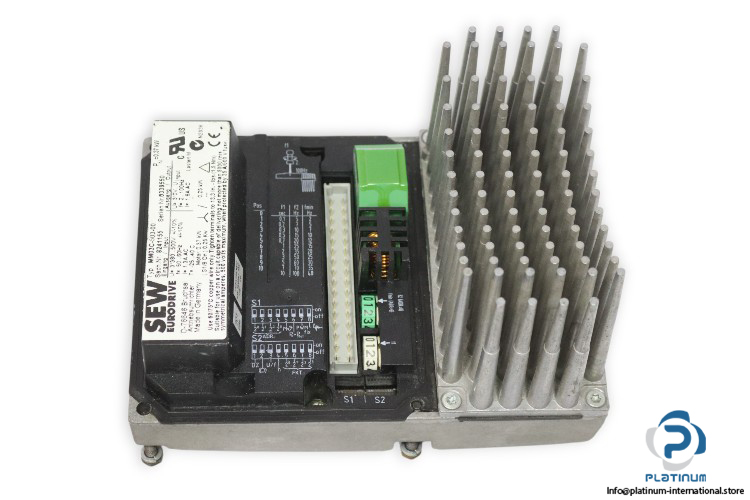

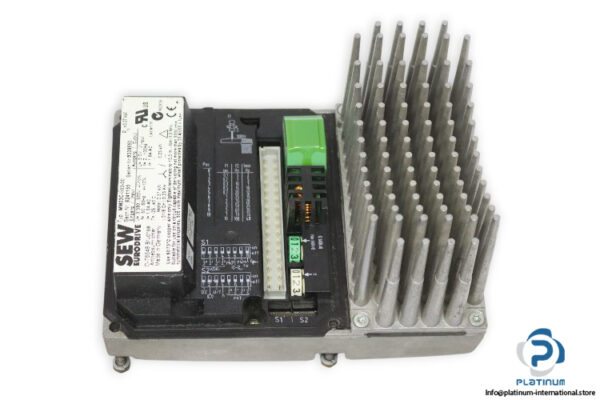

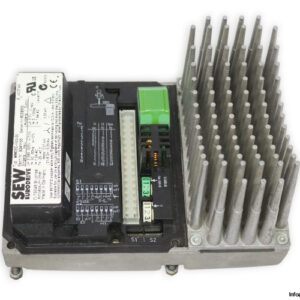

Attachment (Inverter)

• Model: SEW-EURODRIVE MM03C-503-00
• Sach-Nr.: 8241155
• Serial Number: 0339550
• Rated Power: 0.37 kW
• Input: 3-phase, 380“500 V ±10%, 50“60 Hz ±10%, 1.3 A AC
• Output: 3-phase, U = V input, Frequency: 2“100 Hz, Current: 1.6 A AC
• Motor Power: 0.37 kW (0.25 kW at S1/6 duty)
• Temperature: -25 to 40 °C (UL / CE certified, N2936)
• Notes:
  • Suitable for circuits ‰¤ 5000 rms symmetrical amperes, 500 V max with 35 A / 600 V fuse
  • Use 60/75 °C copper wire only
  • Torque: 13.3 in.lbs (1.5 Nm)
