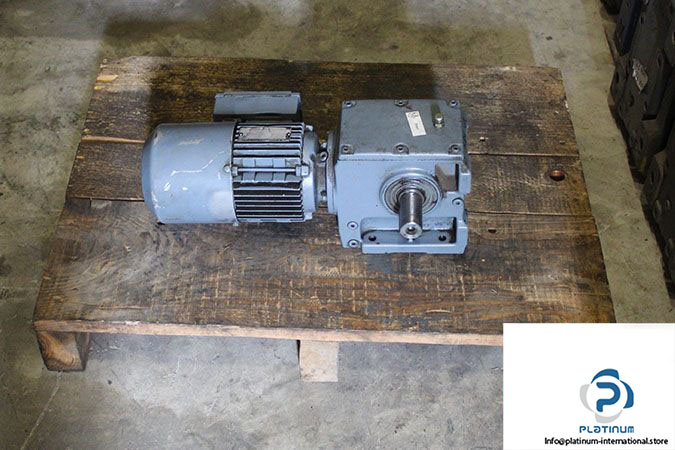

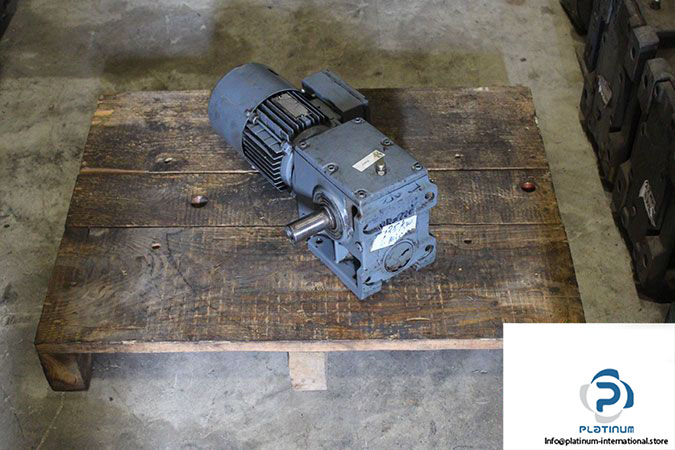

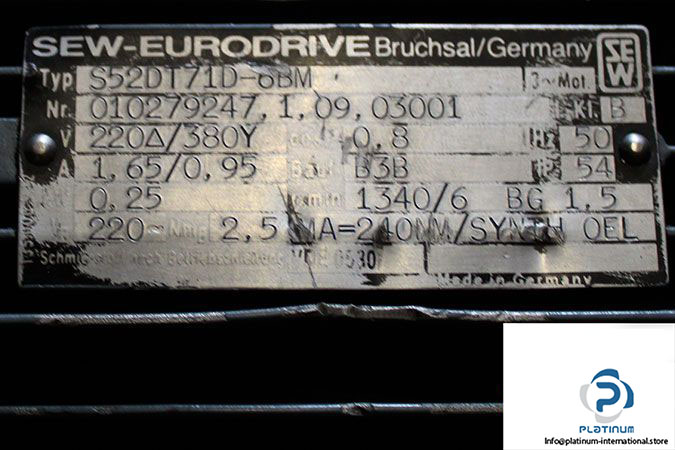

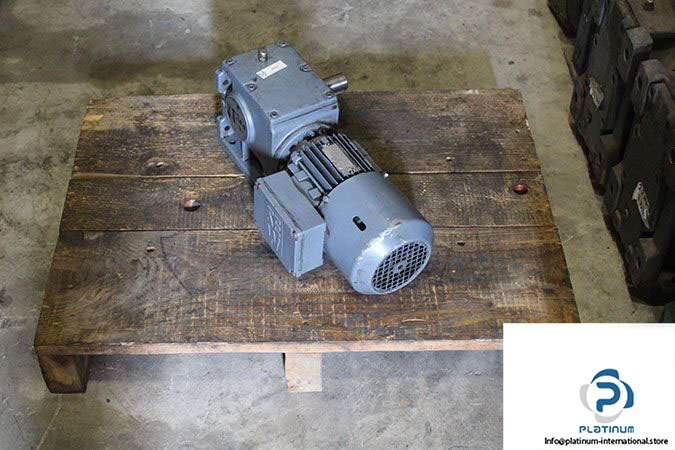

SEW S52DT71D-6BM Helical Worm Gearmotor

Manufacturer: Sew-Eurodrive

Type: Helical Worm Gearmotor

Model: S52 DT71D-6BM

Sew S52 Gear

Gear Type (S): Helical Worm Gear Unit, Foot-Mounted

Gear Box Size: 52

Ratio: 223.33

Rated Torque: 240 Nm

Shaft Diameter: 30 mm

Gear Unit Output Speed: 6 r/min

Lubrication: SYNTH.OIL

Oil Quantity: 1.5 L

Sew DT71D-6BM AC Motor

Motor Size: 71

No. of Pole: 6

Nominal Voltage (Delta): 220 V

Nominal Voltage (Star): 380 V

Rated Current (Delta): 1.65 A

Rated Current (Star): 0.95 A

Rated Power: 0.25 Kw

Frequency: 50 Hz

Motor Speed: 1340 r/min

Power Factor: 0.80 %

Insulation Class: B

Mounting Position: B3B

Degree of Protection: IP54

Brake Voltage: 220 V

Brake Torque: 2.5 Nm

Double-Disc, Spring-Loaded Brake

Gross Weight: 24.2 kg
