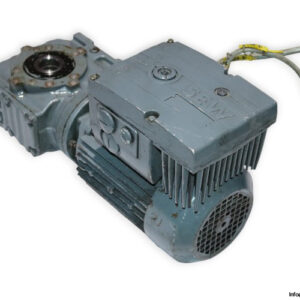

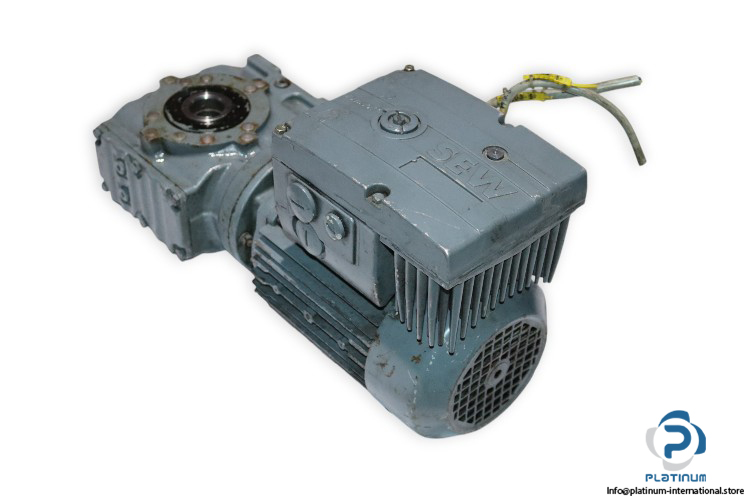

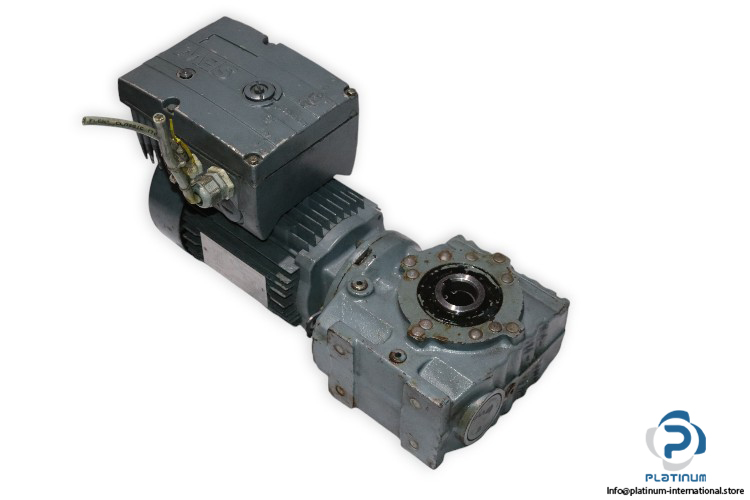

SEW SA47 DT80N4/MM07/BW1 Helical-Worm Gearmotor

SEW SA47 DT80N4/MM07/BW1 HELICAL-WORM GEARMOTOR

The SEW SA47 DT80N4/MM07/BW1 Helical-Worm Gearmotor is designed for high-efficiency power transmission in industrial applications. Featuring a wide range of input and output speeds, high torque, and durable stainless steel components, this gearmotor ensures reliable performance across various operational conditions.

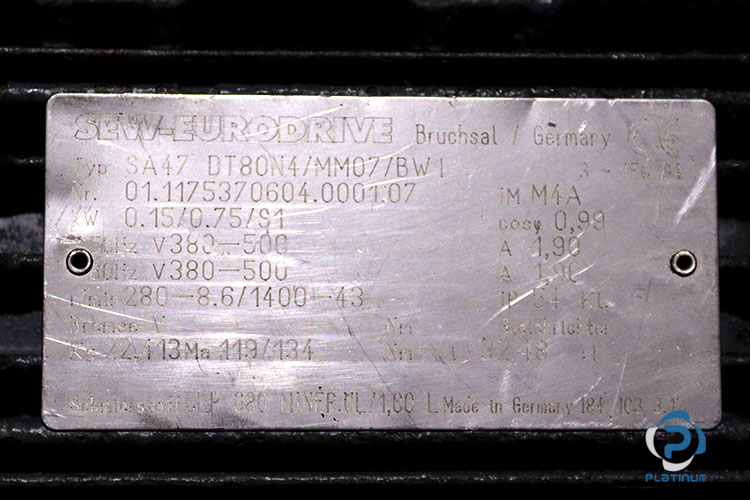

Manufacturer: SEW

Type: HELICAL-WORM GEARMOTOR

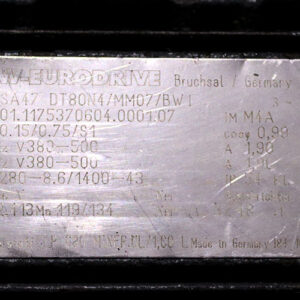

Model: SA47 DT80N4/MM07/BW1

Part no: 01.1175370604.0001.07

Technical Specifications

• Gear unit: SA47
• Input speed [r/min]: 280 – 1400
• Output speed [r/min]: 8.6 – 43
• Total ratio: 32.18
• Mounting position: M4A
• Output torque [Nm]: 119 / 134
• Motor power [kW]: 0.15 / 0.75
• Cyclic duration factor S1-S10: S1
• Hollow shaft: 30 mm
• Output shaft material: Stainless steel X17CrNi16-2+QT900/X5CrNiCuNB16.4
• Design: Hollow shaft
• Multi range-voltage 50Hz [V]: 380-500
• Nominal current [A]: 1.9
• Multi range-voltage 60Hz [V]: 380-500
• Nominal current [A]: 1.9
• MM rated OP current [A]: 2.50
• Thermal cl. [°C]/Enclosure [IP]: F / 54

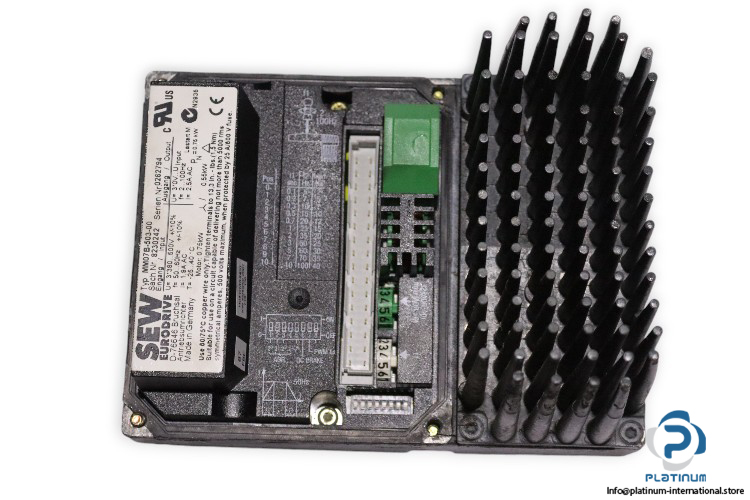

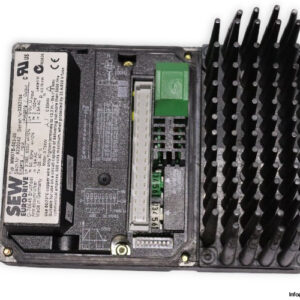

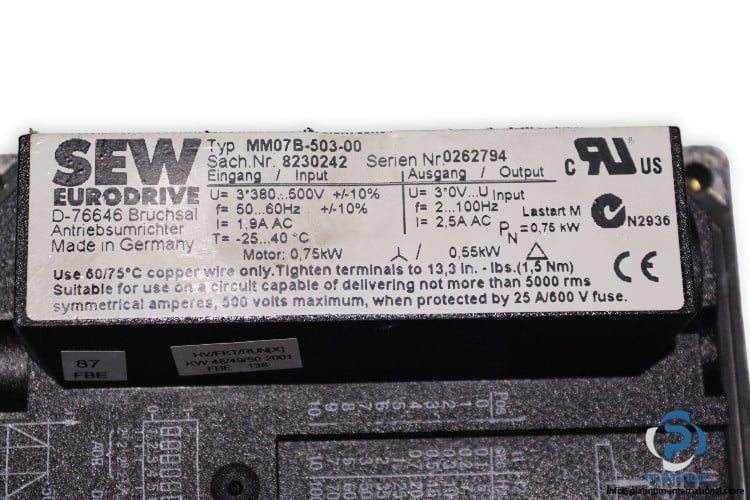

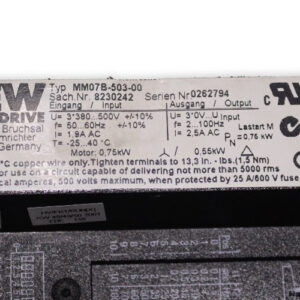

• Attached with: SEW MM07B-503-00 MOVIMOT INVERTER DRIVE

Input Specifications

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.9 A
• Frequency: 50 / 60 Hz

Output Specifications

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 2.5 A
• Frequency: 2 to 100 Hz
