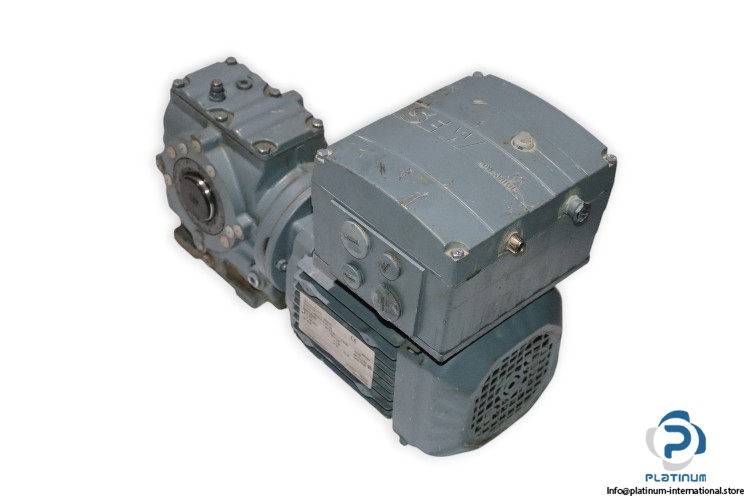

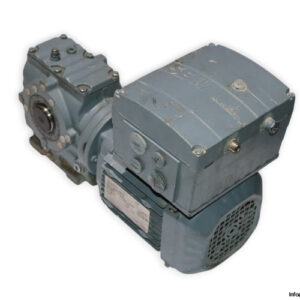

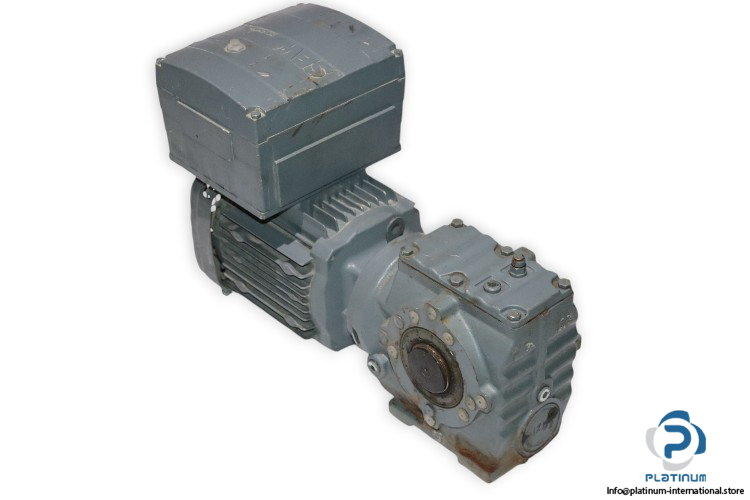

SEW SA47/T DRS80S4/MSW/TF Helical-Worm Gearmotor

SEW SA47/T DRS80S4/MSW/TF HELICAL-WORM GEARMOTOR

The SEW SA47/T DRS80S4/MSW/TF Helical-Worm Gearmotor provides efficient power transmission in industrial applications. With a total ratio of 23.20 and output torque of 98 Nm, this gearmotor is designed for reliable performance, enhanced by its hollow shaft and lubrication system.

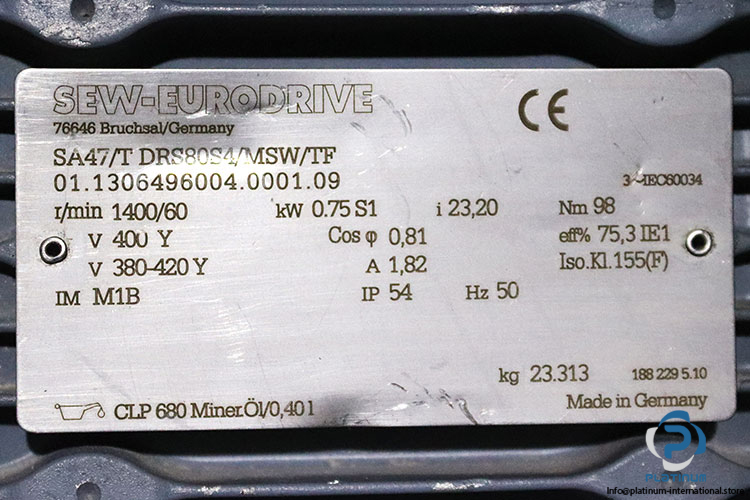

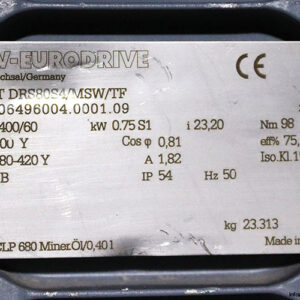

Manufacturer: SEW

Type: HELICAL-WORM GEARMOTOR

Model: SA47/T DRS80S4/MSW/TF

Part No.: 01.1306496004.0001.09

Technical Specifications

• Gear unit: SA47/T
• Speed [r/min]: 1400 / 60
• Total ratio: 23.20 / finite
• No. of teeth nom./denominator: 116/5
• Mounting position: M1B
• Output torque [Nm]: 98
• Service factor SEW-FB: 1.55
• Lubricant / volume [l]: CLP 680 Miner.Oil / 0.40
• Motor power [kW]: 0.75
• Cyclic duration factor S1-S10: S1
• Hollow shaft: 30mm
• Design: Hollow shaft
• Motor frequency [Hz]: 50
• Voltage range [V]: 380-420 star
• Nominal current [A]: 1.82
• Thermal cl. [°C] / Enclosure [IP]: 155(F) / 54

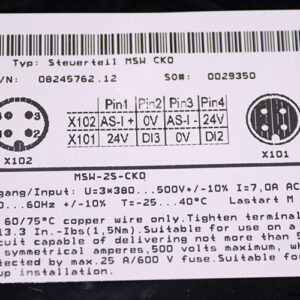

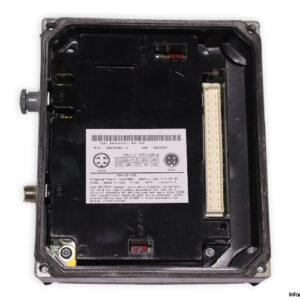

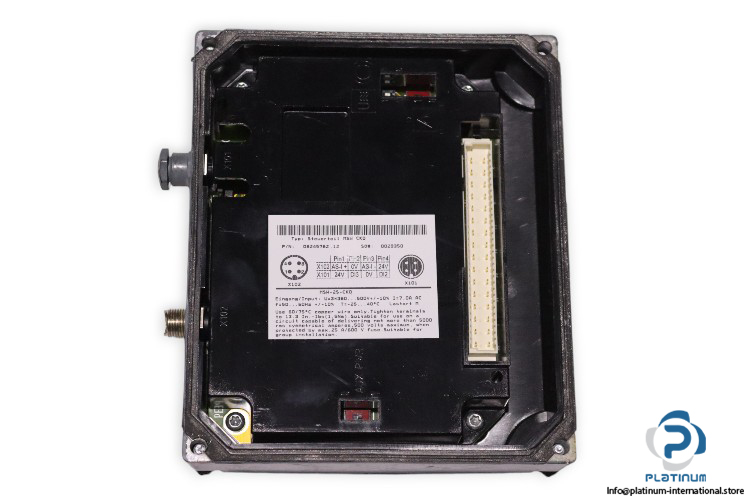

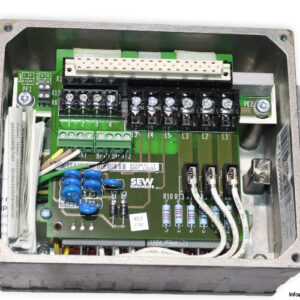

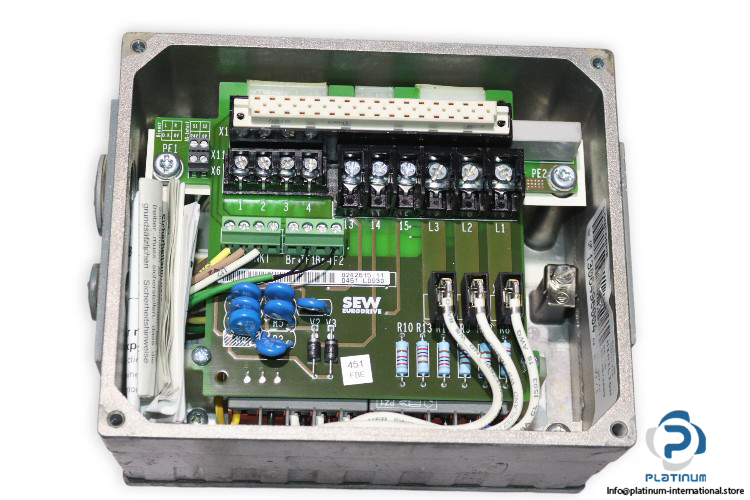

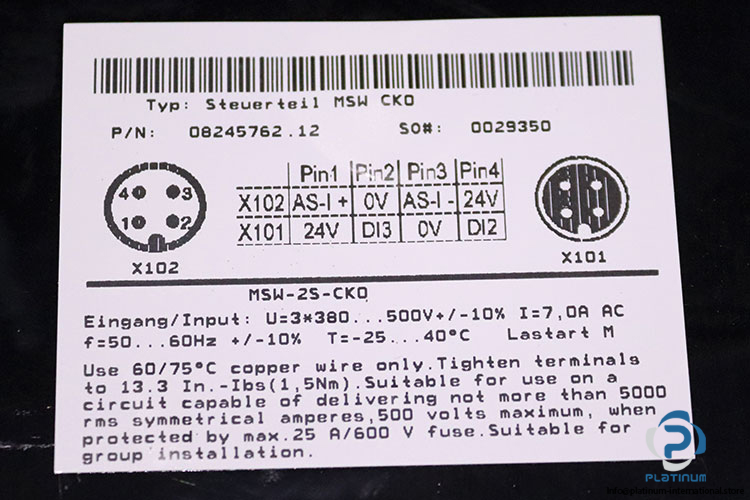

• Attached with: SEW MSW-2S-CK0 MOVI-SWITCH
• Input Supply Voltage: 3-Phase 380 / 500 V AC
• Rated Current: 7 A
• Frequency: 50 / 60 Hz
