SEW SF47 DT80N4/MM07/BW1/RC1A/AZSK Helical-Worm Gearmotor
SEW SF47 DT80N4 Helical-Worm Gearmotor with MOVIMOT MM07C-503-30 Inverter Drive “ 280-1400 r/min speed, 74/80 Nm torque, 380-500V multi-range voltage, IP54 protection, and precise speed control.

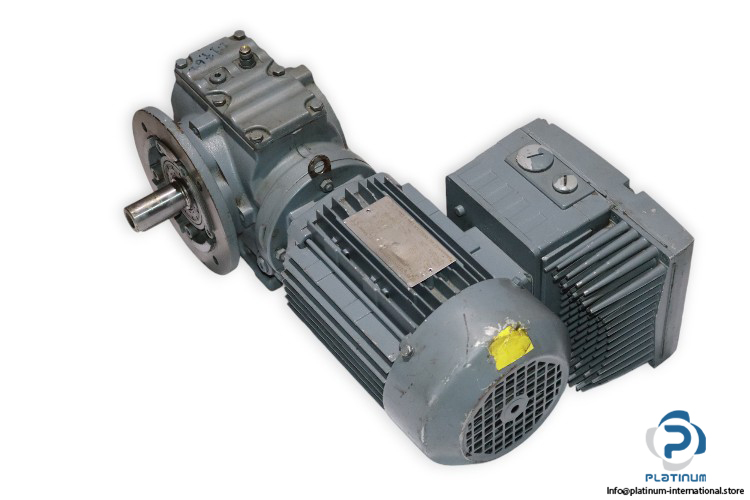

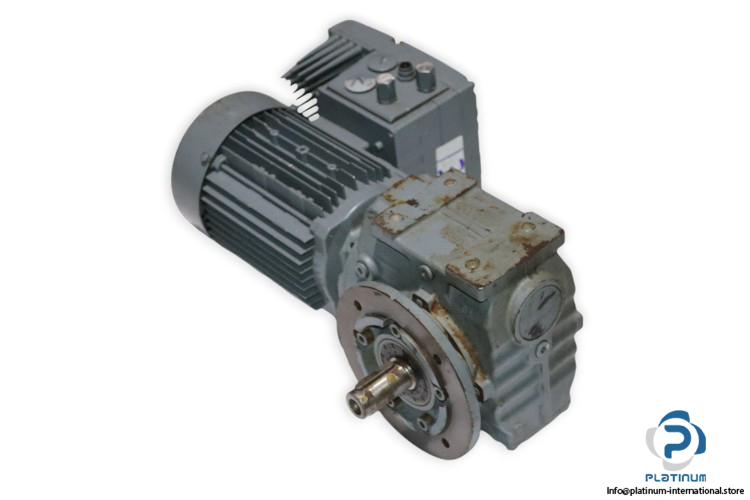

SEW Helical-Worm Gearmotor SF47 DT80N4/MM07/BW1/RC1A/AZSK
The SEW SF47 DT80N4/MM07/BW1/RC1A/AZSK Helical-Worm Gearmotor is a high-performance gearmotor engineered for efficiency and durability in industrial applications. With its robust design, precision gearing, and integrated SEW MOVIMOT Inverter Drive, this unit offers reliable speed and torque control for various demanding environments.

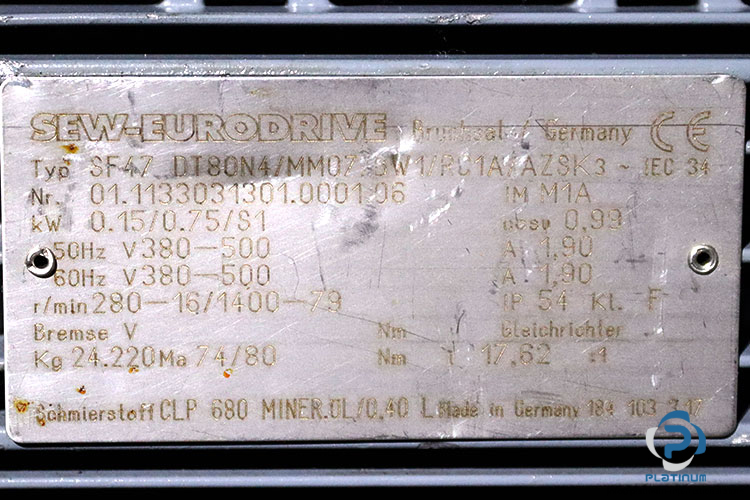

Technical Specifications:
Gear Unit Specifications:
- Model: SF47
- Speed (50Hz) [r/min]: 280 – 1400
- Output Speed [r/min]: 16 – 79
- Total Ratio: 17.62
- Output Torque [Nm]: 74 / 80
- Service Factor SEW-FB: 2.00 / 1.40
- Mounting Position: M1A
- Lubricant / Volume [l]: CLP 680 Mineral Oil / 0.40
- Output Shaft End: 25×50 mm lg.
- Design: Flange-mounted version
- Flange Size: 160 mm
Motor Specifications:
- Motor Power [kW]: 0.15 / 0.75
- Motor Frequency [Hz]: 50
- Cyclic Duration Factor: S1
- Multi Range Voltage (50Hz) [V]: 380-500
- Multi Range Voltage (60Hz) [V]: 380-500
- MM Rated Main Current [A]: 1.90
- MM Rated Output Current [A]: 2.50
- Thermal Class / Enclosure Rating: (F) / IP54

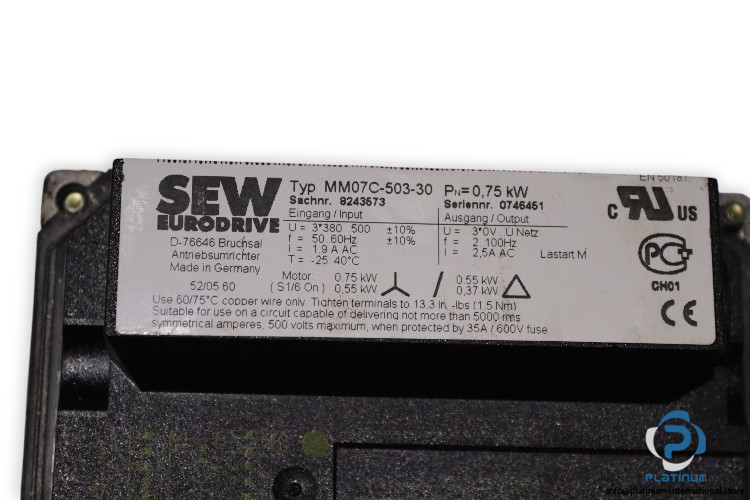

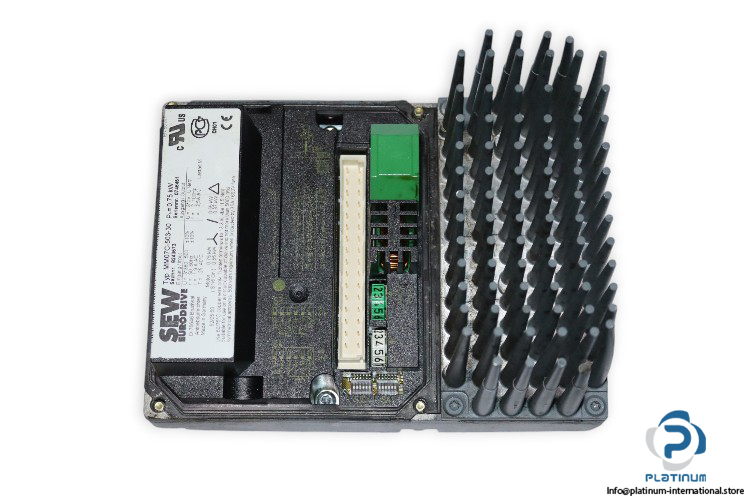

SEW MOVIMOT MM07C-503-30 Inverter Drive Specifications:
Input:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.9 A
- Frequency: 50 / 60 Hz
Output:
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 2.5 A
- Frequency Range: 2 to 100 Hz
The SEW Helical-Worm Gearmotor SF47 DT80N4/MM07/BW1/RC1A/AZSK with the integrated MOVIMOT MM07C-503-30 Inverter Drive is built to provide precise speed and torque control, ensuring efficient and reliable performance in demanding industrial applications.
