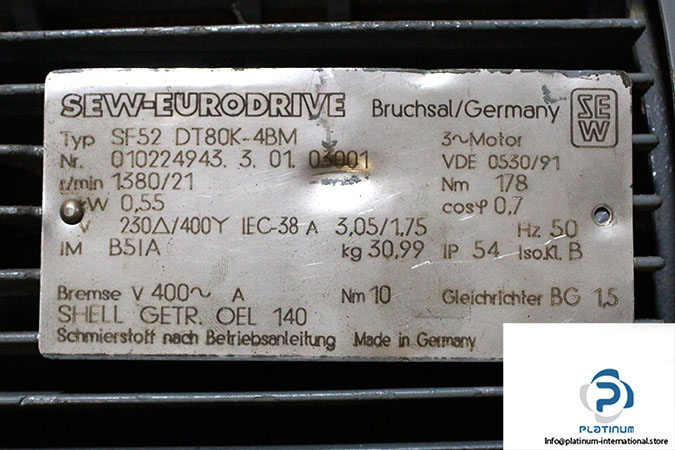

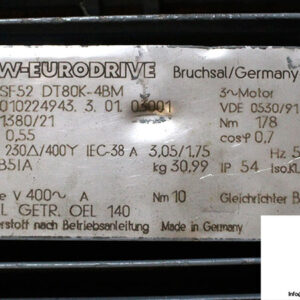

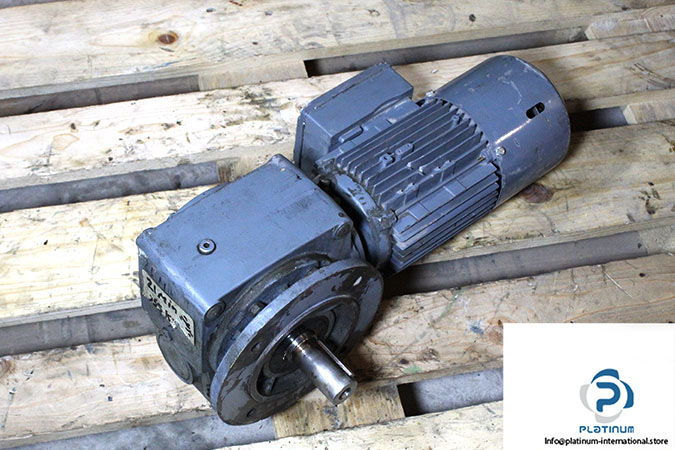

SEW SF52 DT80K-4BM Gear Motor
Manufacturer: SEW
Type: Gear Motor
Model: SF52DT80K-4BM
Motor Speed [r/min]: 1380/21.0
Ratio [i]: 67.2
Motor Power [kW]: 0.55
Motor Frequency [Hz]: 50
Cyclic Duration factor: S1
Motor Voltage [V]: 230/400 Delta/Star
Nominal Current [A]: 3.05/1.75
Cos Phi: 0,70
Rated Torque [Nm]: 178
Thermal Class/Enclosure [IP]: B/54
Brake: BG1.5
Brake Voltage [V]: 400
Brake Torque [Nm]: 10.0
Weight [kg]: 30,5
