SEW SF57 DT90S4/MM15/BW1 Helical- Worm Gearmotor

SEW SF57 DT90S4/MM15/BW1 HELICAL- WORM GEARMOTOR

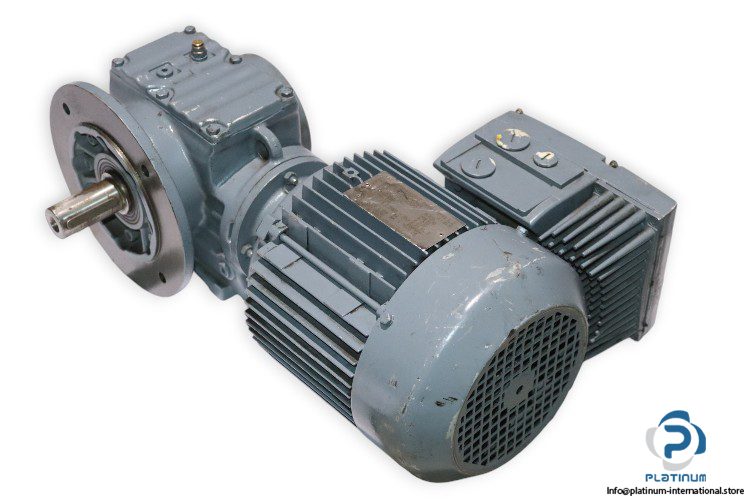

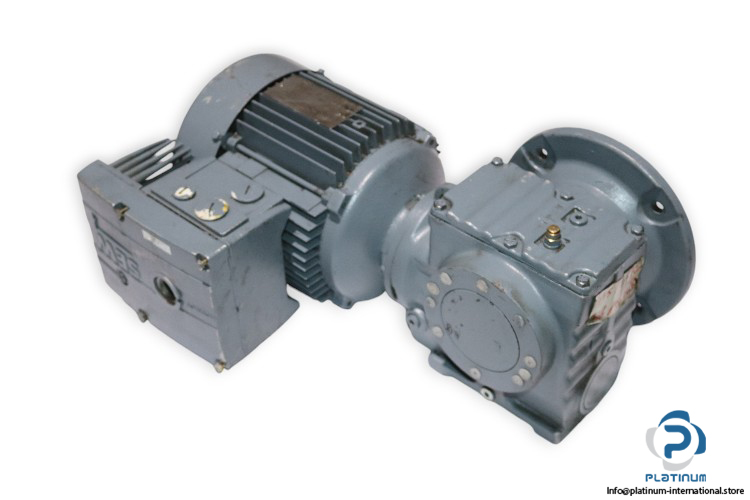

The SEW SF57 DT90S4/MM15/BW1 Helical-Worm Gearmotor combines high-efficiency and precision with a 38.23 total ratio, providing consistent performance for various industrial applications. It features a flange-mounted design with a 136 Nm output torque and is equipped with a MOVIMOT inverter drive for enhanced control.

Manufacturer: SEW

Type: HELICAL- WORM GEARMOTOR

Model: SF57 DT90S4/MM15/BW1

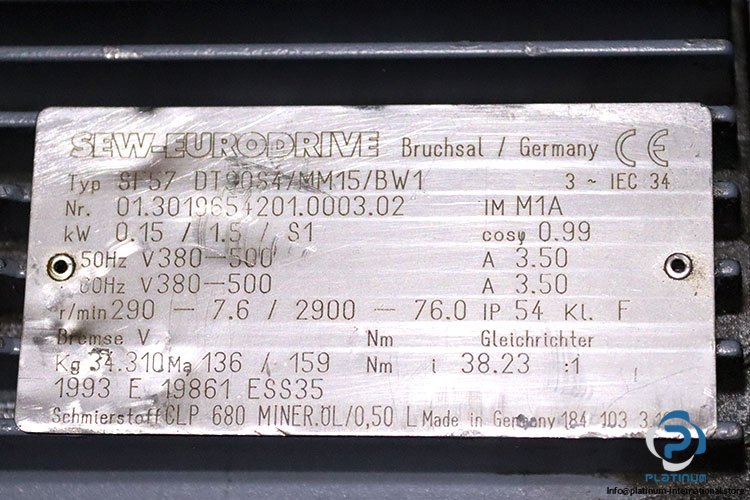

Part No: 01.3019654201.0003.02

Technical Specifications

• Gear Unit: SF57
• Input Speed [r/min]: 290 – 2900
• Output Speed [r/min]: 7.6 – 76.0
• Total Ratio: 38.23
• Mounting Position: M1A
• Output Torque [Nm]: 136 / 159
• Service Factor SEW-FB: 2.20 / 1.30
• Lubricant Volume [l]: 0.50
• Output Shaft End: 30×60 mm lg.
• Design: Flange-mounted version
• Flange: 200 mm
• Motor Power [kW]: 0.15 / 1.5
• Motor Frequency [Hz]: 100
• Cyclic Duration Factor S1-S10: S1
• Multi Range-Voltage 50Hz [V]: 380-500
• MM Rated Main Current [A]: 3.50
• Multi Range-Voltage 60Hz [V]: 380-500
• MM Rated O/P Current [A]: 4.00
• Thermal Cl. [°C] / Enclosure [IP]: F / 54

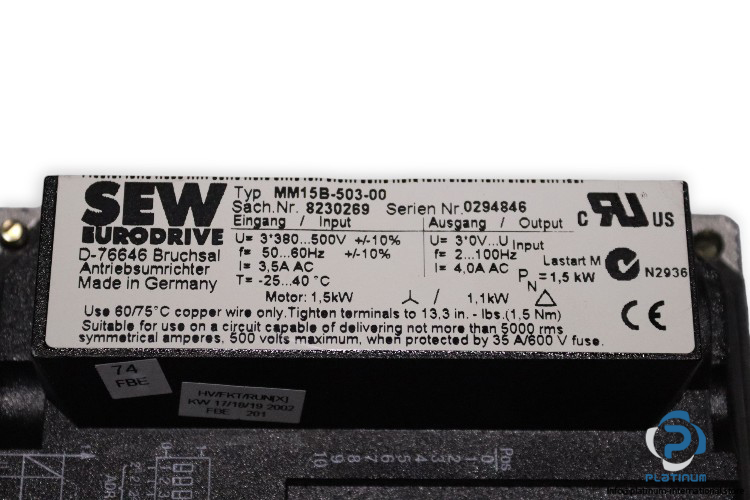

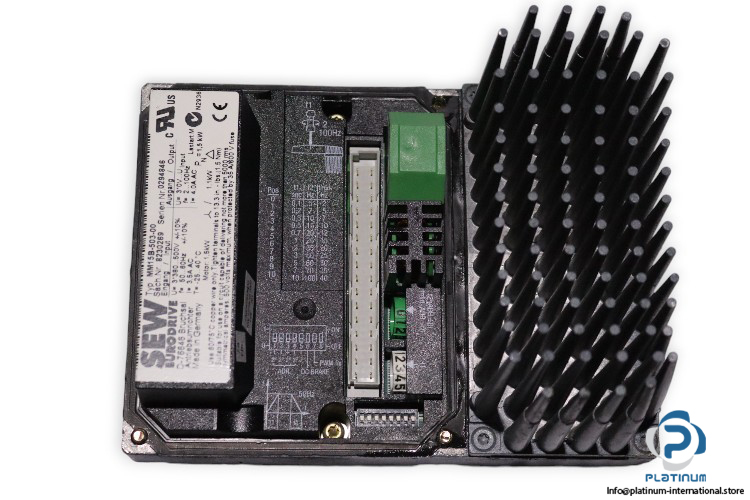

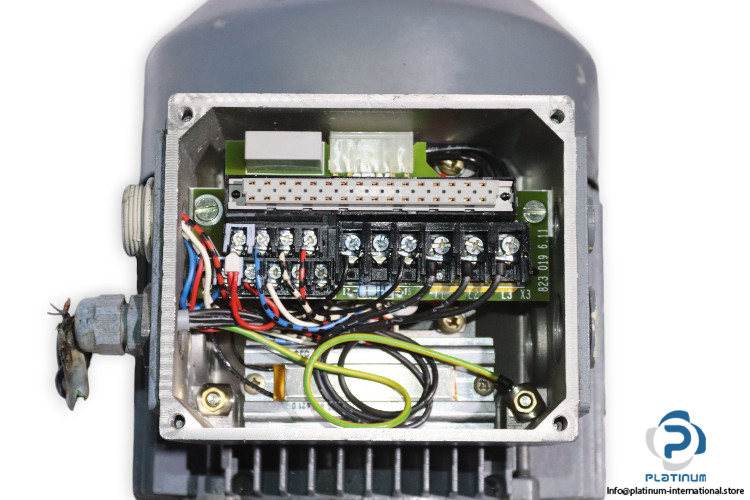

Attached with: SEW MM15B-503-00 MOVIMOT INVERTER DRIVE

Input:

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 3.5 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 4 A
• Frequency: 2 to 100 Hz
