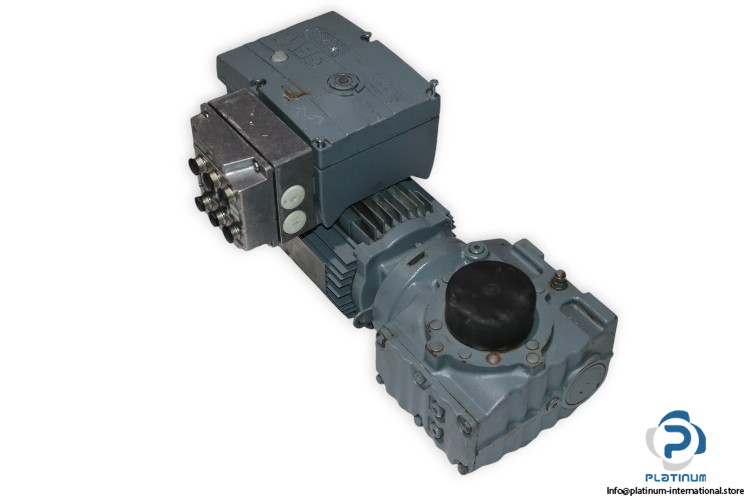

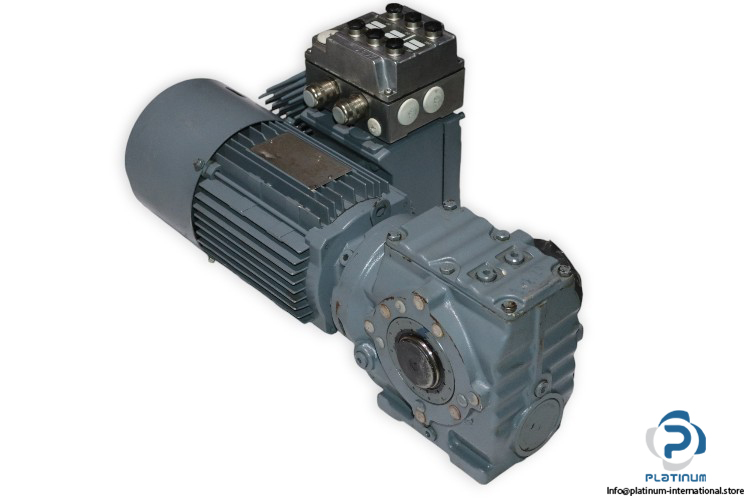

SEW SH47/T DT80K4/BMG/MM07/MFP Helical-Worm Gearmotor

SEW SH47/T DT80K4/BMG/MM07/MFP HELICAL-WORM GEARMOTOR

The SEW SH47/T DT80K4/BMG/MM07/MFP Helical-Worm Gearmotor is designed for high-efficiency power transmission with a 7.28 total ratio and various motor and gear specifications. This gearmotor features a hollow shaft design with shrink disc, making it ideal for demanding industrial applications requiring reliable torque and speed control.

Manufacturer: SEW

Type: Helical-worm gearmotor

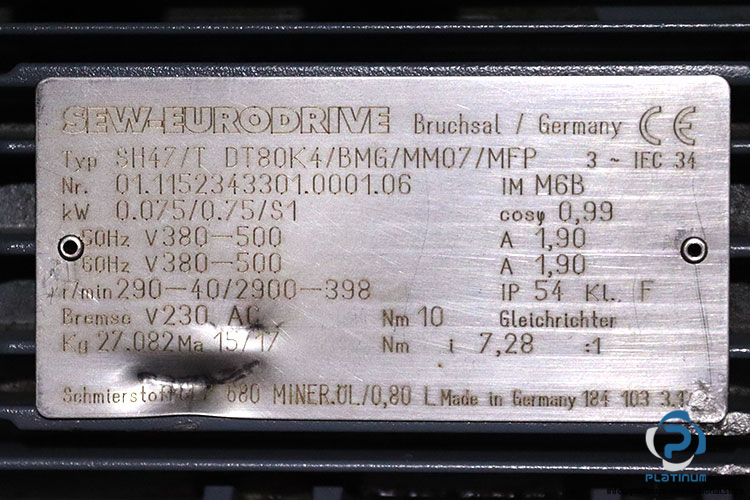

Model: SH47/T DT80K4/BMG/MM07/MFP

Part No: 01.1152343301.0001.06

Technical Specifications

• Gear unit: SH47/T
• Input speed [r/min]: 290 – 2900
• Output speed [r/min]: 40 – 398
• Total ratio: 7,28
• Output torque [Nm]: 15 / 17
• Service factor SEW-FB: 7,60 / 2,50
• Mounting position: M6B
• Lubricant / volume [l]: CLP 680 Miner.Oil / 0,80
• Hollow shaft: 30 mm
• Design: Hollow shaft with shrink disc
• Motor power [kW]: 0.075 / 0.75
• Motor frequency [Hz]: 100
• Cyclic duration factor S1-S10: S1
• Multi range-voltage 50Hz [V]: 380-500
• Multi range-voltage 60Hz [V]: 380-500
• MM rated main current [A]: 1.90
• MM rated O/P current [A]: 2.50
• Thermal cl. [°C] / Enclosure [IP]: F / 54
• Brake voltage [V] / Torque [Nm]: 230 AC / 10
• Multi range-voltage brake [V]: 230 AC

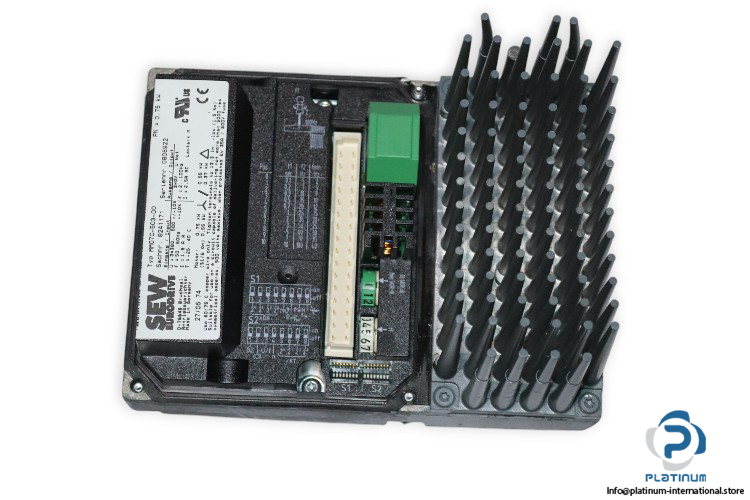

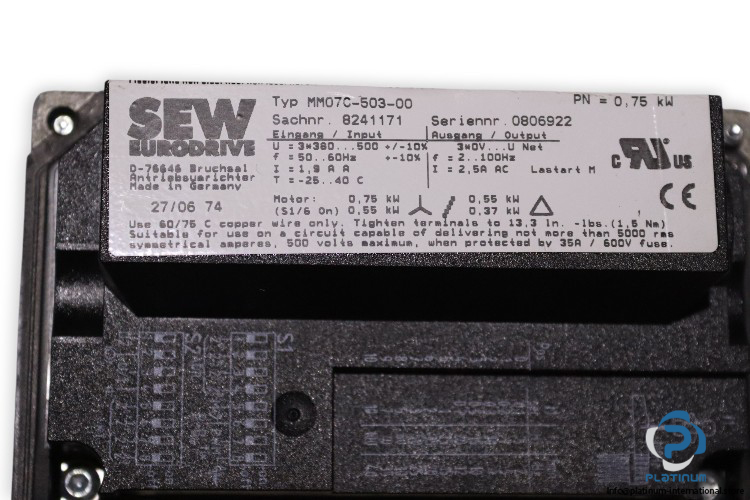

• Attached with: SEW MM07C-503-00 MOVIMOT INVERTER DRIVE

Input Specifications

• Supply Voltage: 3-Phase 380 / 500 V AC
• Rated Current: 1.9 A
• Frequency: 50 / 60 Hz
• Power: 0.75 kW

Output Specifications

• Rated Voltage: 3-Phase 0 / 380 “ 500 V AC
• Rated Current: 2.5 A
• Frequency: 2 / 100 Hz
