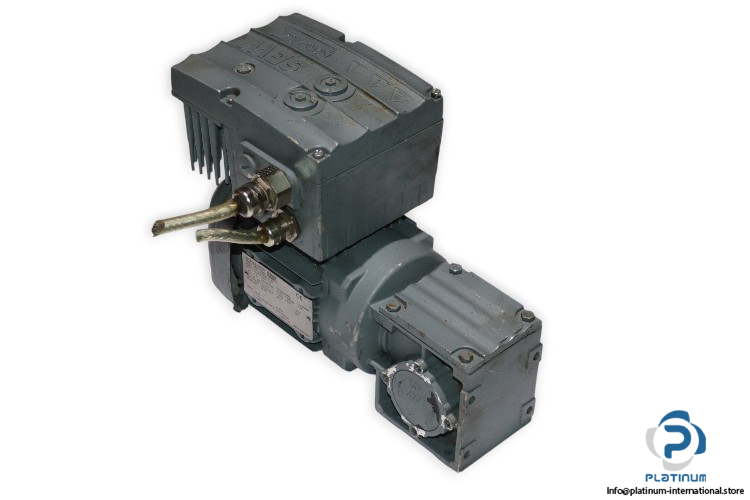

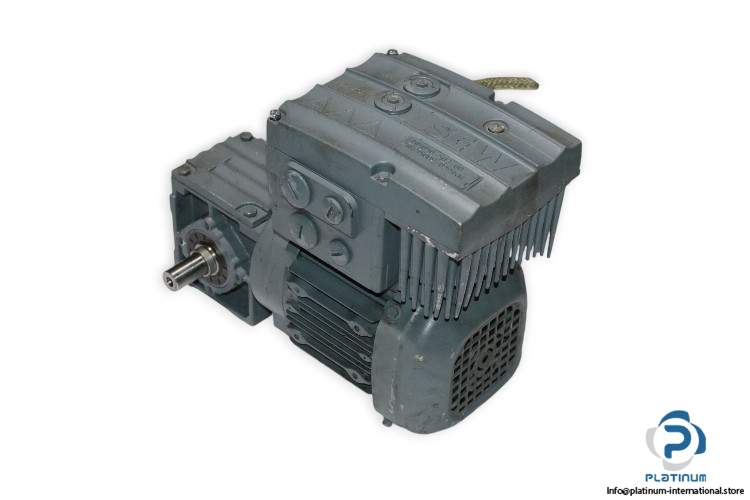

SEW W20 DRS71S4/MM05/LN Spiroplan Gearmotor

SEW W20 DRS71S4/MM05/LN SPIROPLAN GEARMOTOR

The SEW W20 DRS71S4/MM05/LN Spiroplan Gearmotor is designed for high efficiency and reliable performance in industrial applications. Featuring a 32.5 total ratio, foot-mounted design, and robust motor power, this gearmotor ensures optimal output speed and torque for a variety of operations.

Manufacturer: SEW

Type: SPIROPLAN GEARMOTOR

Model: W20 DRS71S4/MM05/LN

Part No: 96.7707986201.0002.18

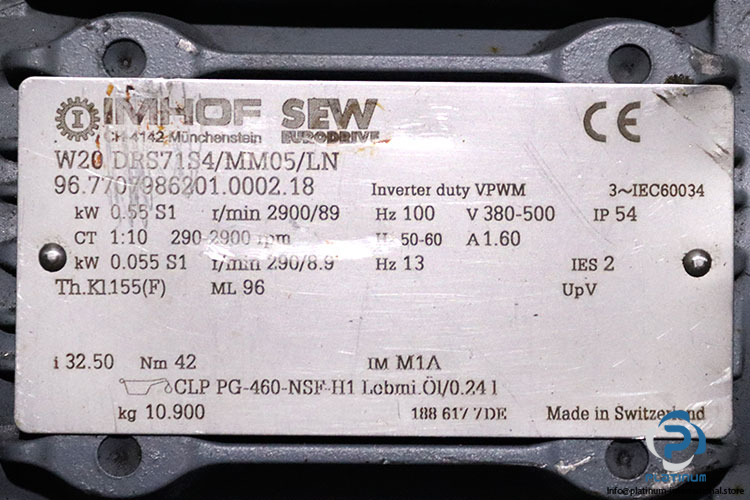

Technical Specifications

• Gear Unit: W20
• Input Speed [r/min]: 2900 – 290
• Output Speed [r/min]: 89 – 8.9
• Total Ratio: 32.50 / finite
• No. of Teeth Nom./Denominator: 65/2
• Ma Max [Nm]: 40
• Mounting Position: M1A
• Output Torque [Nm]: 42
• Lubricant / Volume [l]: CLP PG-460-NSF-H1 Oil f.Food / 0.24
• Output Shaft End: 20x40mm lg.
• Design: Foot-mounted version
• Output Oil Seal Material: FKM
• Service Factor SEW-FB: 0.95
• Motor Power [kW]: 0.55 / 0.055
• Motor Frequency [Hz]: 100
• Cyclic Duration Factor S1-S10: S1
• Multi Range-Voltage 50Hz [V]: 380-500
• MM Rated Main Current [A]: 1.60
• Multi Range-Voltage 60Hz [V]: 380-500
• MM Rated O/P Current [A]: 2.00
• Thermal Cl. [°C]/Enclosure [IP]: 155(F) / 54

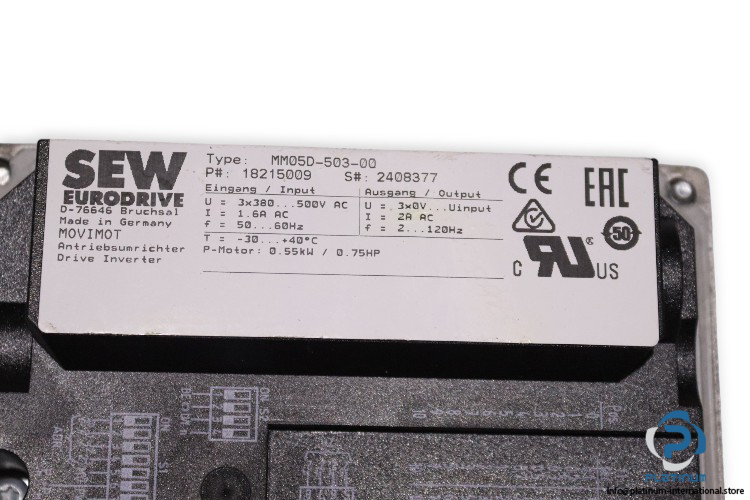

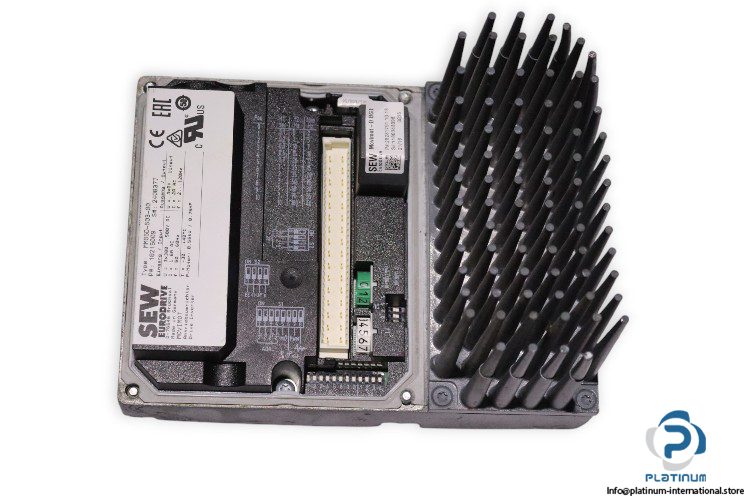

Attached with: SEW MM05D-503-00 MOVIMOT INVERTER DRIVE

Input:

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.6 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 2 A
• Frequency: 2 / 120 Hz
