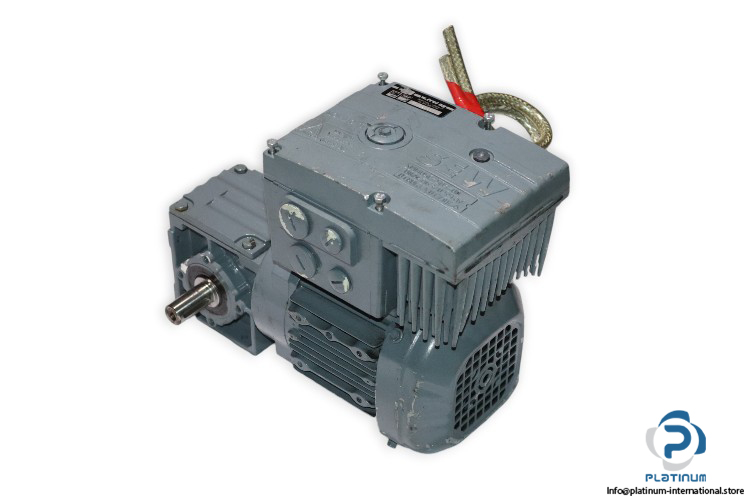

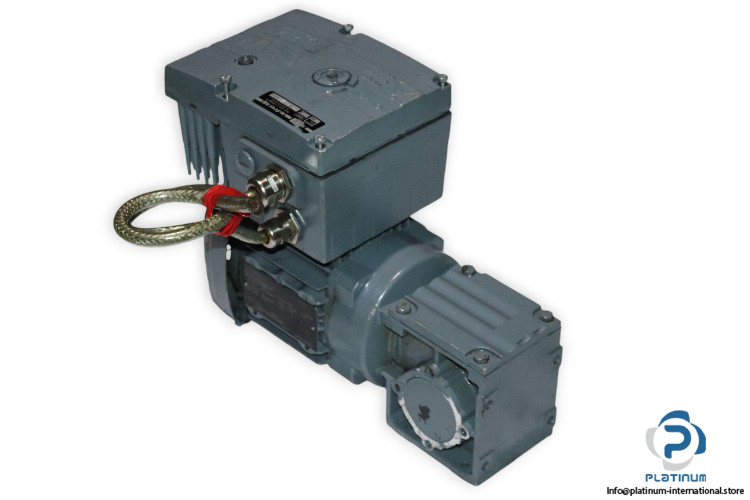

SEW W20 DRS71S4/MM05/LN Spiroplan Gearmotor

SEW W20 DRS71S4/MM05/LN SPIROPLAN GEARMOTOR

The SEW W20 DRS71S4/MM05/LN Spiroplan Gearmotor is a high-performance motor designed for reliable power transmission. With a total ratio of 32.50 and a maximum output torque of 42 Nm, it provides excellent efficiency in various industrial applications. The attached SEW MOVIMOT inverter drive ensures smooth and adjustable motor speed control, making it ideal for precise operational needs.

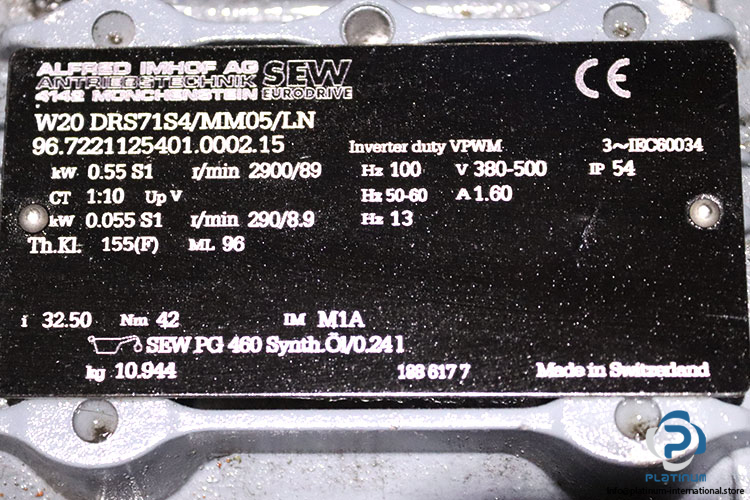

Manufacturer: SEW

Type: Spiroplan Gearmotor

Model: W20 DRS71S4/MM05/LN

Part No: 96.7221125401.0002.15

Technical Specifications

• Gear Unit: W20
• Input Speed [r/min]: 2900 – 290
• Output Speed [r/min]: 89 – 8.9
• Total Ratio: 32,50 / finite
• Max Torque [Nm]: 40
• Output Torque [Nm]: 42
• Service Factor SEW-FB: 0.95
• Mounting Position: M1A
• Lubricant / Volume [l]: SEW PG 460 Synth.Oil / 0.24
• Output Shaft End: 20x40mm lg.
• Design: Foot-mounted version
• Motor Power [kW]: 0.55 / 0.055
• Motor Frequency [Hz]: 100
• Cyclic Duration Factor S1-S10: S1
• Setting Range (CT): 1:10
• Motor Frequency min. [Hz]: 13
• Motor Voltage [V]: 380-500
• Line Frequency [Hz]: 50-60
• MM Rated Main Current [A]: 1.60
• MM Rated Output Current [A]: 2.00
• Thermal Class [°C] / Enclosure [IP]: 155 (F) / 54

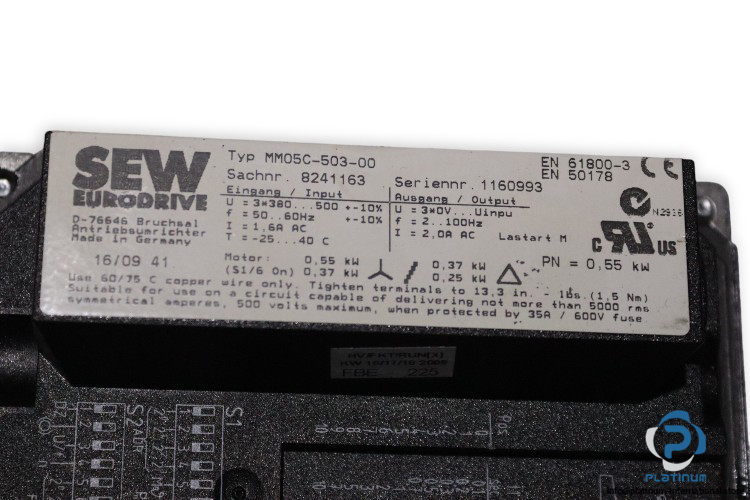

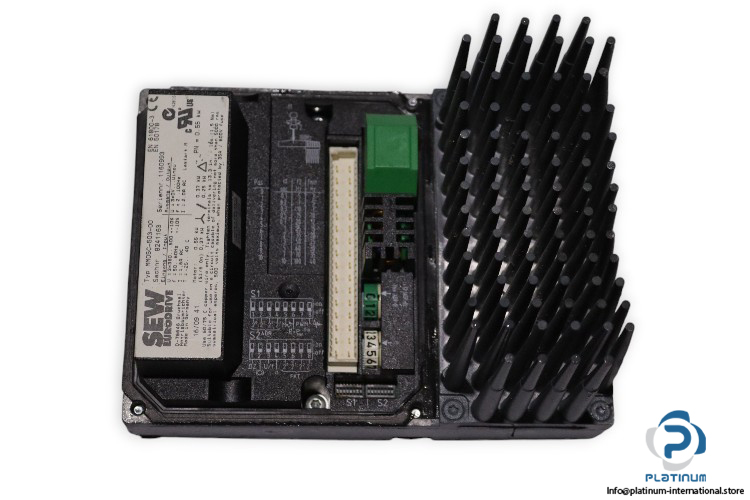

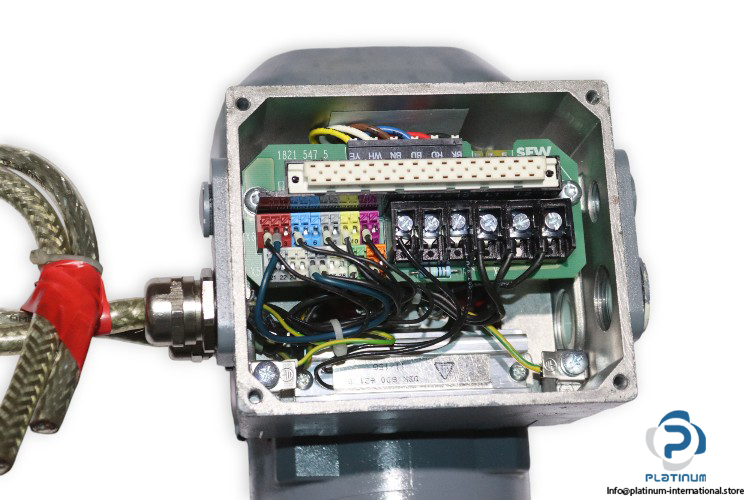

Attached with SEW MM05C-503-00 MOVIMOT Inverter Drive

Input:

• Supply Voltage: 3-Phase 380 / 500 V AC
• Rated Current: 1.6 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 “ 500 V AC
• Rated Current: 2 A
• Frequency: 2 / 100 Hz
