SEW W20 DT71D4/MM05/BW1 96.7221125401.0001.15 Gear Motor
Gearmotor
High-performance SEW-Eurodrive synchronous servo gearmotor, 0.055/0.55 kW, ratio 32.50, output torque 31/42 Nm with integrated MOVIMOT MM05C-503-00 inverter drive. Ideal for industrial automation, conveyors, and precise motion control systems.SEW-Eurodrive W20DT71D4/MM05/BW1 Synchronous Servo Gearmotor

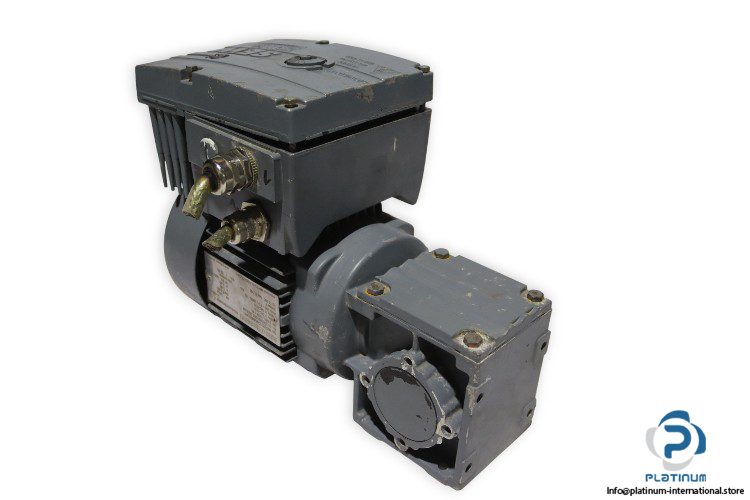

The SEW-Eurodrive W20DT71D4/MM05/BW1 is a high-precision synchronous servo gearmotor built for reliable and efficient motion control. Designed to deliver consistent torque and smooth operation, it is ideal for demanding industrial automation applications, including conveyors, material handling, and machine tools. The compact design and integrated MOVIMOT inverter drive ensure easy installation and superior performance with energy efficiency and control flexibility.
Manufacturer: SEW-Eurodrive
Type: Synchronous Servo Gearmotor
Model: W20DT71D4/MM05/BW1
Part No.: 01.3080891301.0008.04
Series: W20

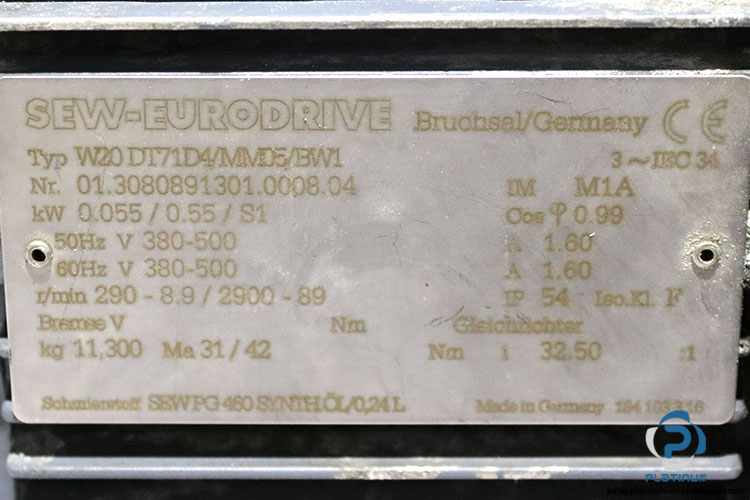

Gear Unit Technical Information
- Gear Unit: W20
- Input Speed [r/min]: 290 – 2900
- Output Speed [r/min]: 8.9 – 89
- Total Ratio: 32.50 / finite
- Output Torque [Nm]: 31 / 42
- Service Factor SEW-FB: 1.30 / 0.95
- Mounting Position: M1A
- Lubricant / Volume [L]: SEW PG 460 Synth. Oil / 0.24 L
- Motor Power [kW]: 0.055 / 0.55
- Cyclic Duration Factor S1-S10: S1
- Multi Range-Voltage 50Hz [V]: 380 – 500
- Multi Range-Voltage 60Hz [V]: 380 – 500
- MM Rated Main Current [A]: 1.60
- MM Rated Output Current [A]: 1.60
- Thermal Class / Enclosure [IP]: F / 54

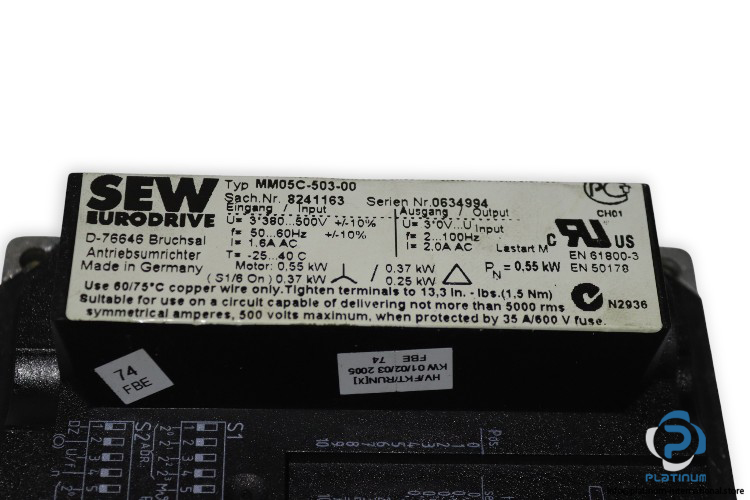

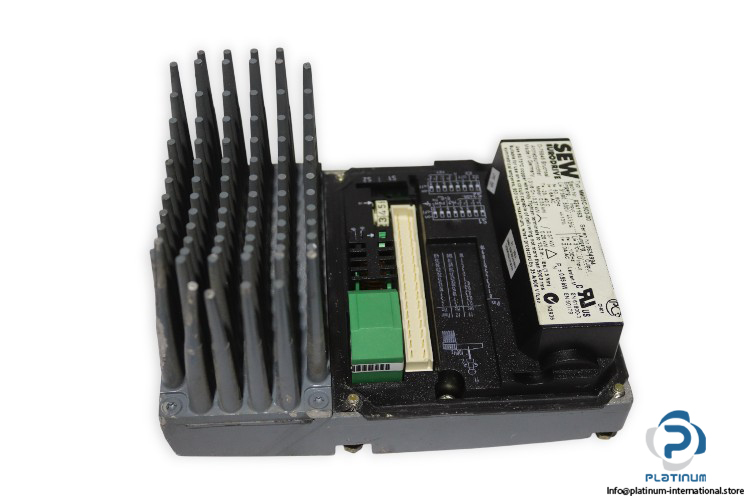

Integrated MOVIMOT Inverter Drive (MM05C-503-00)
- Manufacturer: SEW-Eurodrive
- Model: MM05C-503-00
- Part No.: 8241163
- Serial No.: 0634994
- Input Voltage (Ue): 3 x 380 to 500 V ±10%
- Input Frequency: 50/60 Hz ±10%
- Input Current: 1.6 A
- Output Voltage (Uout): 3 x 0 to 380 – 500 V
- Output Frequency: 2 to 100 Hz
- Output Current: 2.0 A
- Power Range: 0.25 to 0.55 kW
- Temperature Range: -25 °C to +40 °C
- Efficiency Class: IE2/IE3 Ready
- Protection Class: IP20
- Compliance: EN 61800-3, EN 50178, UL & CSA Approved
- Cable Rating: 500 V max., Copper 60/75 °C
Built to meet the highest industrial standards, this SEW-Eurodrive synchronous servo gearmotor provides exceptional efficiency and smooth motion control. With an integrated MOVIMOT inverter, users benefit from simplified wiring, reduced installation space, and precise speed control. Ideal for use in automation lines, robotics, and process machinery requiring reliable continuous duty operation.
