SEW WA20/T DT71D2/TF/MSW/CK0/RA2A Gearmotor
Used
In stock1 unitReady to ship
gearmotor
The SEW WA20/T Gearmotor delivers efficient power transmission with a 14.33 ratio, 0.55 kW motor power, and 23/19 Nm torque for industrial applications.0.55GearboxGearmotorHighhollowIndustrialkWmotorMSW-2S-CK0PowerPrecisionSewshaftSpecificationsTorqueWA20
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

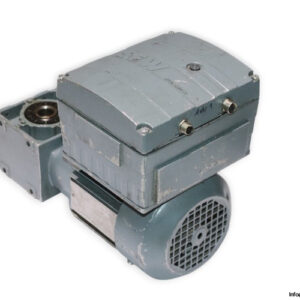

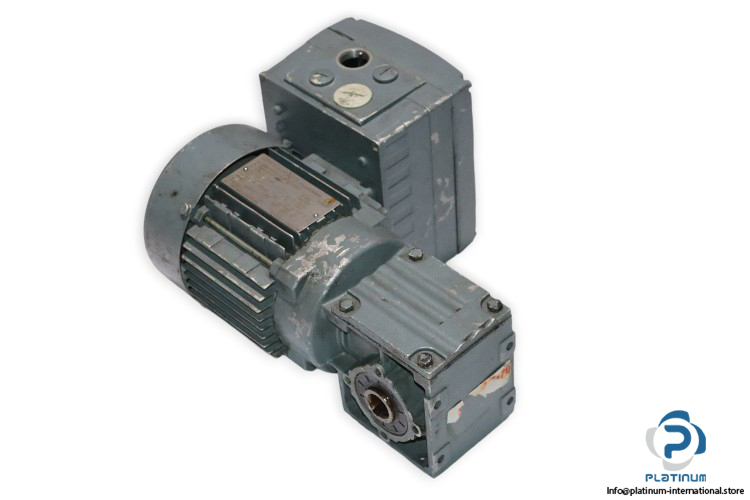

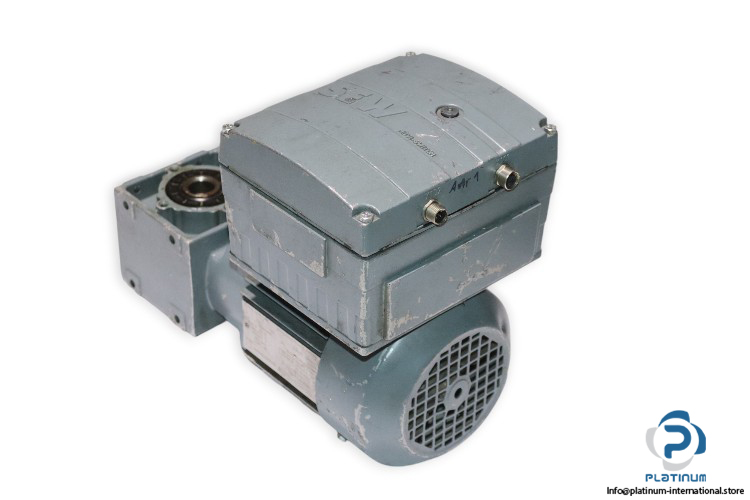

SEW WA20/T GEARMOTOR
The SEW WA20/T GEARMOTOR is a versatile and efficient gearmotor designed for high-performance applications. With a total ratio of 14.33 and various speed options, it provides reliable output torque and power. This motor, coupled with the SEW MSW-2S-CK0 MOVI-SWITCH, ensures precision control and durability in various industrial settings.

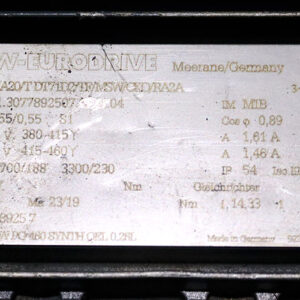

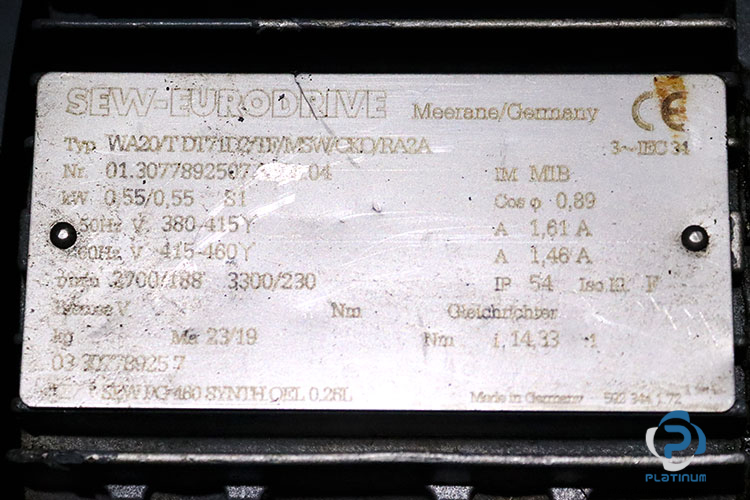

Manufacturer: SEW
Type: GEARMOTOR
Model: WA20/T DT71D2/TF/MSW/CK0/RA2A

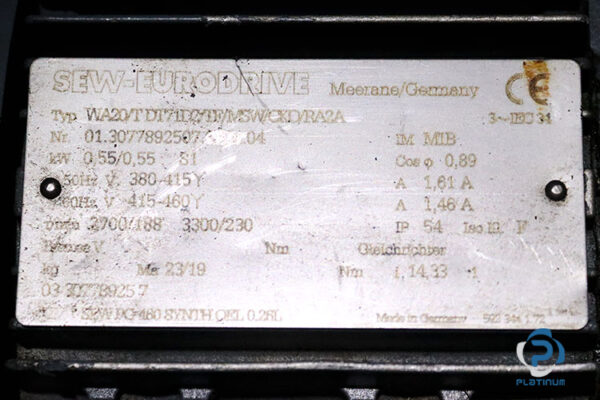

Technical Specifications
- Gear Unit: WA20/T
- Speed [r/min]: 2700 / 188.0, 3300 / 230.0
- Total Ratio: 14.33
- Mounting Position: M1B
- Output Torque [Nm]: 23 / 19
- Service Factor SEW-FB: 1.30 / 1.60
- Lubricant / Volume [l]: SEW PG 460 0.26
- Hollow Shaft: 20mm
- Design: Hollow shaft
- Lubricant Volume [l]: 0.26
- Motor Power [kW]: 0.55 / 0.55
- Cyclic Duration Factor S1-S10: S1
- Motor Frequency [Hz]: 50
- Motor Voltage [V] / Conn. Type: 400 star
- Multi-Range Voltage 50Hz [V]: 380-415 star
- Nominal Current [A]: 1.61 / 0.00
- Multi-Range Voltage 60Hz [V]: 415-460 star
- Nominal Current [A]: 1.46 / 0.00
- Thermal Class [°C] / Enclosure [IP]: F / 54

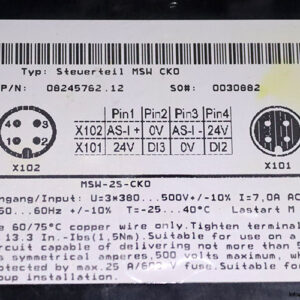

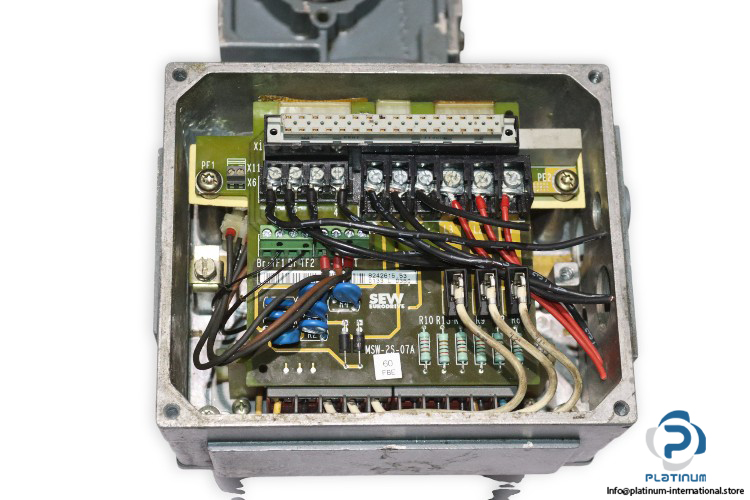

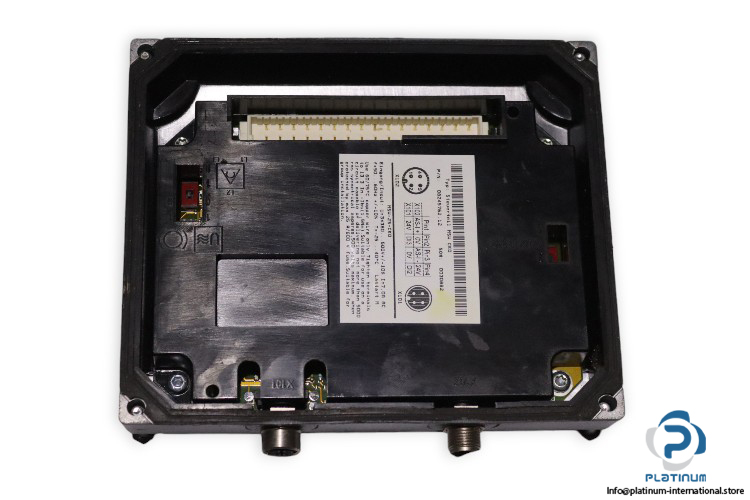

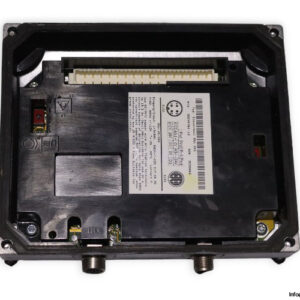

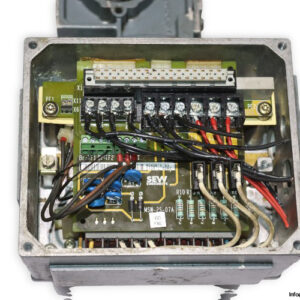

- Attached with: SEW MSW-2S-CK0 MOVI-SWITCH

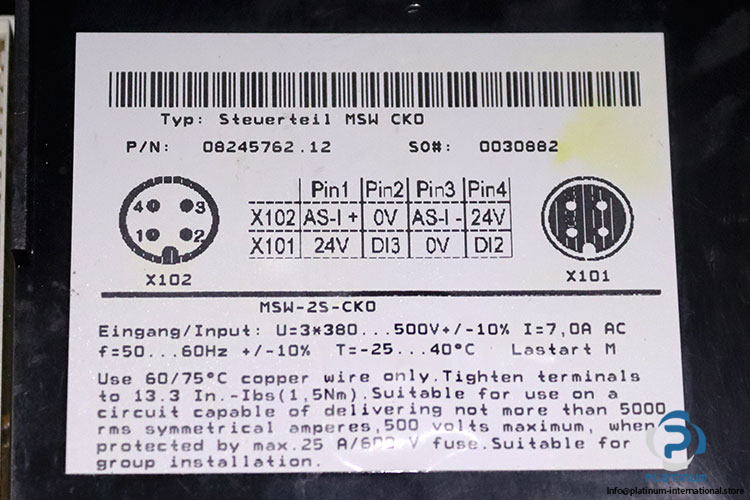

Input
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 7 A
- Frequency: 50 / 60 Hz
