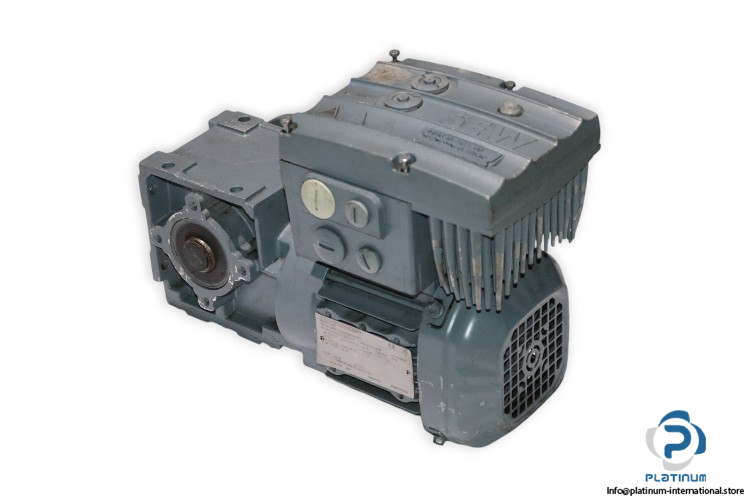

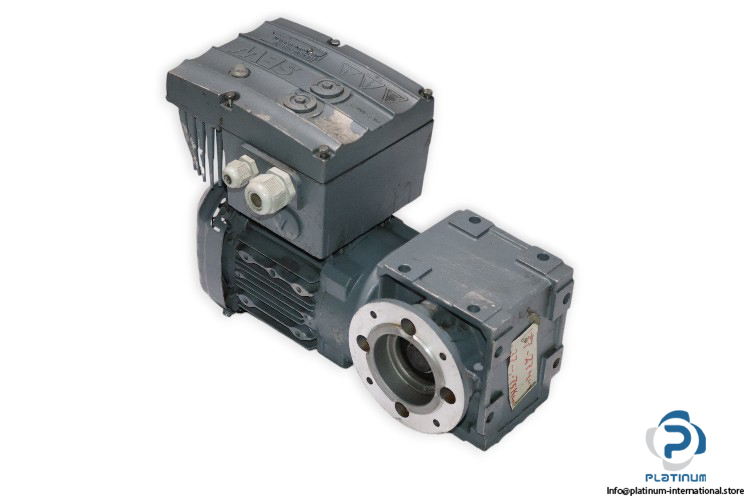

SEW WA30 DRS71S4/MM03/MO Spiroplan Gearmotor

SEW WA30 DRS71S4/MM03/MO SPIROPLAN GEARMOTOR

The SEW WA30 DRS71S4/MM03/MO Spiroplan Gearmotor is designed for high-efficiency operation and reliability in industrial applications. With a total ratio of 10.25, this gearmotor provides optimal performance with various input and output speeds. The unit includes a SEW MM03D-503-00 MOVIMOT Inverter Drive for enhanced control.

Manufacturer: SEW

Type: Spiroplan Gearmotor

Model: WA30 DRS71S4/MM03/MO

Part No: 40.1971610103.0002.14

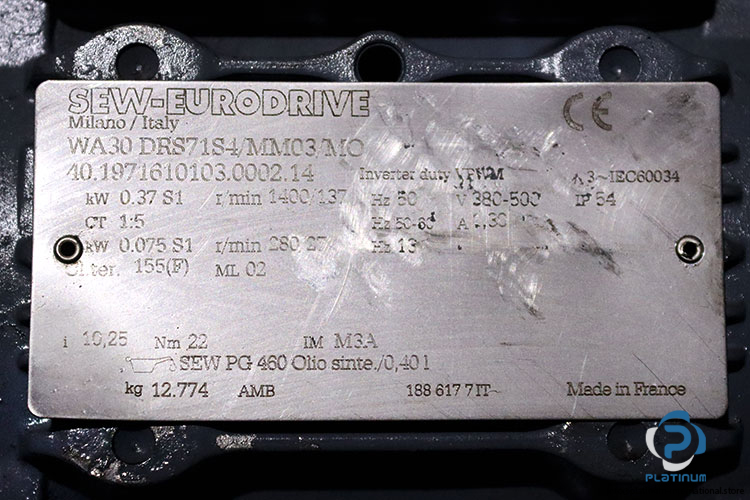

Technical Specifications

• Gear Unit: WA30
• Input Speed [r/min]: 1400 – 280
• Output Speed [r/min]: 137 – 27
• Total Ratio: 10.25
• No. of Teeth Nom./Denominator: 41/4
• Ma Max [Nm]: 50
• Output Torque [Nm]: 22
• Service Factor SEW-FB: 2.20
• Mounting Position: M3A
• Lubricant / Volume [l]: SEW PG 460 Synth.Oil / 0.40
• Hollow Shaft: 20 mm
• Design: Hollow Shaft
• Motor Power [kW]: 0.37 / 0.075
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor S1-S10: S1
• Motor Voltage [V]: 380-500
• Line Frequency [Hz]: 50-60
• MM Rated Main Current [A]: 1.30
• MM Rated O/P Current [A]: 1.60
• Thermal Class/Enclosure [IP]: 155(F) / 54

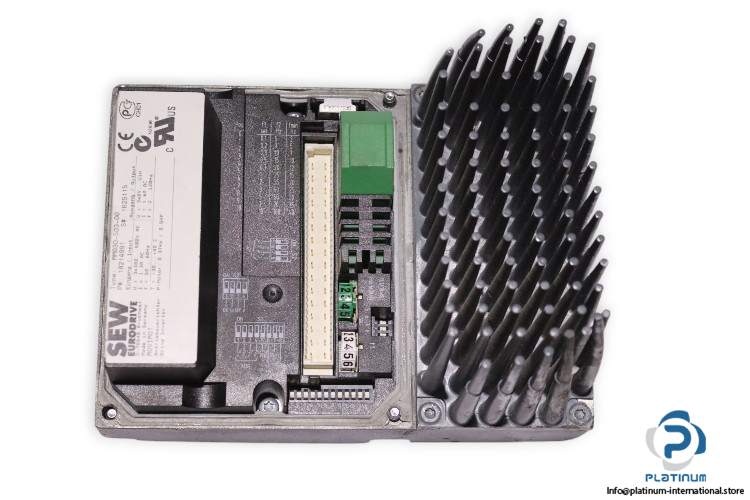

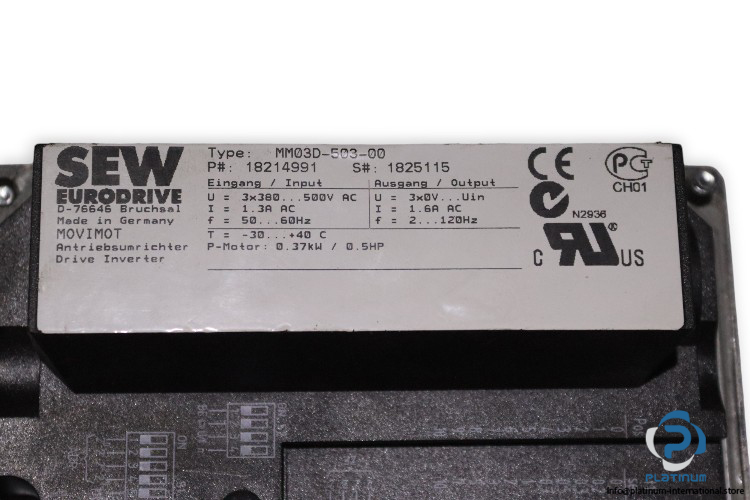

Attached with SEW MM03D-503-00 MOVIMOT Inverter Drive

Input:

• Supply Voltage: 3-Phase 380 / 500 V AC
• Rated Current: 1.3 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 “ 500 V AC
• Rated Current: 1.6 A
• Frequency: 2 / 120 Hz
