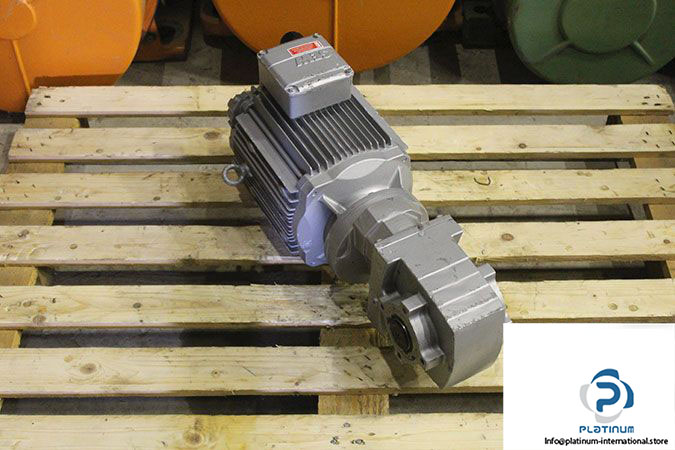

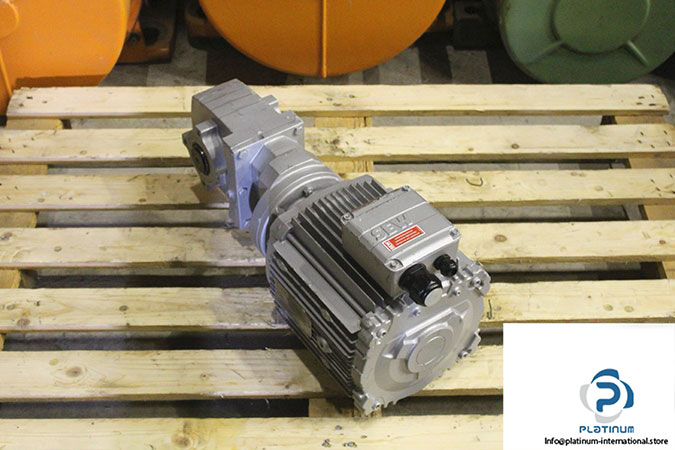

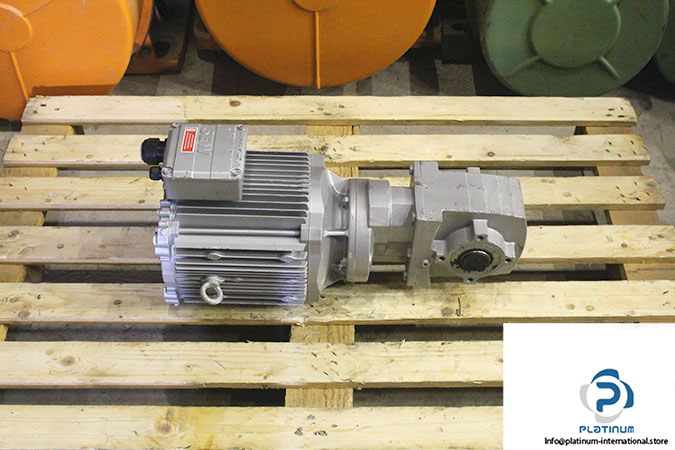

SEW WA47 DRE112M4/TH/OL Spiroplan Gear Unit
Manufacturer: Sew-Eurodrive
Type: Spiroplan Gear Units
Model: WA47DRE112M4/TH/OL

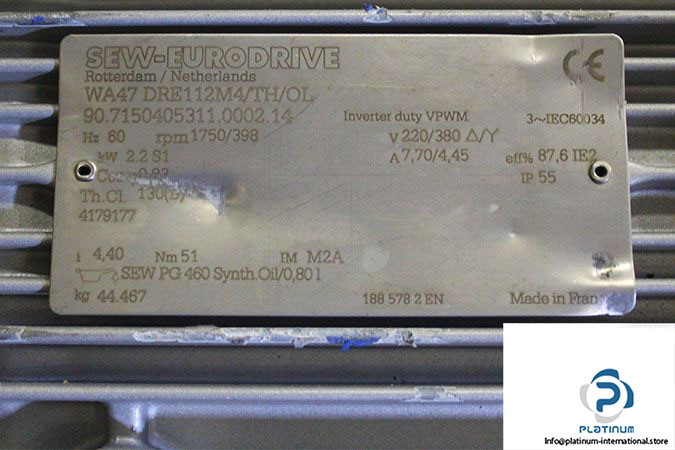

Serial Number: 90.7150405311.0002.14
Speed [r/min]: 1750 / 398
Total Ratio [i]: 4,40 / infinite
Output Torque [Nm]: 51
Service Factor SEW-FB: 2,20
Mounting Position: M2A
Lubricant/-Volume [l]: SEW PG 460 Synth.Oil / 0,80
Hollow Shaft: 30mm
Design: Hollow Shaft
Motor Power [kW]: 2.2
Motor Frequency [Hz]: 60
Cyclic Duration Factor: S1
Motor Voltage [V]/Conn. Type: 220/380 Delta/Star
Rated Current [A]: 7,70 / 4,45
Cos Phi: 0,83
Thermal cl.[°C]/Enclosure [IP]: 130(B) / 55
International Efficiency Class: IE2
Efficiency at 50/75/100% Pn [%]: 89,9 / 89,3 / 87,6
Ventilation: OL = Non-Ventilated, Closed on B-side
Motor Protection: TH = Thermostat
Weight [kg]: 45.4
