SHS 850-5107 SLP1724 230 4A300 Stepper Motor
New
In stock25 unitsReady to ship
59,99$
Stepper Motor
2-phase SHS hybrid stepper motor with 1.8° step angle, 0.8 Nm holding torque, bipolar wiring, and compact design for precision motion control.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

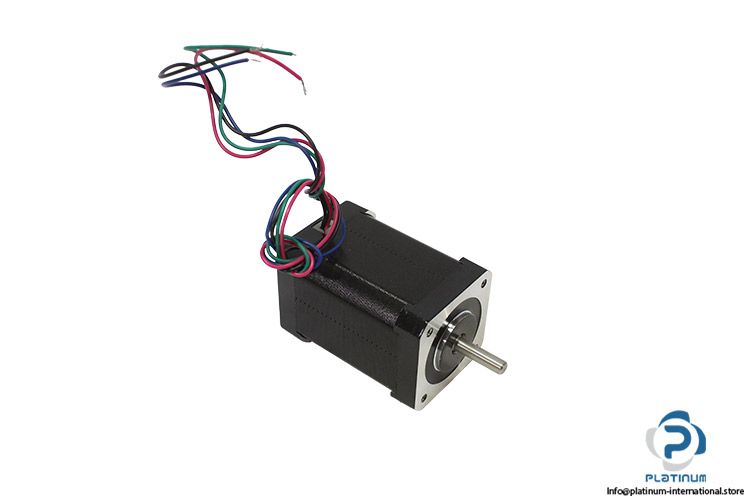

SHS 2 Phase Hybrid Stepper Motor
The SHS hybrid stepper motor is a precision 2-phase motor designed for accurate positioning, stable torque output, and reliable performance in industrial motion control applications.
Manufacturer: SHS
Type: 2 Phase Hybrid Stepper Motor

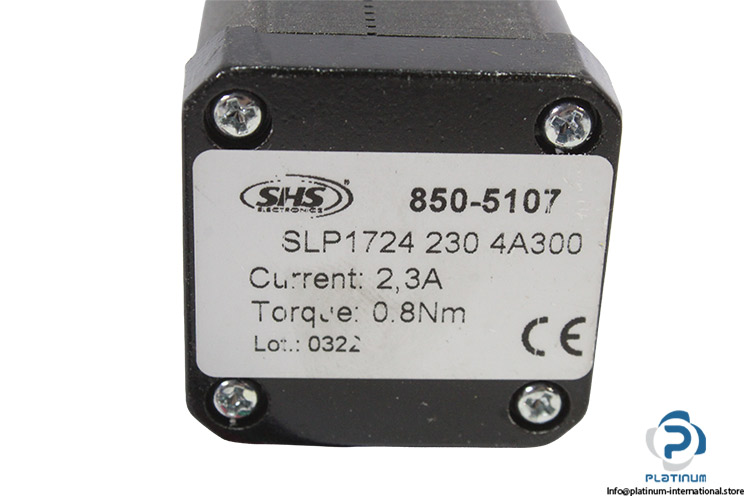

Model: 850-5107 SLP1724 230 4A300
Lot No.: 0322
| Holding Torque | 0.8 Nm |
| Step Angle | 1.8 degree |
| Rated Current | 2.3 A |
| Resistance | 1.5 Ohms |
| Inductance | 2.2 mH |
| Rotor Inertia | 85 g.cm² |
| Motor Length | 63 mm |
| Shaft Diameter | 5 mm |
| Number of Leads | 4 (Bipolar wiring) |
| Shaft Radial Play | 0.02 Max. (450 g-load) |
| Shaft Axial Play | 0.08 Max. (450 g-load) |
| Temperature Rise | 80 °C Max |
| Ambient Temperature | -20 to +50 °C |
