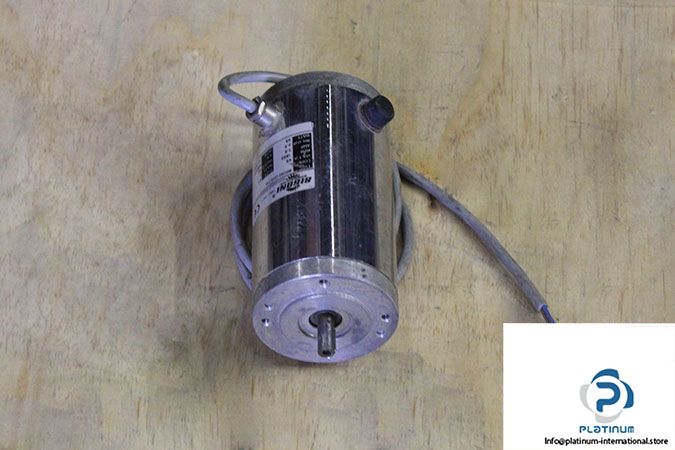

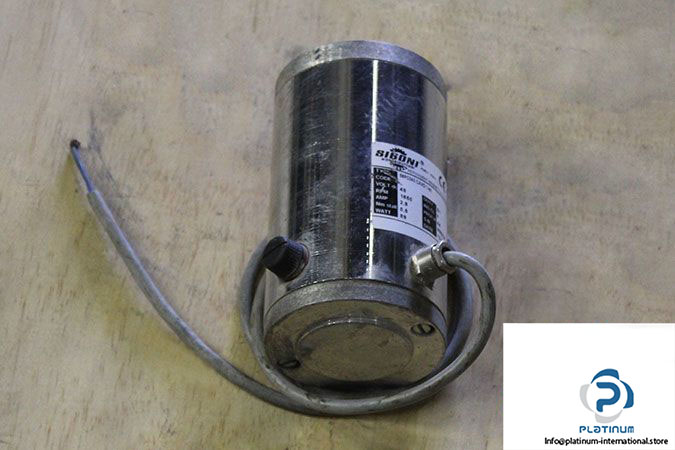

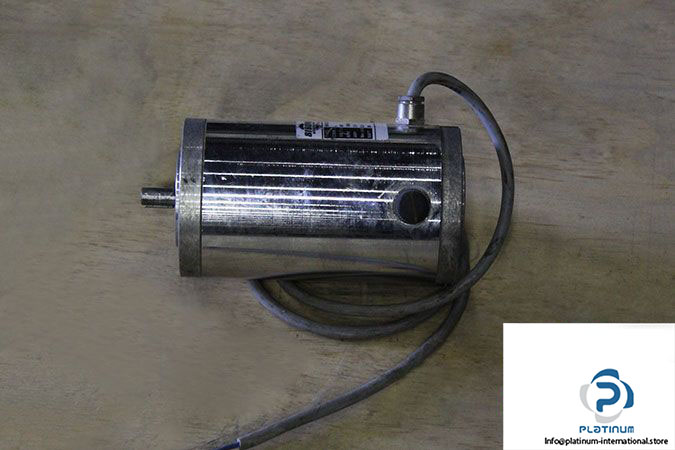

Siboni 56PC043 Cavo 1 Permanent Magnets DC Motor

Manufacturer: SIBONI

Type: Permanent Magnets DC Motor

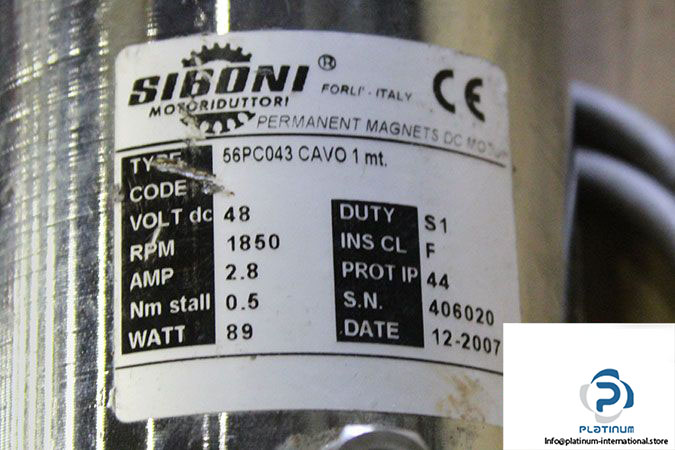

Model: 56PC043 CAVO 1 mt.

Rated Voltage: 48 VDC

Rated Current: 2.8 A

Rated Speed: 1850 min^-1

Resistance: 2.98 Ω

Rated Power: 89 W

Rated Torque: 0.46 Nm

Stall Torque: 0.5 Nm

Torque Constant: 0.165 Nm/A

Rated Temperature: 0…40 °C

Duty: S1

Insulation Class: F

Protection Class: IP44
