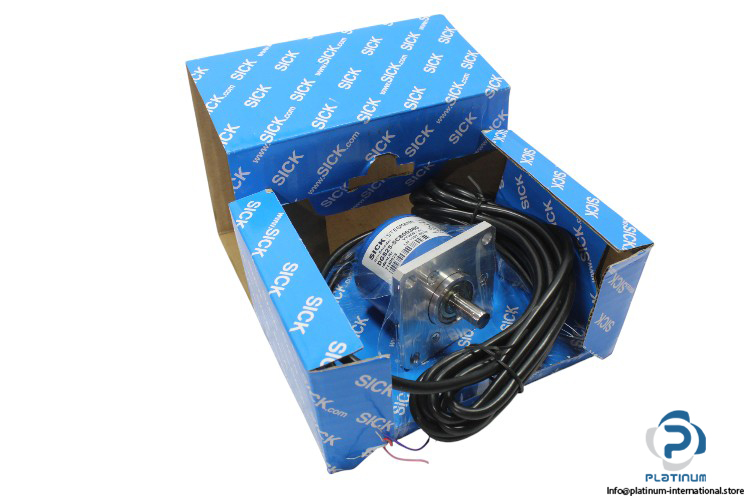

Sick DGS25-5C800360 Incremental Encoder
New
Available on request
Incremental Encoder
The Sick/Stegmann DGS 25-5C800360 is a precision incremental encoder with 360 PPR resolution and a square flange design. Offering a wide voltage range, IP66 protection, and high-speed operation, it is ideal for industrial motion control systems.25-5C8003603607-PinAxialConnectorDGSEncoderFlangeHigh-SpeedHTLIncrementalIndustrialPPRSickSquareStegmann
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Sick/Stegmann DGS 25-5C800360 “ Incremental Encoder
The Sick/Stegmann DGS 25-5C800360 incremental encoder offers high precision in motion control applications. With a 360 pulse per revolution (PPR) resolution, it is designed to meet demanding industrial standards, providing reliable feedback for position and speed measurement systems.
Manufacturer: Sick/Stegmann
Type: Incremental Encoder

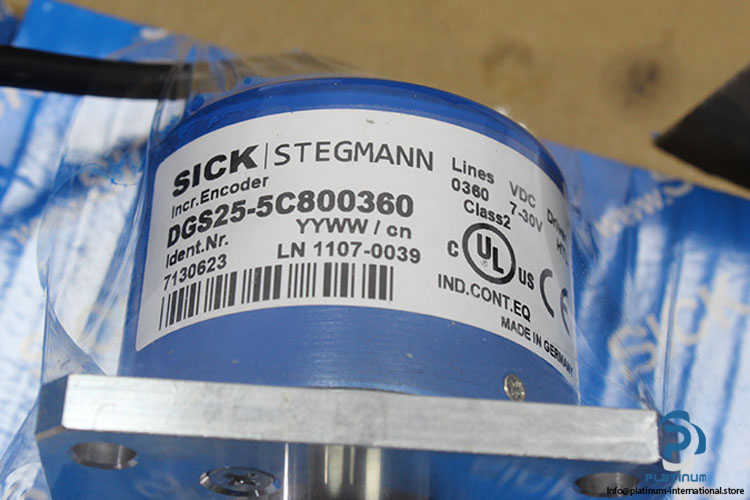

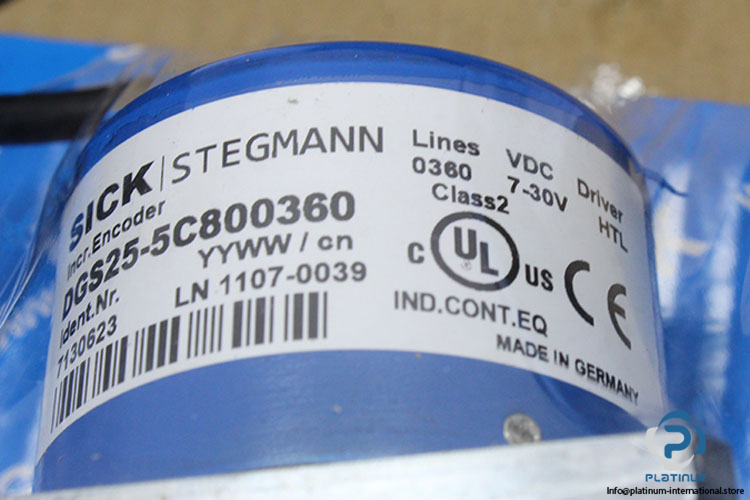

Model: DGS 25-5C800360
ID. No.: 7130623
Ref. Code: LN 1107-0039

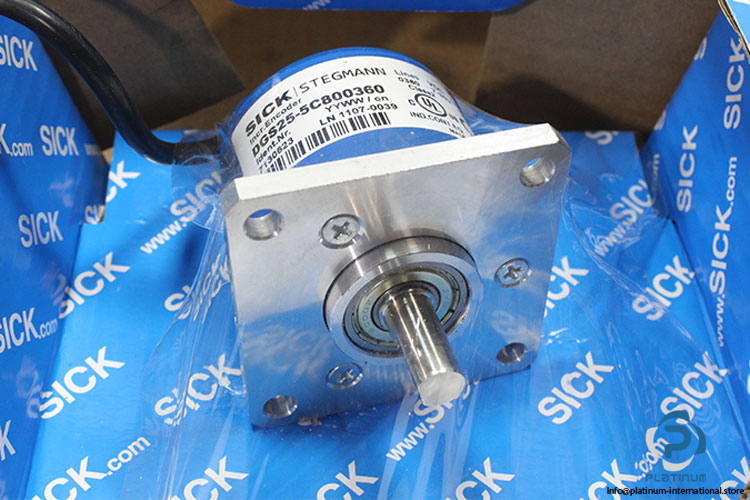

| Flange Type | Square Flange |
| Shaft Type | Solid Shaft |
| Voltage Range | 7 to 30 V DC |
| Operating Current Range at No Load | 120 mA |
| Shaft Diameter | 10 mm |
| Resolution | 360 pulse per revolution (PPR) |
| Electrical Interfaces | Line drivers (HTL) |
| Connection | Axial Connector MS 7-pin |
| Protection Class | IP66 |
| Max. Output Frequency | 200 kHz |
| Max. Operating Speed | 3,000 rpm |
| Max. Shaft Loading | 3,000 rpm |
| Reduced Shaft Loading | 5,000 rpm |
| Startup Torque | With shaft seal: 5 oz-in (3.5 Ncm); Without shaft seal: 1.5 oz-in (1.1 Ncm) |
| Working Temperature Range | 0 to 70 °C |
