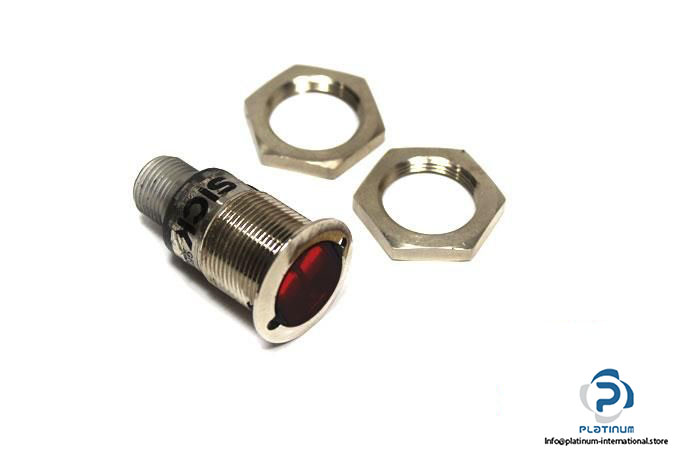

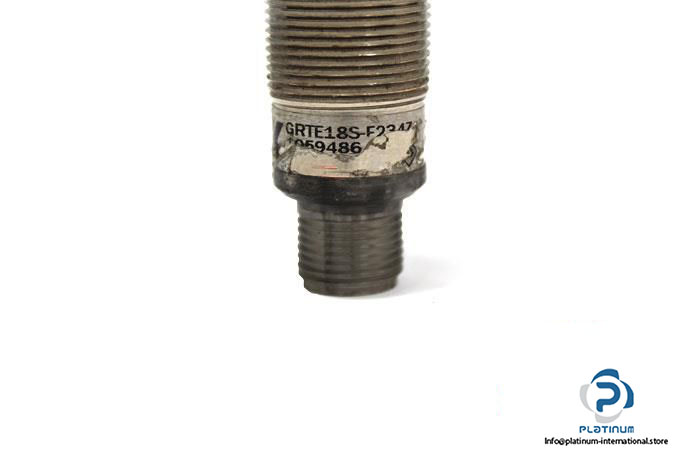

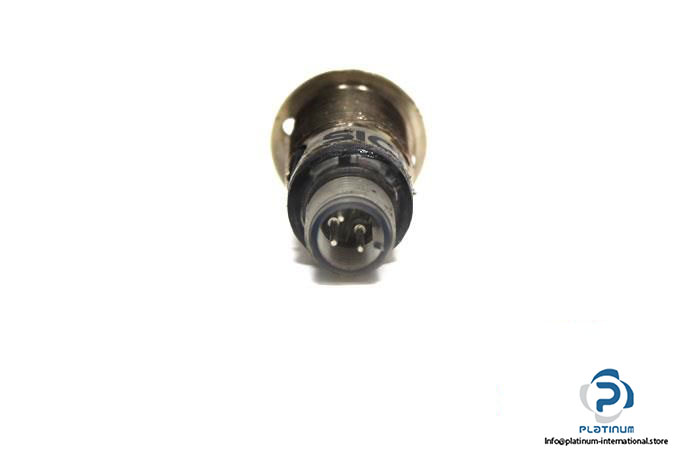

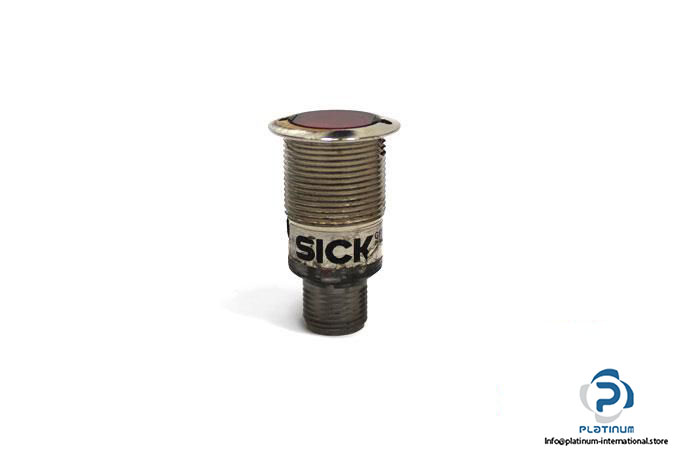

Sick GRTE18S-F234Z Photoelectric Proximity Sensor

Manufacturer: SICK

Type: PHOTOELECTRIC PROXIMITY SENSOR, ENERGETIC

Model: GRTE18S-F234Z

Part No: 1059486

Sensing Range max.: 5 … 550 mm

Sensing range: 10 … 400 mm

Response time: < 1,000 µs
Operating Voltage: 10 … 30 V DC

Output current: 100 mA

Switching frequency: 500 Hz

Rated operating current: 100 mA

Electrical design: PNP

Output Function: Dark switching

Type of light: Visible red light

Light spot diameter (distance): Ø 9 mm (400 mm)

Wave length: 650 nm

Adjustment: Potentiometer, 270°

Connector type: M12 Connector, 3-pin

Protection Class: III

Enclosure rating: IP67

Housing: Threaded type

Housing design (light emission): Straight, fully flush

Ambient Operating temperature: -25 … 55°C

Diameter, Housing length: 18 , 38.1 mm

Housing material: Nickel-plated brass and ABS

Optics material: PMMA

Mounting: Fully flush

Supplied Accessories: 2 lock nuts

Condition: Used
