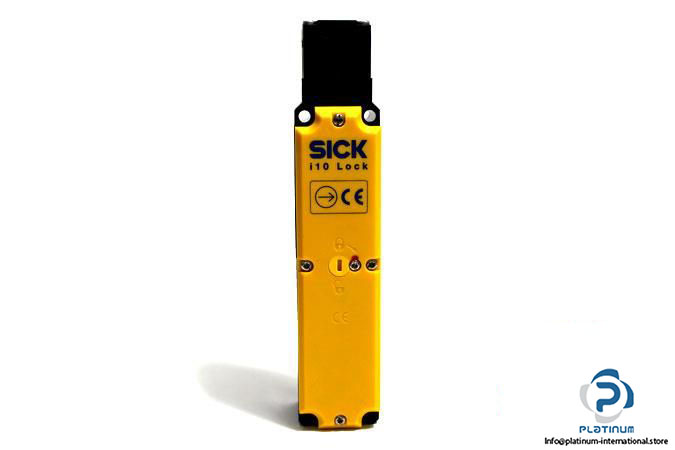

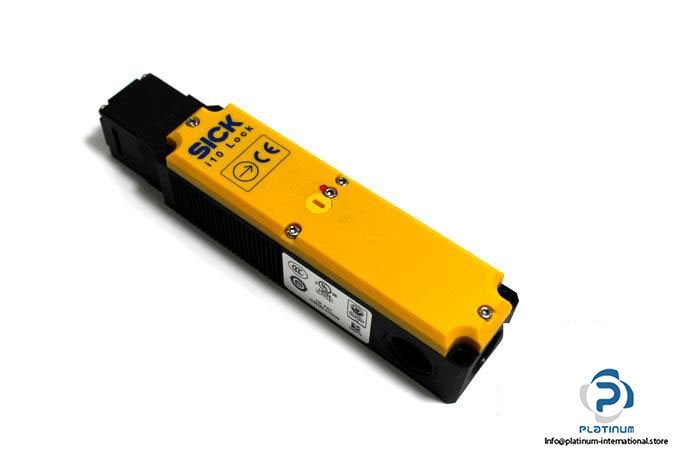

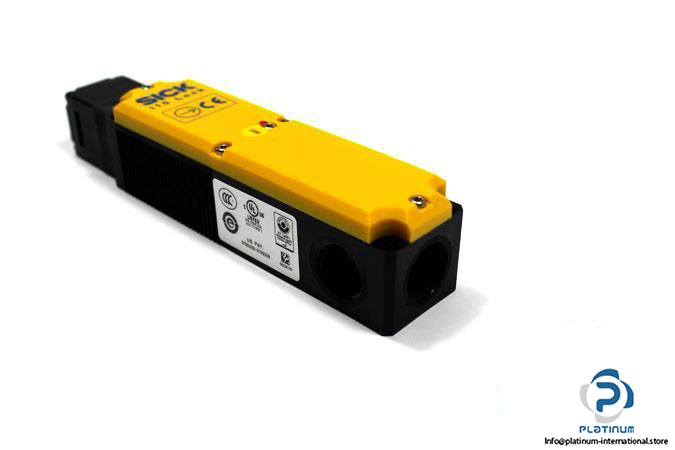

Sick I10-M0233 Safety Locking Device

Manufacturer: SICK

Type: SAFETY LOCKING DEVICE

Model: I10-M0233

Part No.: 6022580

Number of positive action N/C solenoid monitoring contacts: 2

Number of N/O solenoid monitoring contacts: 1

Number of N/C door monitoring contacts: 1

Locking force F_max: 1,300 N

Locking force F_zh: 1,000 N

Actuation force: ≥ 10 N

Actuation frequency: ≤ 7,000 /h

Actuation directions: 4

Actuation version: ≤ 20 m/min

Rated insulation voltage U_i: 250 V

Rated operating current (voltage): 4 A (230 V AC),4 A (24 V DC)

Solenoid operating voltage: 24 V AC/DC

Power consumption: ≤ 8 W

Type of output: Electro-mechanical contacts

Locking principle: Power to release

Connector type: Cable gland, 3 x M20

Enclosure rating: IP67

Ambient Operating temperature: -20 … 55°C

Dimensions: 40 x 42 x 144 mm

Housing: Rectangular

Housing material: Glass-fiber reinforced thermoplastic

Weight: 0.46 kg

Condition: New
