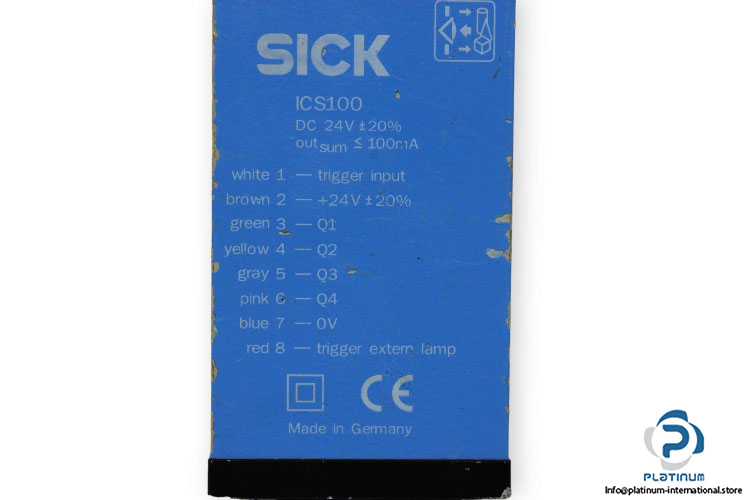

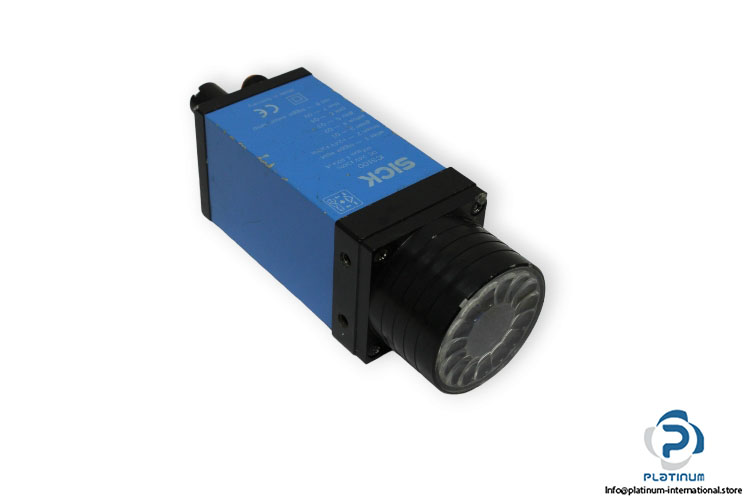

Sick ICS100-B1111 Intelligent Camera Sensor With Coaxial Ring Light

Manufacturer: SICK
Type: Intelligent Camera Sensor With Coaxial Ring Light
Model: ICS100-B1111
Part No.: 1022631

Scanning Range: 70 mm/20 x 20 mm²
Flash time for LED lighting: Adjustable, 50 μs to 1300 μs
Colour of light/Filters: Green (Filter: 450 … 550 nm)
Image sensor: CMOS; 512 x 512 pixels
Operating Voltage: 24 V DC
Electrical Design: PNP/NPN
Response time/cycle time: ≥ 2.5 ms
Trigger input: Falling edge

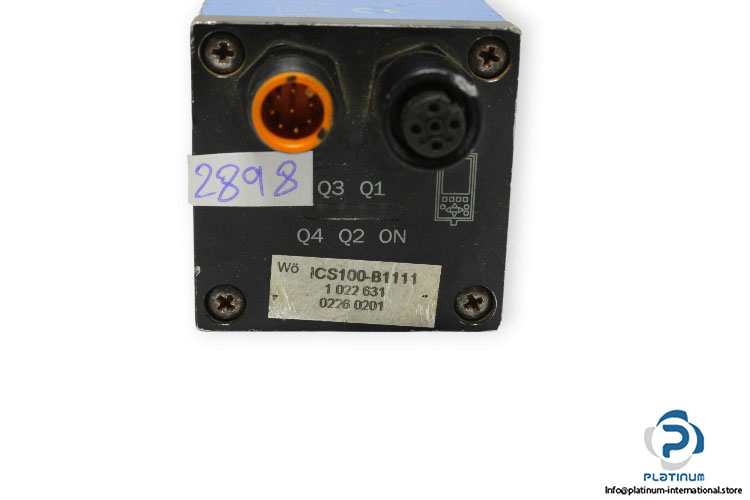

I/O + UV connection: M12, 8-pin
VSC – ICS connection 9): M12, 5-pin
Operating Temperature: 0 … 50°C
