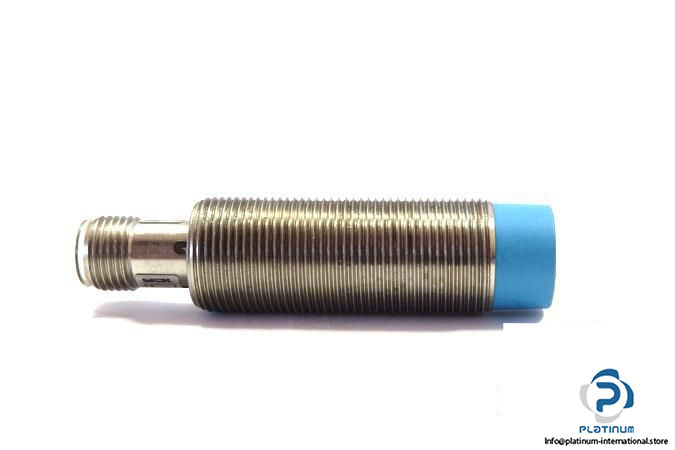

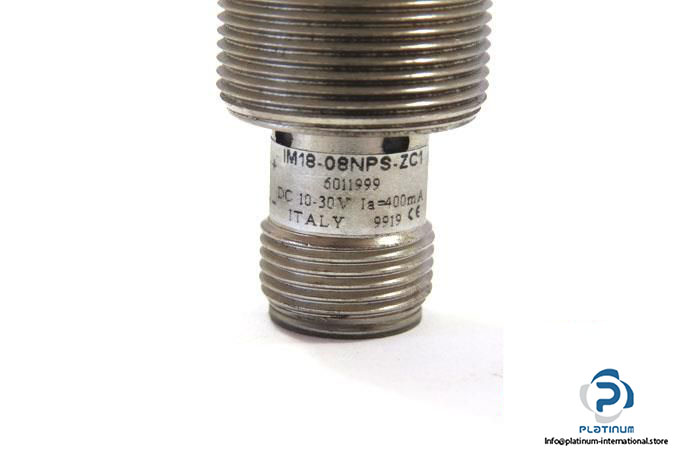

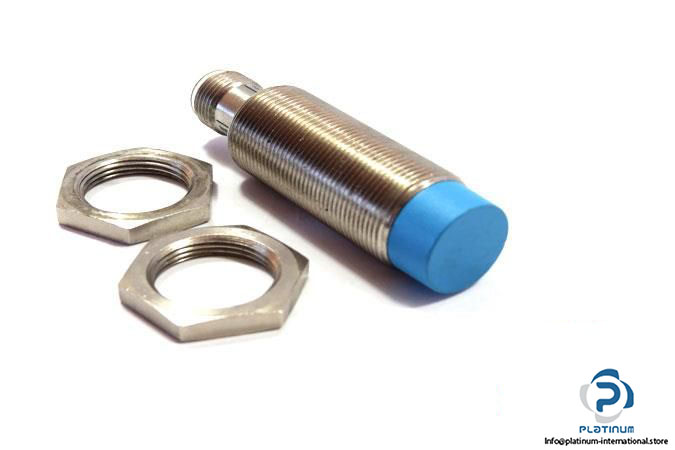

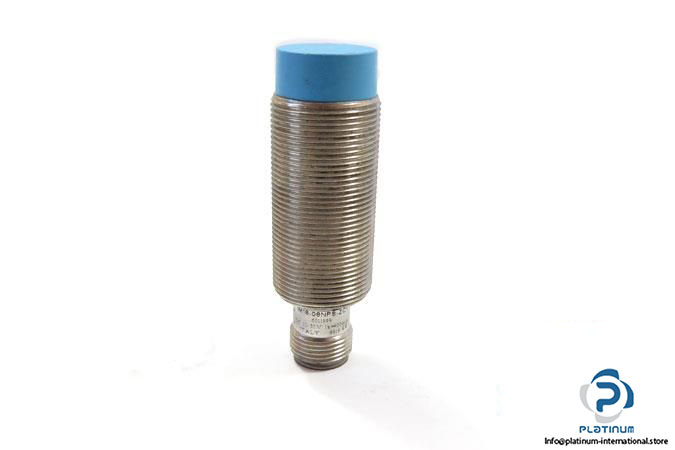

Sick IM18-08NPS-ZC1 Inductive Proximity Sensor

Manufacturer: SICK

Type: INDUCTIVE PROXIMITY SENSOR

Model: IM18-08NPS-ZC1

Part No.: 6011999

Sensing range: 8 mm

Safe sensing range: 4.05 mm

Time delay before availability: ≤ 100 ms

Supply Voltage: 10 … 30 V DC

Current consumption (without load): 20 mA

Continuous current I_a: 400 mA

Power Consumption (without load): 10 mA

Voltage Drop: 1 V

Switching Output: PNP

Output function: Normally open

Switching Frequency: 600 Hz

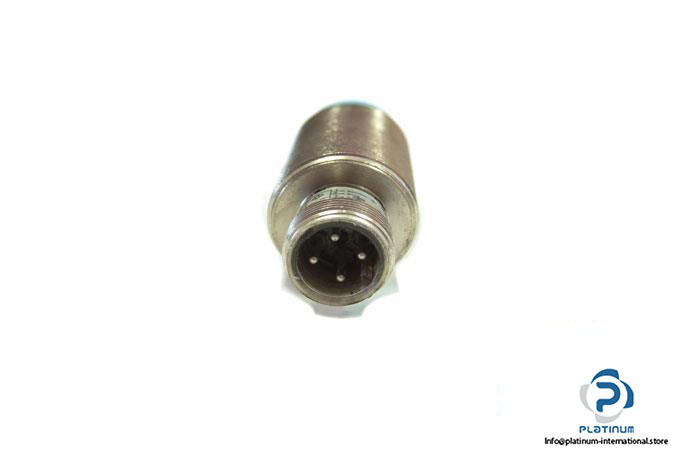

Connection type: M12 male connector, 4 pin

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Material: Metal, Nickel-plated brass

Mounting: Non-flush mountable

Housing: Cylindrical thread

Thread size: M18 x 1

Diameter: 18 mm

Housing, thread length: 64, 40 mm

Condition: Used
