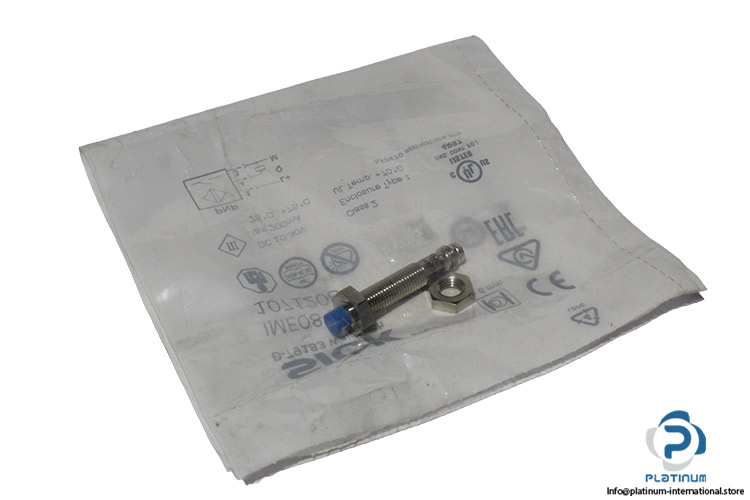

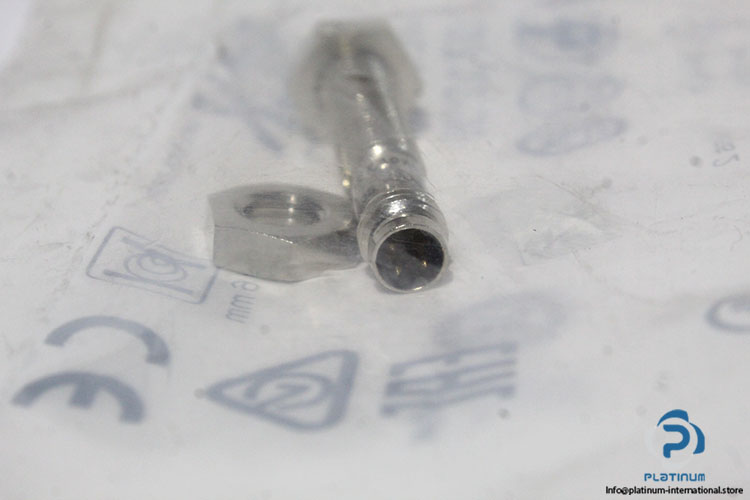

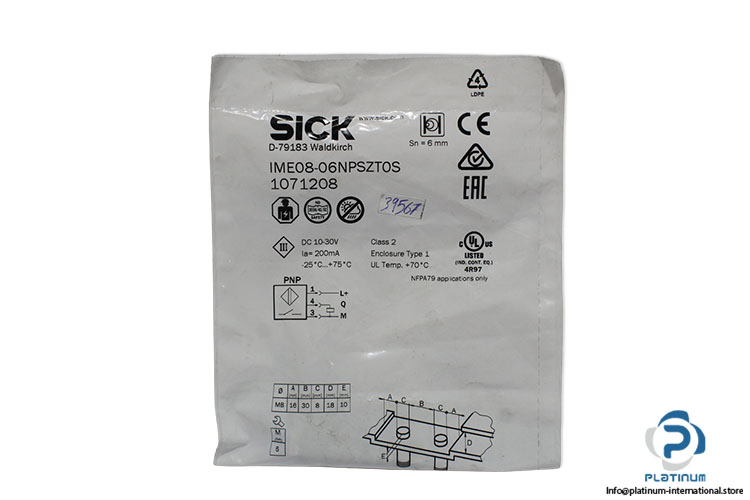

Sick IME08-06NPSZT0S Inductive Proximity Sensor

In stock5 unitsReady to ship

INDUCTIVE Proximity Sensor SICK photoelectric proximity sensor with PNP normally open output, 6 mm sensing range, and compact M12 design for reliable industrial object detection.

Manufacturer
SICK
SKU
1100984
Category
Sensors
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Part No.1071208
Class2
Supply voltage10 V DC ... 30 V DC
Ripple10 %
Voltage drop2 V
Time delay before availability50 ms
Hysteresis1 % ... 15 %
Reproducibility5 %
Temperature drift (of Sr)± 10 %
EMC According toEN 60947-5-2
Continuous current Ia200 mA
Current consumption, no load10 mA
HousingCylindrical thread design
Thread sizeM8 x 1
Diameter8 mm
Sensing rangeSn 6 mm
Safe sensing rangeSa 4.86 mm
Installation typeNon-flush
Switching frequency500 Hz
Connection typeConnector M8, 3-pin
Switching outputPNP
Output functionNO
Electrical wiring DC3-wire
Enclosure ratingIP67
Special featuresTriple sensing range
Ambient operating temperature–25 °C ... +75 °C
Housing materialBrass, nickel-plated
Sensing face materialPlastic, PA 66
Housing length50 mm
Thread length30 mm
Tightening torque, max.5 Nm
Stock keyCON003
ConditionNew
SKU1100984
Weight0,02
