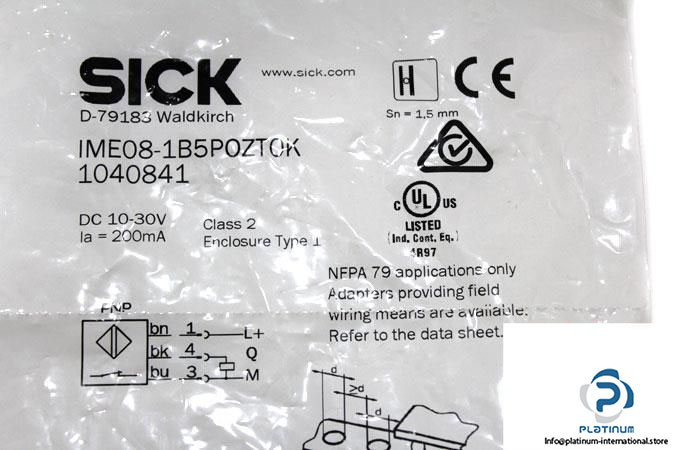

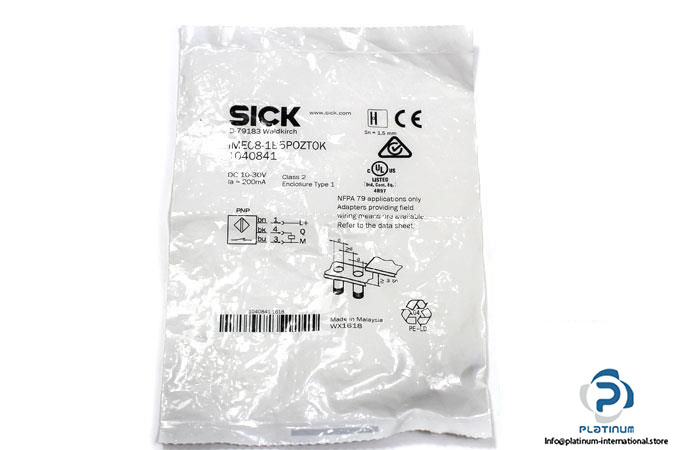

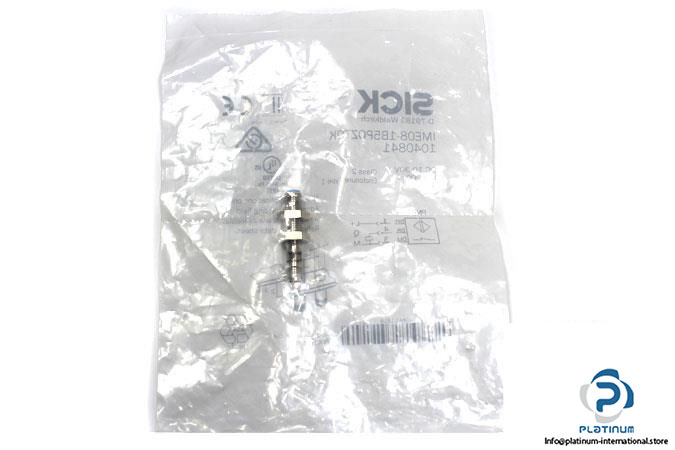

Sick IME08-1B5POZT0K Inductive Proximity Sensor

Manufacturer:  SICK

Type: INDUCTIVE PROXIMITY SENSOR

Model: IME08-1B5POZT0K

Part No.: 1040841

Sensing range: 1.5 mm

Operating Voltage: 10 … 30 V DC

Ripple: 10%

Continuous current: 200 mA

Current consumption: 10 mA

Switching frequency: 4000 Hz

Switching output: PNP

Switching mode: Normally closed

Time delay before availability: 100 ms

Connector type: Connector M8, 3-pin

Enclosure rating: IP67

Ambient Operating temperature: -25 … 75°C

Diameter, housing length: 8, 41 mm

Housing: Threaded type

Housing material: Metal, Nickel-plated brass

Sensing face material: Plastic, PA 66

Mounting: Flush-mountable

Condition: New
