Sick IME12-08NPSZC0S Inductive Proximity Sensor

In stock4 unitsReady to ship

60,00$

Inductive Proximity Sensor SICK IME12-08NPSZC0S inductive proximity sensor with M12 housing, 8 mm sensing range, PNP output, IP67 protection, and high switching frequency for industrial automation applications

Manufacturer
SICK
SKU
692766
Category
Sensors
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Part No.1040780
Class2
HousingMetric
Housing Standarddesign
Thread sizeM12 x 1
Diameter12 mm
Sensing rangeSn 8 mm
Safe sensing range Sa6.48 mm
Installation typeNon-flush
Switching frequency2,000 Hz
Connection typeMale connector M12, 4-pin
Switching outputPNP
Switching output detailPNP
Output functionNO
Electrical wiringDC 3-wire
Enclosure ratingIP67
Items suppliedMounting nut, brass, nickel-plated
Supply voltage10 V DC ... 30 V DC
Ripple= 10 %
Voltage drop= 2 V 1
Time delay before availability= 100 ms
Reproducibility= 2 %
Temperature drift (of Sr)± 10 %
EMC According toEN 60947-5-2
Continuous current Ia200 mA
No load current10 mA
Shock and vibration resistance30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
Ambient operating temperature–25 °C ... +75 °C
Housing materialBrass, nickel-plated
Sensing face materialPlastic, PA 66

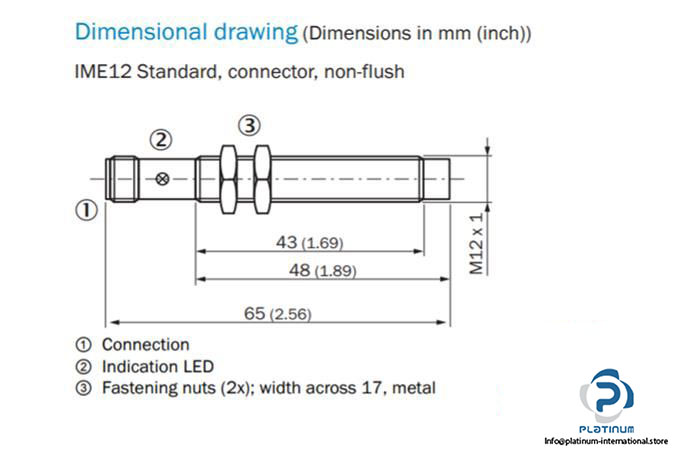

Housing length65 mm
Thread length43 mm
Tightening torque, max.= 12 Nm
Stock KeyCON003
ConditionNew
SKU692766
Weight0,09
