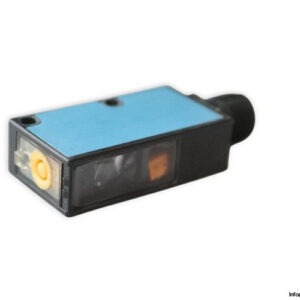

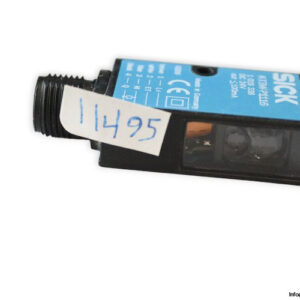

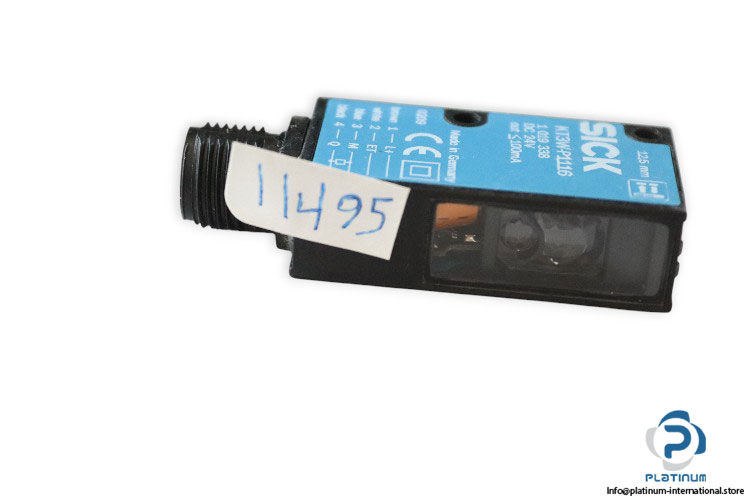

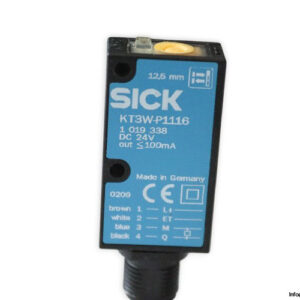

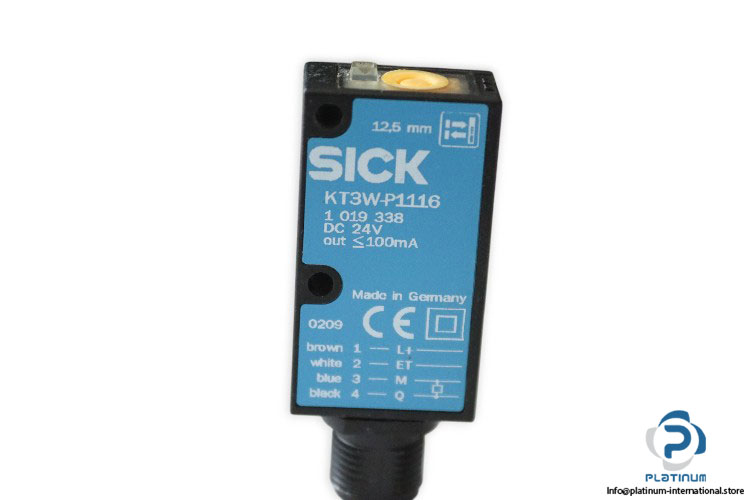

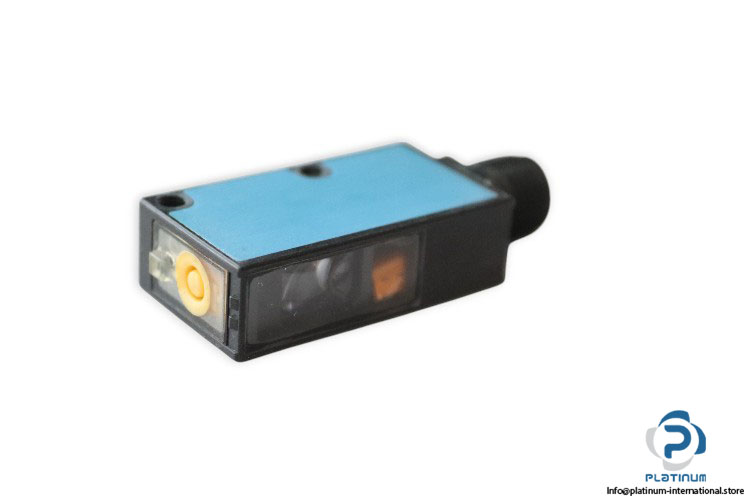

Sick KT3W-P1116 Contrast Sensor

Manufacturer: SICK
Type: Contrast Sensor
Model: KT3WP1116
Part No.: 1019338 / 1439

Sensing Range: 12.5 mm
Housing Design (Light Emission): Rectangular
Operating Voltage: 12 … 24 V DC
Rated Load Current: 100 mA
Switching Output: PNP

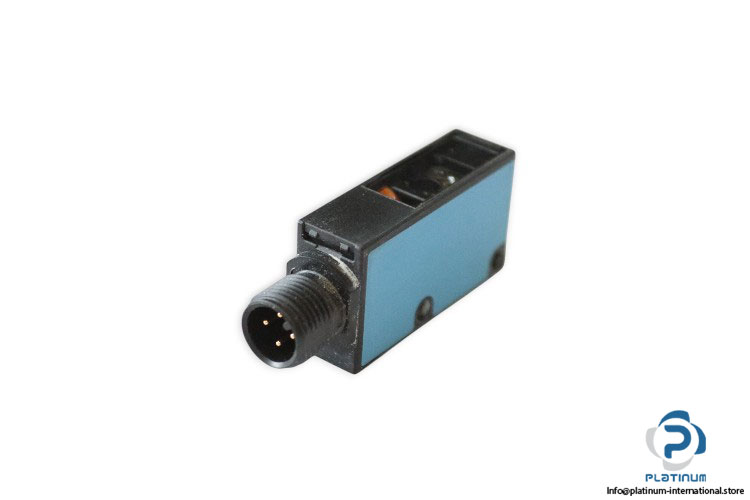

Connection Type: Male Connector M12, 4-Pin
Light Spot Direction: Vertical
Housing Material: Plastic, ABS
Light Source: LED, RGB
Wave Length: 470 / 525 / 640 nm
Light Spot Size: 1.5 x 6.5 mm
Protection Class: IP67
Operating Temperature: -10 … 55 °C
Dimensions (W x H x D): 12 x 40 x 22 mm
