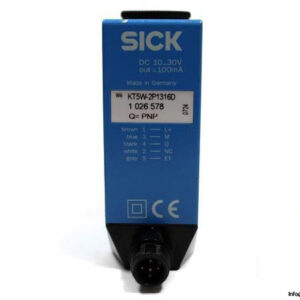

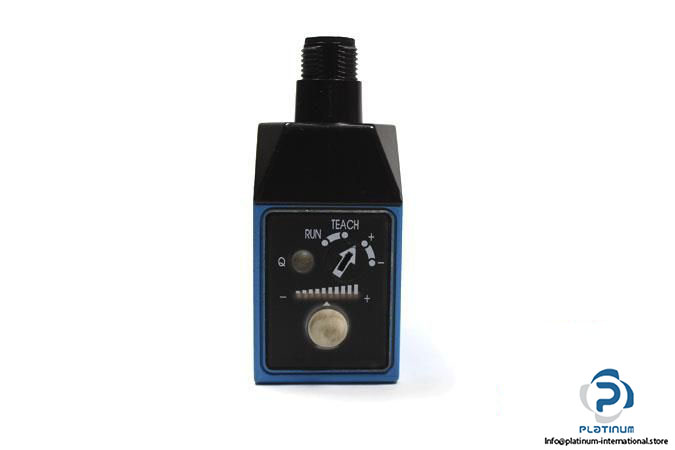

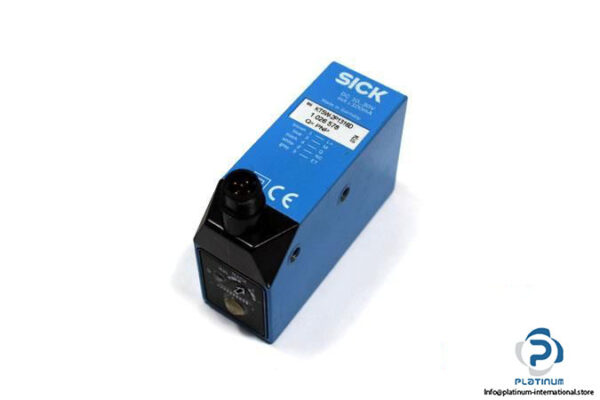

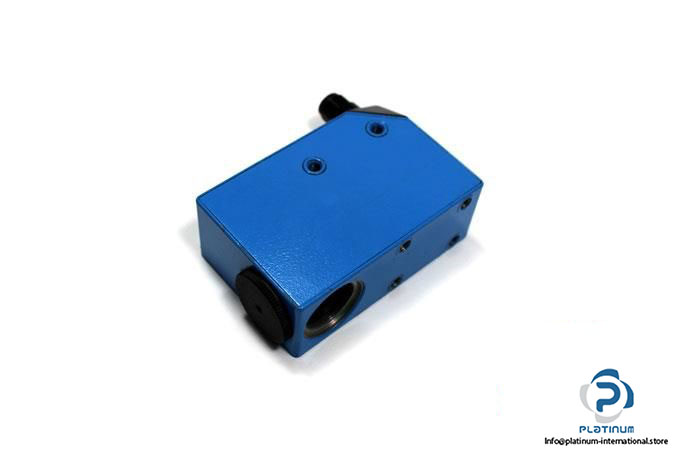

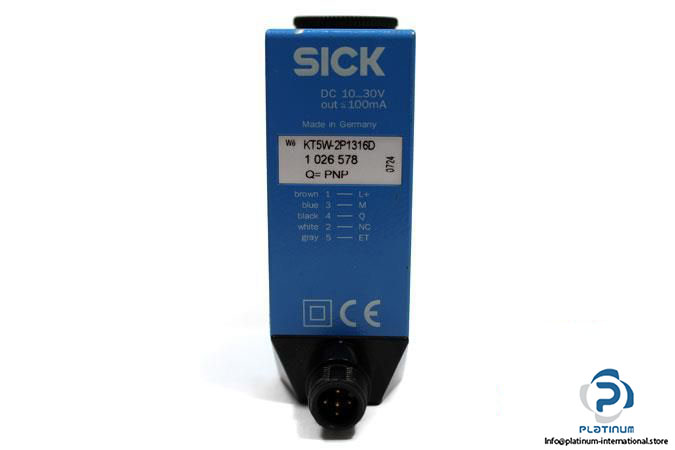

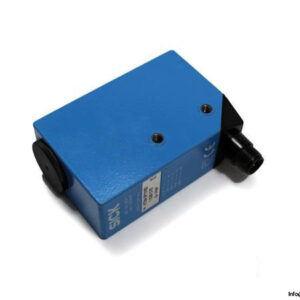

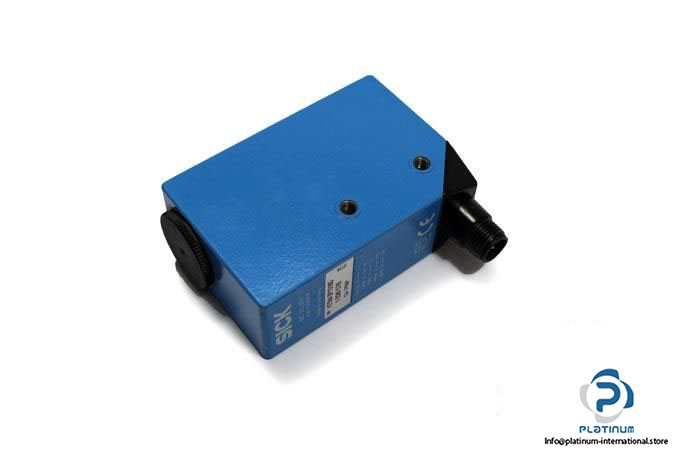

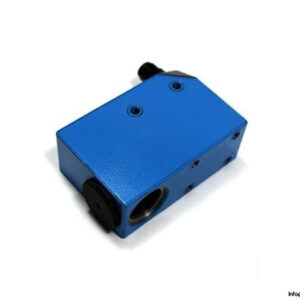

Sick KT5W-2P1316D Contrast Sensor

Manufacturer:  SICK

Type: CONTRAST SENSOR

Model: KT5W-2P1316D

Part No.: 1026578

Sensing Distance: 40 mm

Sensing distance tolerance: ± 3 mm

Response time: 50 µs

Operating Voltage: 10 … 30 V DC

Ripple: ≤ 5 V_pp

Power consumption: ≤ 130 mA

Output current: 100 mA

Switching frequency: 10 kHz

Switching output: PNP

Retention time (ET): 25 ms, non-volatile memory

Wave length: 470 nm, 525 nm, 640 nm

Light spot size: 1.1 mm x 4.2 mm

Light spot direction: Vertical

Adjustment: Teach-in button

Connector type: Male connector M12, 5-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -10 … 55°C

Dimensions: 30.4 x 53 x 80 mm

Housing: Rectangular

Housing material: Metal, Zinc diecast

Weight: 400 g

Supplied items: mounting bracket

Condition: Used
